Ammortizzatori Sospensione Assetto Regolabil compatibile per VW MK5 MK6 RABBIT/JETTA/GTI/R32 2003-2012 Lowering Kit

Introduction

maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Application

Compatibile per VW Golf MK5 A5 Typ 1K 2003-2008
compatibile per VW Jetta MK5 A5, Typ 1K5 2006-2011
compatibile per VW Golf MK6 A6 Typ 5K 2008-2012
compatibile per VW B6 Passat 2006-2010
compatibile per VW EOS 2007-2014
compatibile per VW CC 2009-2014
compatibile per VW Tiguan 2009-2014
compatibile per VW Beetle 2012-2014
compatibile per Audi A3 8P (Compatibile per FWD) 2006-2014
compatibile per Audi TT 8J (Compatibile per FWD) 2006-2014

Specification

Top mounts: Front and rear OE top mounts required
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front: 5 kg/mm (280lbs/in)
Spring Rate Rear: 3.5 kg/mm (196lbs/in)
Spring length Front: 245 mm
Spring length Rear: 239 mm
Spring Preload advised: 7-10 mm
Color: Silver body with golden spring

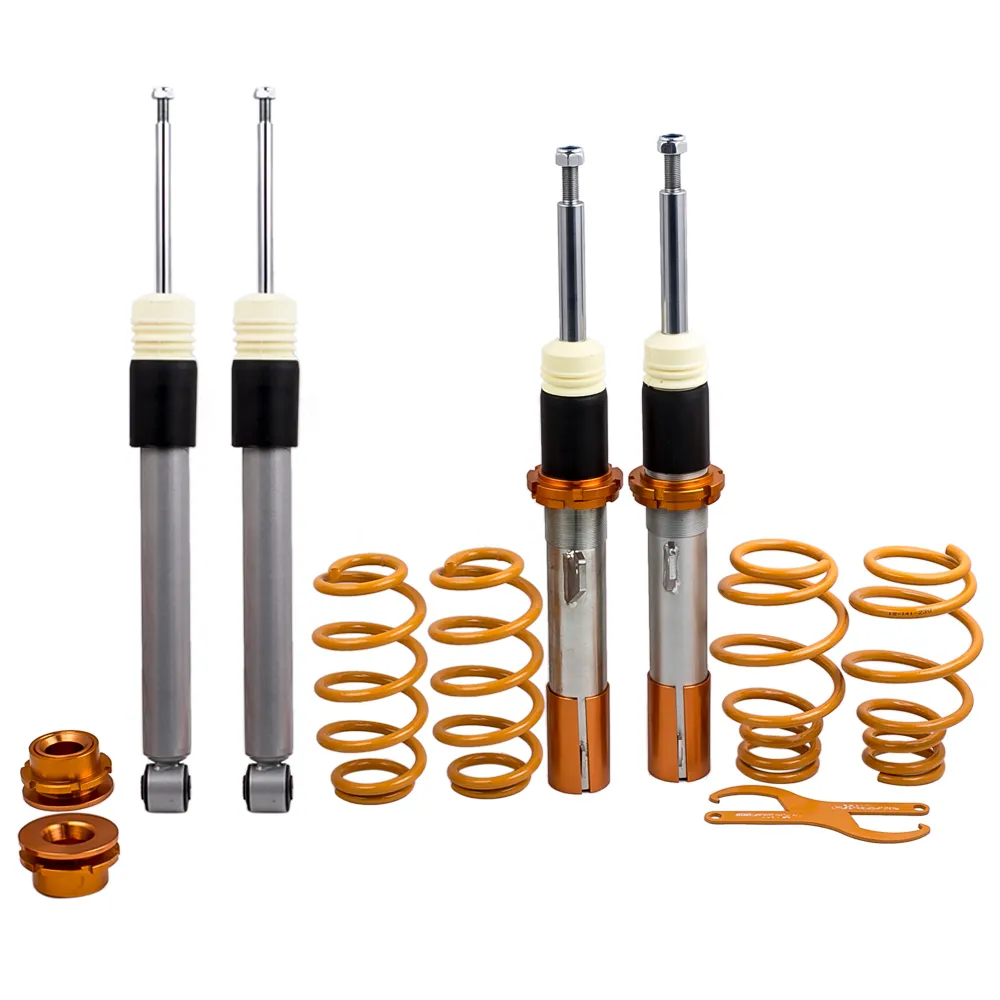

Package included

Package included：
2x Front coil-overs
2x Rear coil-overs
2x C spanners

Dimension

Package Size: 64*50*20 cm
Weight: 19100 g

Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
