12V Air Suspension Compressor Controller Kit for Universal Vans Pickups

Introduction

The air spring controller kit is designed to pressurize and depressurize the air springs installed in your vehicle with one button without leaving the cab, bringing great convenience. Moreover, it is a universal kit and suitable for most light or medium duty pickups and vans.

Applicazione

UNIVERSAL
FIT FOR MOST 1/2, 3/4
AND 1 TON PICKUPS AND VANS

Specificazione

Condition: Brand New
Drilling Required: Yes
Installation instruction included

Package included

Package includes（as the picture shows):

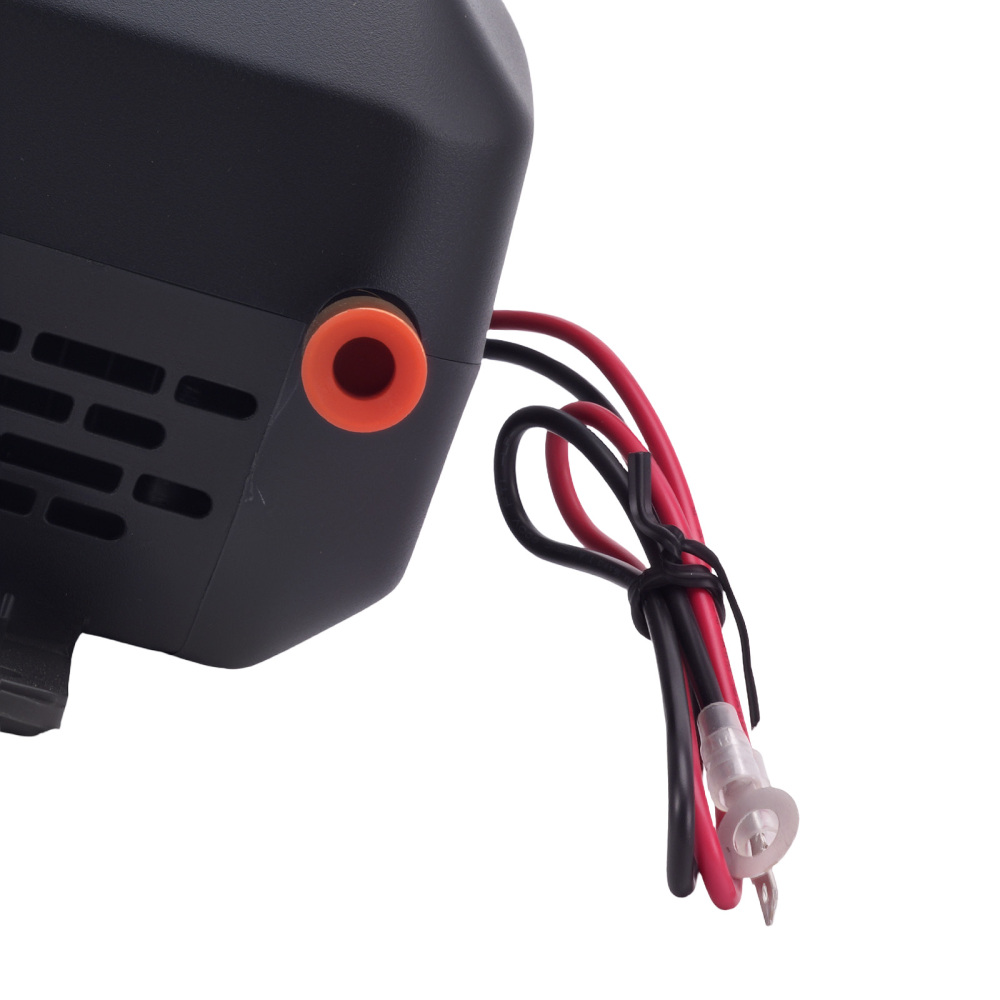

1 x 12V maXpeedingrods Air Compressor（Black）

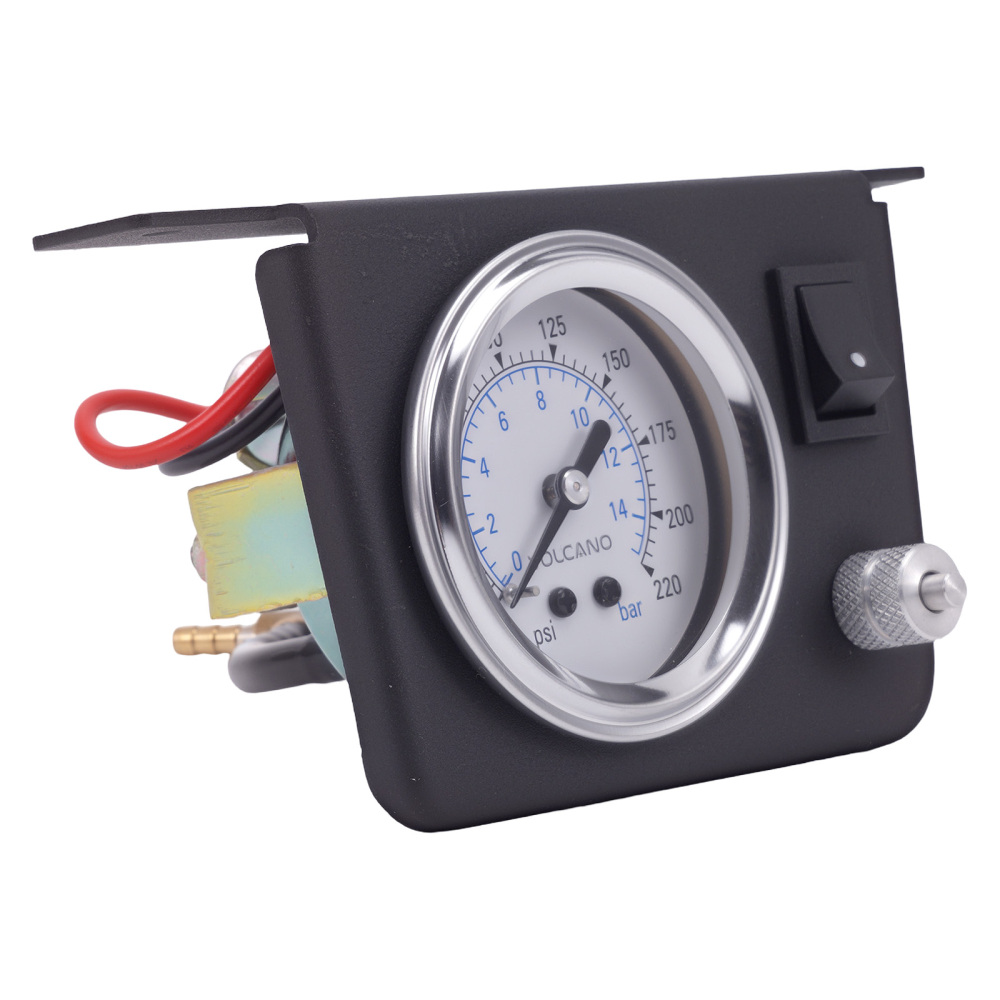

1 x Gauge panel （Push buttons for up and down）
1 x Air Line φ6*1（6M)
1 x Wire harness (2.5 M) black
1 x Wire harness (8.5 M) red
1 x Relay harness(1M)
3 x Quick-connect tee
And some other accessories

Caratteristica

1、Allows you to monitor and adjust the air pressure in the air spring bag from the driver's compatibile per seat.
2、Performs well for light-duty or medium-duty applications and for occasional hauling or towing.
3、Includes onboard air compressor, single-gauge dash panel, air lines and hardware.
4、Compatible with any brand of air spring.
5、Single-path controls let you adjust 1 pair of air springs.
6、Strict quality inspection to ensure long-term use without damage
7、Maximum air pressure: 100 psi.
8、Recommended working pressure：5-70 PSI
9、Wire harness has flame retardant properties.
10、The air compressor has quality assurance.
11、The air compressor has a waterproof casing.

AIR TIGHTNESS TEST

AIR TIGHTNESS TEST
· After inflating the air spring bag, inspect all air line fittings for potential leaks.
· Spray soapy water on the fittings. If there is a leak, expanding bubbles will appear around the leaking area.
· If the leak is at the tubing connection, ensure the cut is square and the tube is fully inserted into the fitting.
· If the leak is at the threaded air fitting, tighten it another quarter turn and test again.
. Before driving, ensure the entire system is leak-free, airtight, and that all air lines and wiring harnesses are securely fastened.
