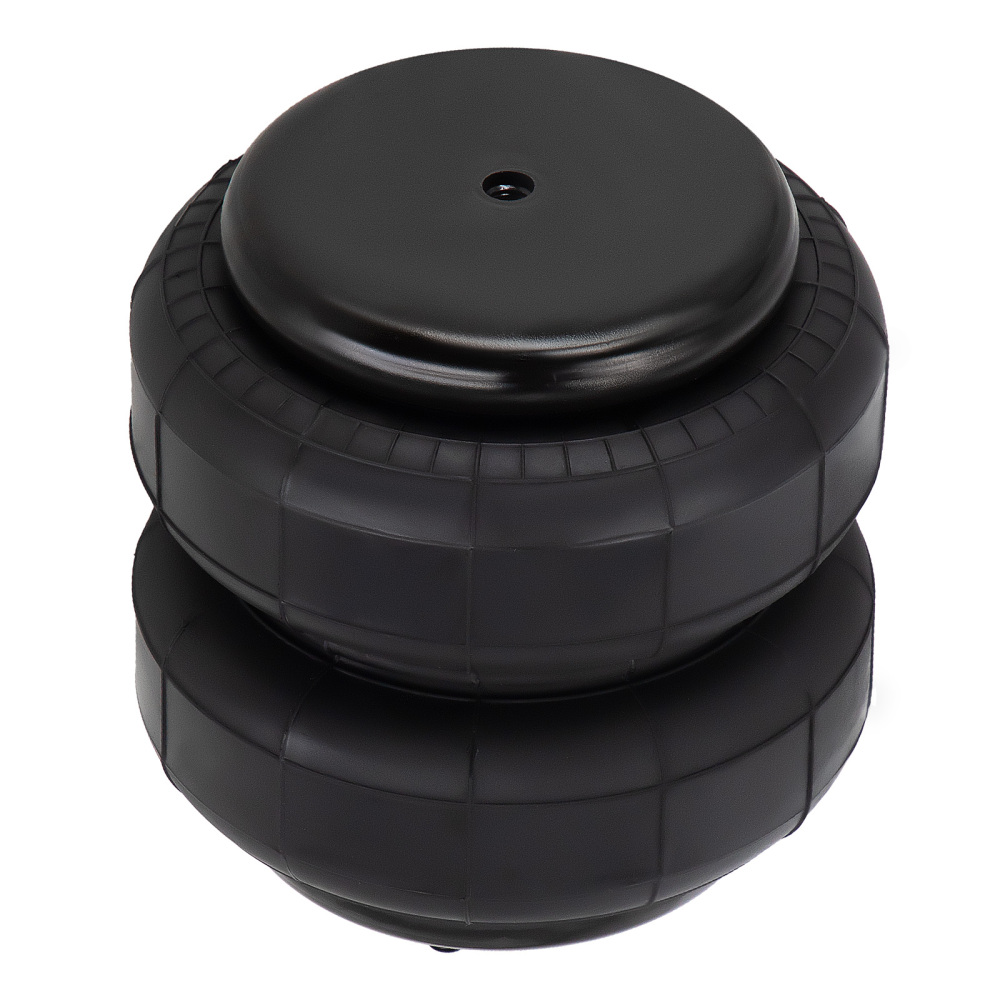

2X Sospensione Pneumatica 2500 LBS Air Suspension Bags For Firestone 6781

Extra Postage will be charged to the following Post Code:

Italy: 04020, 04027, 07020, 07024, 07046, 09014, 23030, 30010, 30030, 30100, 57030,
57100, 58012, 58018, 71010, 71040, 71100,
80100, 90010, 91010, 91017, 91023, 92010, 98050, 98055, 98060,
57031- 57039; 80070- 80079; 30121-30176;

No Shipping Service to the following Post Code.

Italy:  10010-10156


Applicazione

Per la maggior parte dei camion, furgoni, SUV, ecc.

OE/Numero di parte

For W21-760-6781

For Firestone 6781

Specifiche

Condizione: Nuovo di zecca

Posizione sul veicolo: Sinistra, Destra, Anteriore, Posteriore

Altezza di progettazione: 165 mm

Altezza minima: 55-76 mm

Altezza massima: 210-230 mm

Corsa di lavoro: 134-175 mm

Dimensione del porto dell'aria: G1/4-19

Dimensione del foro di installazione: 3/8-16UNC

Diametro della piastra superiore: 112 mm

Diametro del corpo del sacchetto dell'aria: 146 mm

Capacità del sacchetto dell'aria: 2500LBS / lato

PSI minimo: 5 PSI

PSI max.: 100 PSI

Dimensioni del pacchetto: 22*19*33 cm

Peso dell'articolo: 4200 g

Quantità

- 2x 2500 LBS Sacche di sospensione pneumatica

English Version

These air suspension bags are aftermarket ones. They will replace the original rear air springs.

Applicazione

Compatible for most of Truck, Van, SUV,etc

Numero OE/parte

For W21-760-6781

For Firestone 6781

Specificazione

Condition: Brand New

Placement on Vehicle: Left, Right, Front, Rear

Design height: 165 mm

Min height: 55-76 mm

Max height: 210-230 mm

Working stroke: 134-175 mm

air port size: G1/4-19

Install hole size: 3/8-16UNC

Top plate diameter: 112 mm

Air spring bag body diameter: 146 mm

Air spring bag capacity:  2500LBS / Side

Minimum PSI: 5 PSI

Maximum PSI: 100PSI

Package Dimensions: 22*19*33cm

Item Weight: 4200g

Quantity

- 2x 2500 LBS Air suspension bags

Features

PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve minimizes noise.
Heavy-duty crimping rubber and connection compatibile per seat withstand 2 MPa+ pressure, preventing detachment.
Nitrile rubber seals resist oil and aging for lasting performance.
TPV dust cover: better flexibility and lifespan than TPE.

RIGOROUS TESTING
100% air tightness tested.
Endurance tested over 5 million cycles.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict standards and ISO 9001 compliant.
Precise OE fit and performance.
CNC machined components.

PERFORMANCE & COMFORT
Restores ride height and enhances comfort.
High compressive strength and excellent sound insulation ensure driving comfort and safety.
Efficient heat dissipation ensures durability.
Easy to install, with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.

Important Notice

- Before purchasing, please confirm whether the parameters (especially height, diameter, bolt specifications) are consistent with ours

- Professional installation is highly recommended.

- For any needs please contact us via e-mail.
