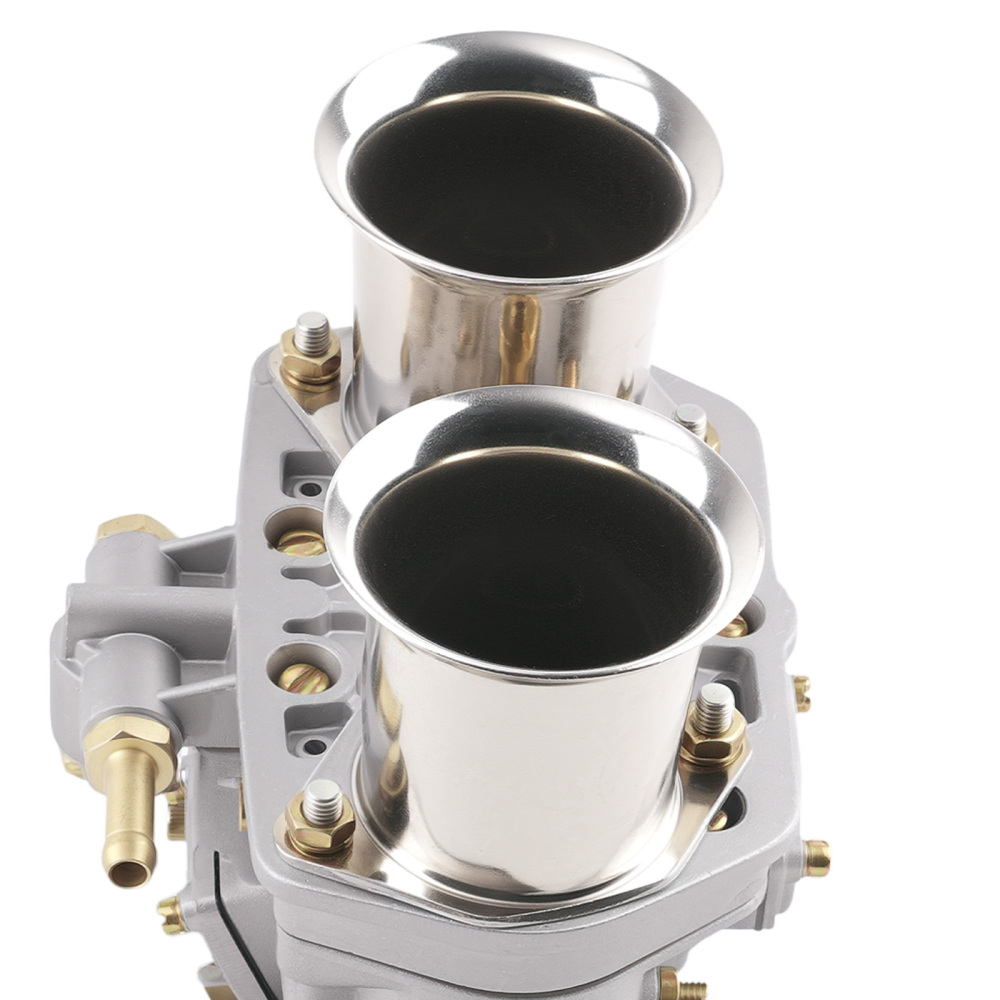

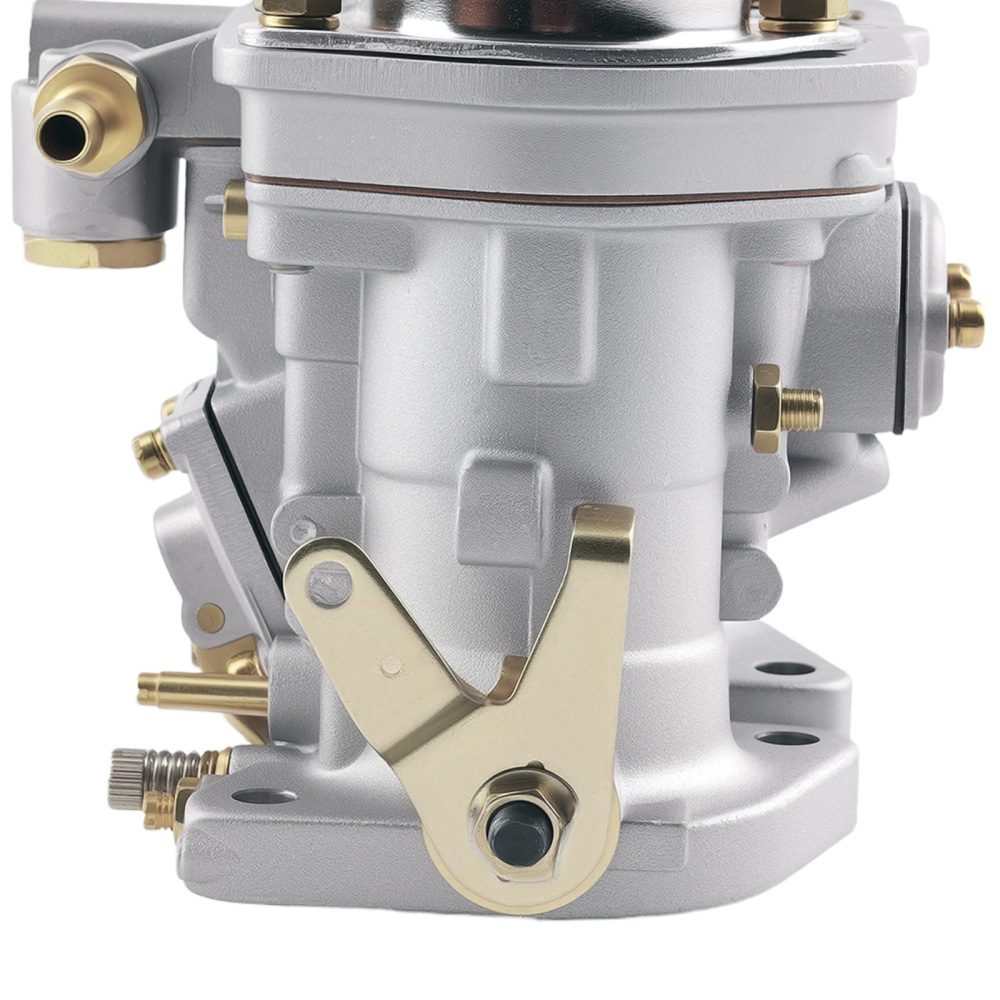

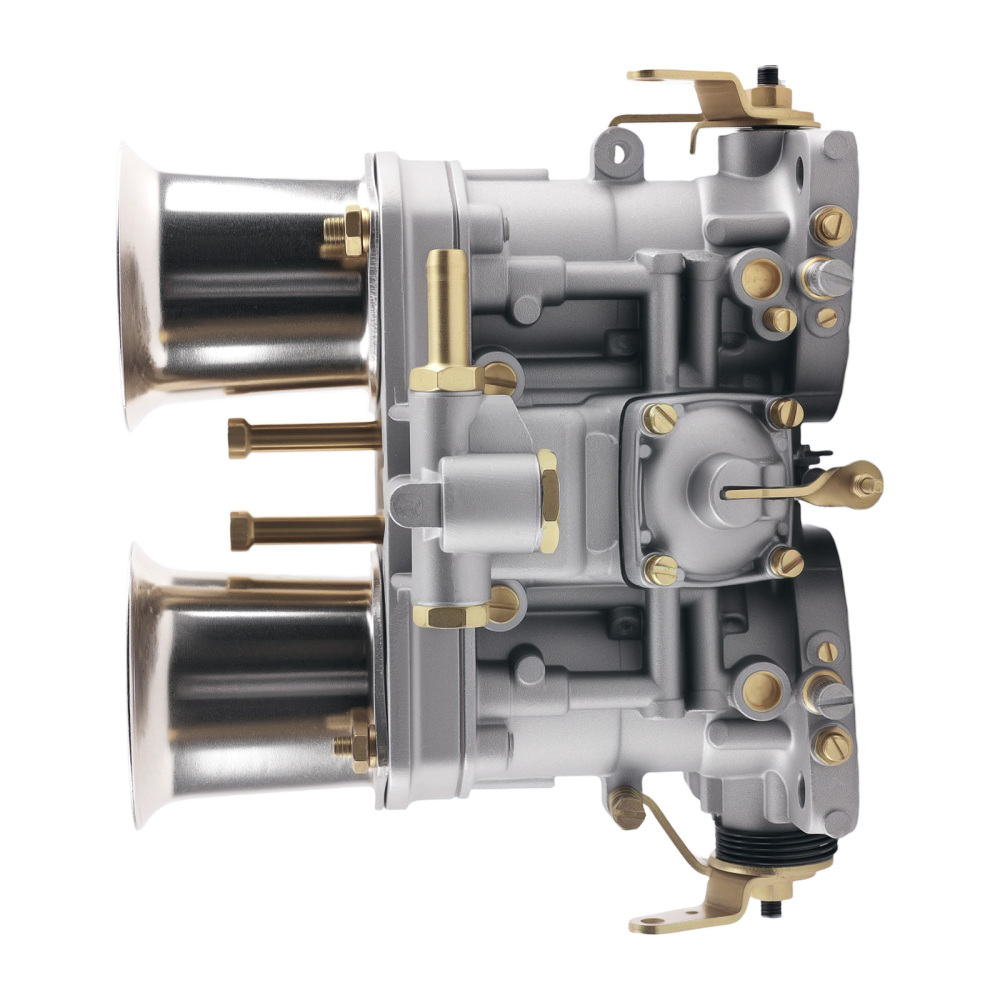

Carburetor Carburatore 40 IDF With Air Horn compatibile per VW Beetle Bug compatibile per Porsche 912 356

Introduction:

A carburetor is a device to mix air and fuel for internal combustion engines in the proper ratio for combustion. The fuel and air mixture is too rich if it has an excess of fuel, while too lean if there is not enough. Therefore, our high quality carburetor is the perfect solution for the appropriate ratio of air and fuel mixture and finally provides a good engine performance

Applicazione:

Compatibile per VW Beetle
Compatibile per Fiat
Compatibile per Porsche carburetor With Air Horn

Specificazione:

For Dual Applicazione, 2 Barrel Carb Carburetor

Main jets: 115
Emulsion Tubes: F11, F-11
Air Corrector Jets: 200
Idle Jets: 52
Needle & Compatibile per Seat: 200
Accelerator Pump for Jets: .50
Pump Exhaust for Jets: 550
Venturis: 28mm
Aux Venturis: 4.50mm
Needle Valve: 1.75mm
Bolt Hole Spacing Length & Width:134.5(max)mm×64(max)mm( center to center )
Throttle Bore Throat Size Measures: 40mm
Choke Air Horn Inner  Diameter: 46mm
Choke Air Horn Outer Diameter: 65mm
Manufacturer Part Number: for  40 IDF
Material: Heavy Duty  Zinc Alloy Construction
Placement On Vehicle: Front
Weight:2.2 kg
Package Size:23*21*15 cm
Condition: Brand New

Package included:

1pc Car Carburetor with air horn
2pc Mounting gaskets

Caratteristica:

1.To mix air and gasoline in a correct ratio to ensure proper engine function，Give your machine the new power it deserves.
2.Get better driving experience and handling with high performance  carburetor that will keep you in control on road
3.Brand new and high quality carburetor replacement part. Helpful for avoiding waste of oil to some extent.
4.Low fuel consumption, Start fast stable idle speed, Heavy Duty Metal Construction
5.Nickel plating surface to keep the carb last much longer
6.Tested For reliability and performance,simple installation .

Nota:

*The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.
*Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work.  (No Instruction Included)
* To ensure correct purchase,please compare carburetor against picture before you purchase.
