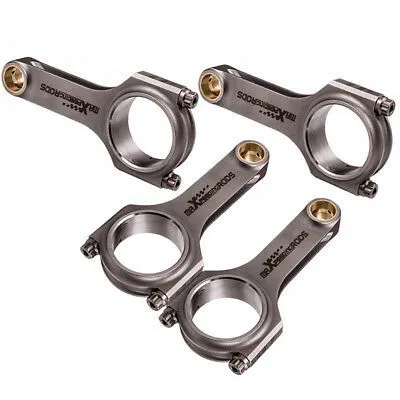

4x Bielle compatibile per Nissan 200SX SR20 SR20DET H beam ConnectingRods ConRod ARP bulloni

Specifiche Tecniche

TüV Certification Con Rods

Quantità: 4 parti un insieme

Bulloni: Bulloni ARP 2000 3/8" Inclusi (Costo extra necessario for l'aggiornamento a bulloni ARP L19)
Materiale: forgiato in acciaio aereo al cromo-molibdeno 4340 di qualità for le corse

Tolleranza del Peso: +/- 1 grammo bilanciato nell'insieme

Piston Bolt Hole: +-4/1000mm

Power: 600PS ~ 800PS for set

Strength of the fastening (PSI): 220.000/230.000 PSI

Top speed: 9000rpm

Torque 48ft ≈ 65 Nm

Warranty: one year For Manufacturing Defect

Applicazione
Compatibile per Nissan S13 S14 Silver 180SX 200SX Pulsar SR20 SR20DE SR20DET

Dimensioni

Lunghezza dal centro al centro: 136.3mm
Lunghezza della testa grande: 51mm
Lunghezza della testa piccola: 22mm
Larghezza della testa grande: 22,8mm
Larghezza della testa piccola: 22,8mm

Advantage:

Brand New

100% tested and balanced

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

10 years warranty

Multiple heat treatments

With bronze rings for floating pistons

100% verified by X-rays, ultrasonic waves and Magnaflux

Designed and manufactured using state-of-the-art CNC machines.

All big and small connecting rods are made by SUNNEN honing machine.

Shot-blasted for long life and operation, even in stressful situations

Precise alignment of the pilot hole for the connecting rod to avoid displacement

NOTE:

Upgrading to ARP L19 Bolts, up to 220,000/230,000 or 260,000/2270,000 PSI (from 800 HP, additional charge of 10 EUR / unit for upgrading to AR19 L19 bolts).

* Professional installation is highly recommended (No Instruction Included)
