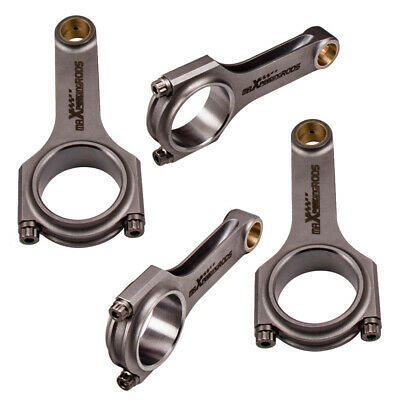

4x Bielle Pleuel Rods compatibile per Nissan Sunny B310 Cherry F10 A15 1.5L Stroker motor

Specification

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect

Application

Compatibile per Nissan Sunny B310 A15 1.5L Stroker motor
Compatibile per Nissan Cherry F10 A15 1.5L Stroker motor
Compatibile per Nissan Pickup B120 A15 1.5L Stroker motor
Compatibile per Datsun 210 F10 310 N10 A15 1.5L Stroker motor

Dimensions

Center to center length: 133mm
Big end diameter:48mm
Small end diameter: 19mm
Big end width: 24.3mm
Small end width: 21.8mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
