TF035VGK TURBO TURBOLADER compatibile per HYUNDAI SANTA FE 2.2 CRDI 49135-07100 49135-07300

Important Notice: this turbo does not have the sensor hole on the turbine side.

Application

Compatibile per Hyundai Santa Fe 2.2 d 150HP D4EB, CRDi, GLS, 4x4 2005-
Compatibile per Hyundai Santa Fe 2.2 CRDi D4EB 150HP 110KW from Dez.2005，
Compatibile per Hyundai Santa Fe 2.2 CRDi D4EB 155HP 114KW from Dez.2006

Turbo Model

TF035HL-10GK23-VG；TF035

Turbo Part Number & OEM Number

49135-07300，49135-07100, 49135-07302,
49135-07301, 28231-27800

Specification

Cooling Type: Oil Cooled
Bearing Type: Floating Bearing
Hosepower: 155 HP
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package size: 27x25x23cm
Package weight: 6280g

HOW TO IDENTIFY YOUR TURBOCHARGER:

If you are not sure fitment for your old turbo , please let us know this information :
 1. The OEM code information from your original turbo nameplate
 2. The Engine code & KW , HP , Year for your car
 3. The Photos of  your complete turbo
 4. Please note that the registration number cannot identify your turbocharger

Features

1. Excellent Design:
Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance

2. High Temperature Resistance:
special K418 alloy Turbine Wheel can withstand exhaust temperature Above 900°
ductile iron QT450-10 Turbine housing Can withstand temperatures up to 700℃

3. High Efficiency:
High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag

4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

5. 100% BALANCING TEST:

This Turbocharger you will receive has been balanced using the VSR machine technology.

Product  ：
1. Rich Experience In Turbo Production And Own Factory
2. Quality Assurance
3. High Rotor
4. High-Speed Oil Seal Ring
5. Strict Quality Inspection
6. Precision Clearance
7. High-speed Accessories

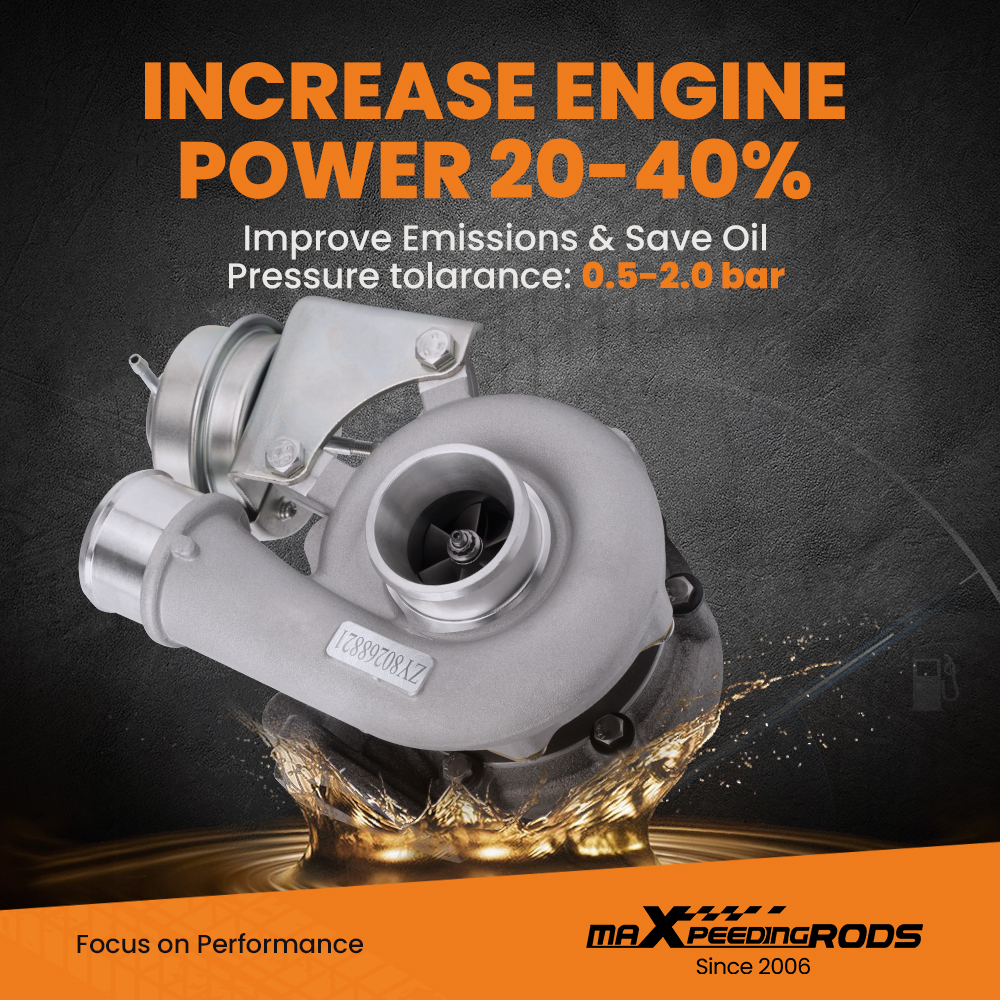

8. Increase Engine Power
9. Improve Emissions & Save Oil
10. OEM-quality and size with little modification

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)
