VVT Sensor Setting Tool Crankshaft Chain Tensioner Locking Tools Kit compatibile per Opel

Application

For petrol engines with timing chain 1.0, 1.2, 1.4 Turbo from year of construction 2010

Compatibile per Vauxhall / Compatibile per Opel:
Adam 1.2 1.4 (2012-), Ampera 1.4 (2011-), Astra-J 1.4 (2009),
Cascada 1.4 (2013-), Corsa-D 1.0 1.2 1.4 (2009-), Insignia 1.4 (2011-), Meriva-B 1.4 (2010-), Mokka 1.4 (2012-), Zafira-C Tourer 1.4 (2011-)

Compatibile per Chevrolet:
Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)

Function
Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain
Compatibile per Vauxhall Compatibile per Opel twin Cam engines below.
Removal of the timing chain will require the removal of the sump.
Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held
in the retracted position using a suitable pin. Remove the crankshaft pulley using an appropriate pulley holding tool.

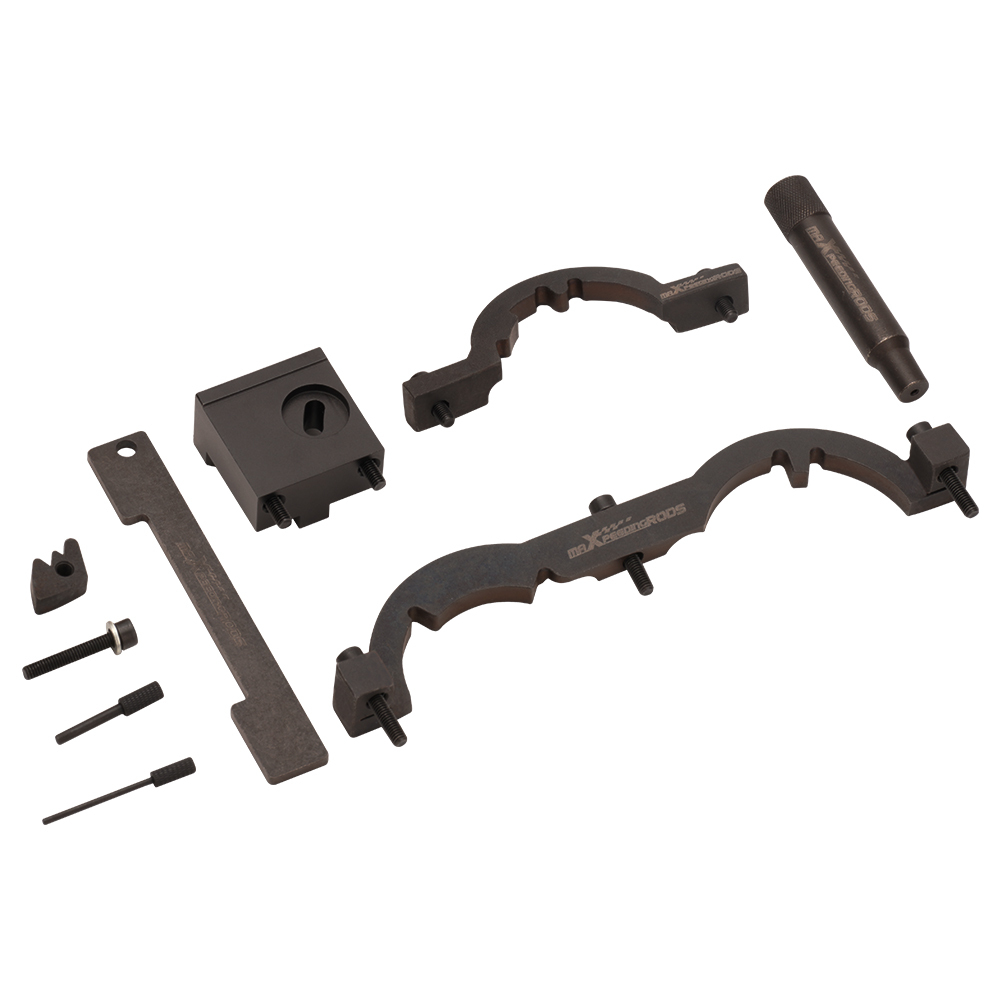

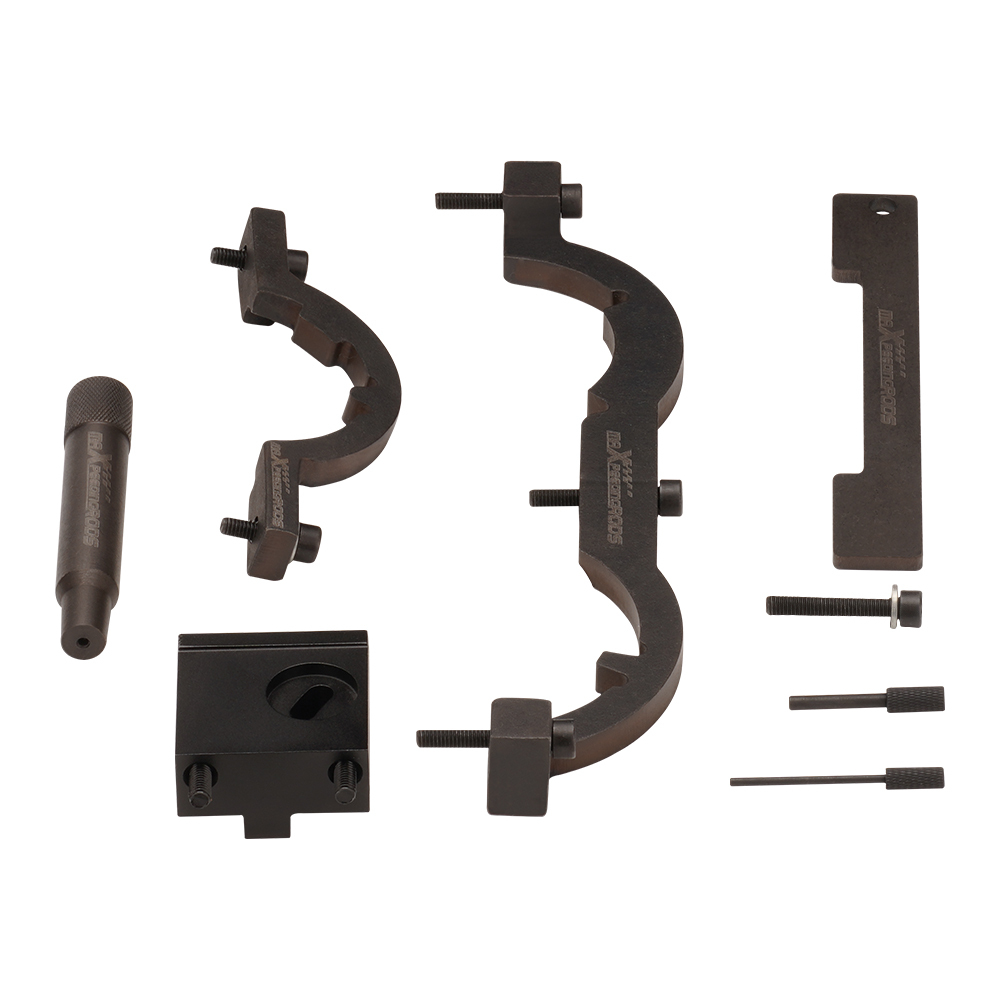

Parcel Inlcluding

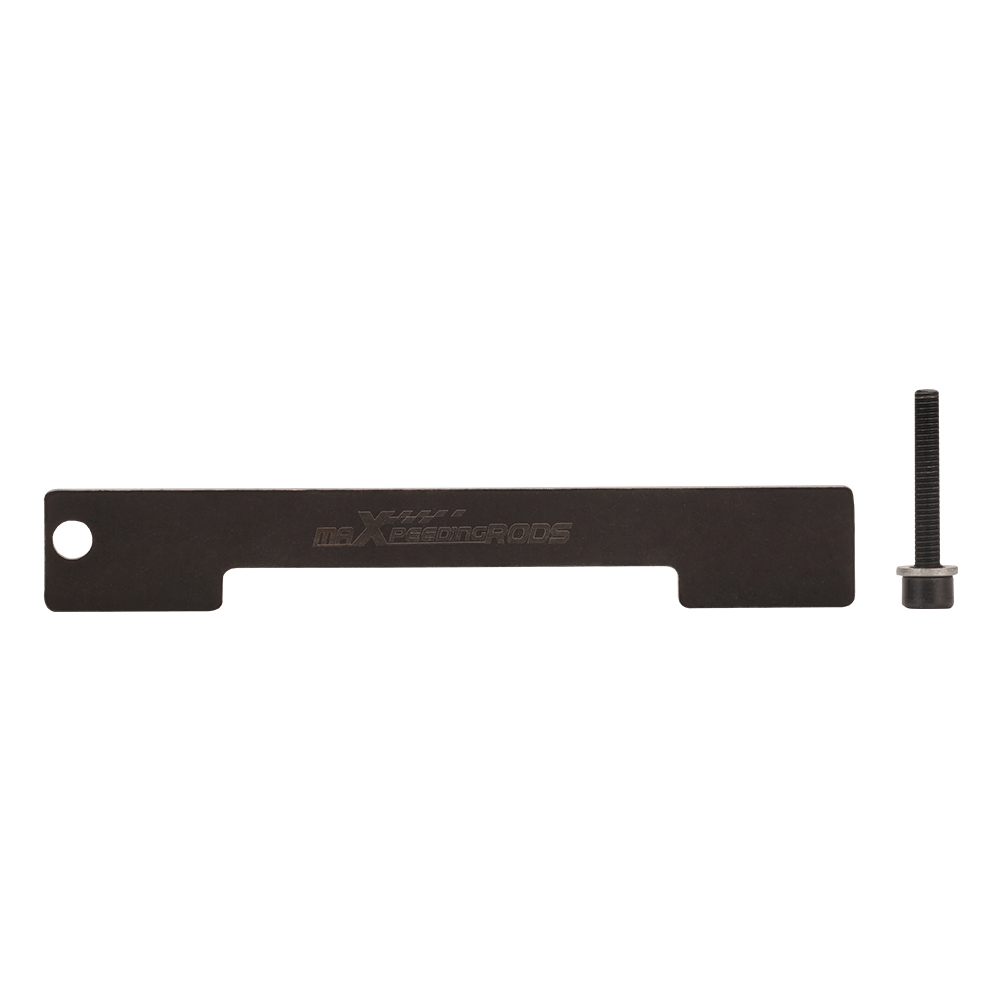

1 x inlet camshaft adjustment tool = like OEM EN-49977-200
1 x crankshaft locking pin = like OEM KM-952

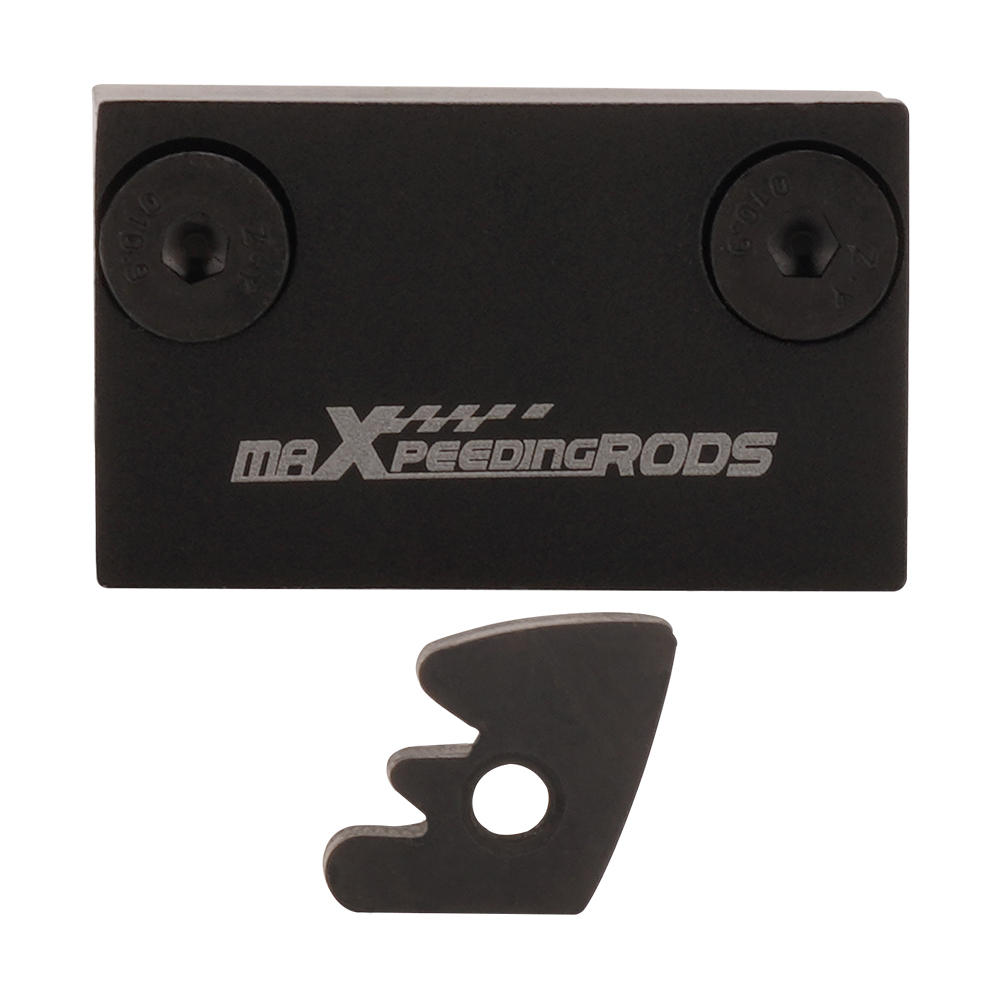

1 x setting tool for NW sensor disc = like OEM EN-49977-100
1 x locking tool for NW sensor = like OEM EN-49978
1 x camshaft counter holder = like OEM KM-953-A

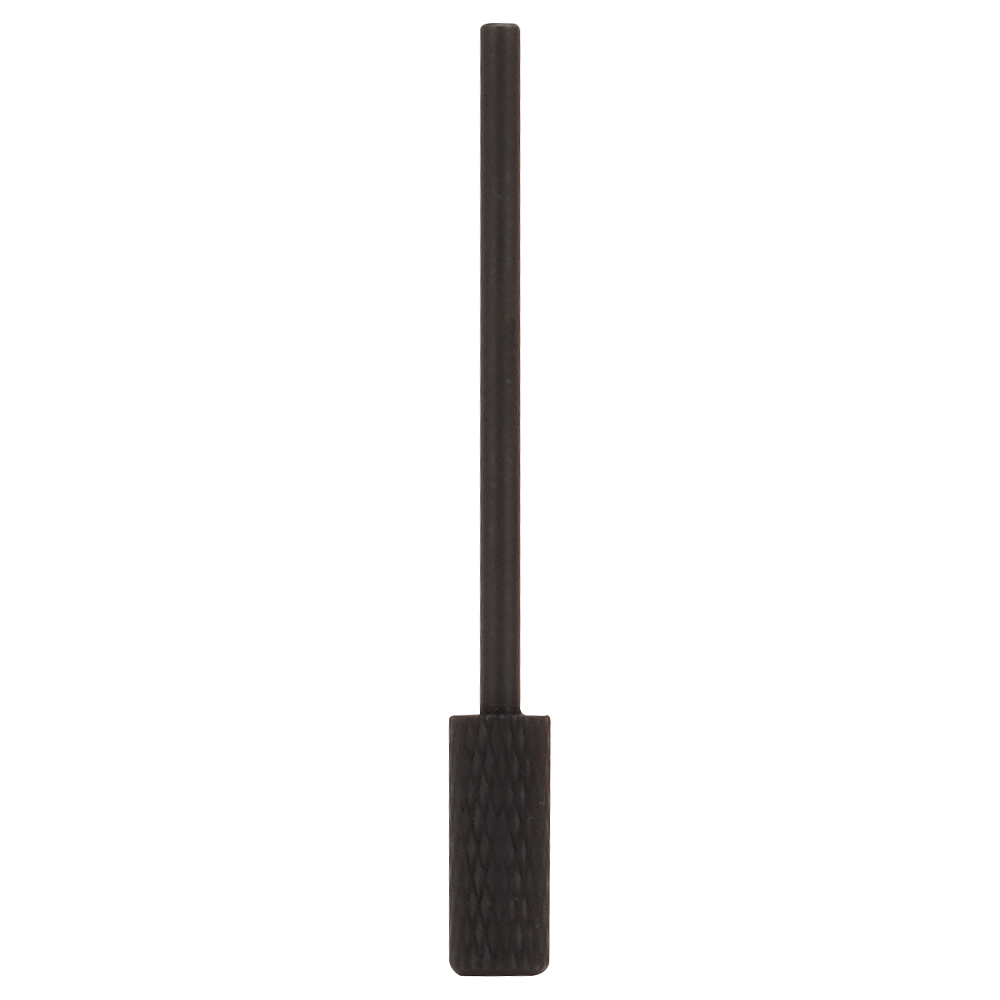

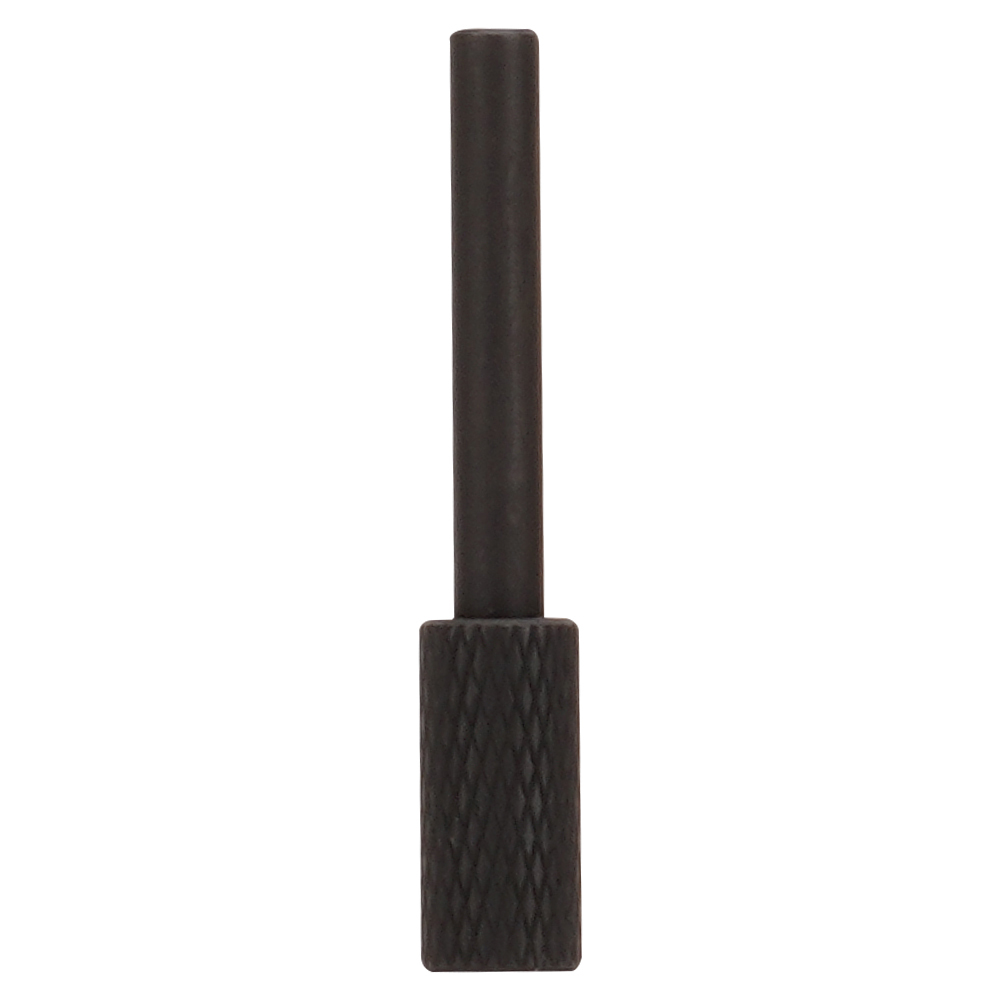

2 x chain tensioner fixing pin 2.5 / 4 mm = like OEM KM-955-1 / KM-955-2

Engines Code
1.0: A10XEP (LDB)
1.2: A12XEL (LWD), A12XER (LDC)
1.4: A14XEL (L2Z), A14XER (LDD), LDU
1.4(T): A14NEL (LUH), A14NET (LUJ), Twinport / ecoFLEX engines

Engine Codes
LWD, L2Z, LDD, LUU/A14XFL, LDD/A14XER
LDD/A14XEL, LUJ/114NET, LUJ/A14NEL, A10XEP
A12XEL, A12XER, A14XEL, A14XER, A14NEL, LUJ/A14NET
LDD/A14XER, LUJ/A14NET, LUH/A14NEL, LUJ/A14NET, LUJ/A14NEL
L2Q/A12XEL, LDC/A12XER, LWD/A12XEL, LDD/A14XEL, LDD/A14XER

Advantages

- Condition: 100% Brand New
- Warranty: one year' warranty for any manufacture defect
- Designed for comfortable use and best quality
- For high security, longevity and original quality
- Easy installation, bring maximum ride comfort

Notice
-Instruction is not included. Professional installation is recommended.
-Contact us please for whatever we can help.
-Box Color: The color of the box is random
