Assetto Regolabile A Ghiera compatibile per VW Golf 1 Jetta 1 Scirocco MK1 MK2 Regolabile

Introduction

maXpeedingrods' maXpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

Applicazione

Compatibile per VW Rabbit / Compatibile per Golf MK1(models 1975-1984)
Compatibile per VW Jetta MK1(models 1980-1984)
Compatibile per VW Scirocco MK1(models 1975-1981)
Compatibile per VW Scirocco MK2(models 1982-1989)

Specificazione

Front top mount: OE
Rear top mount: OE

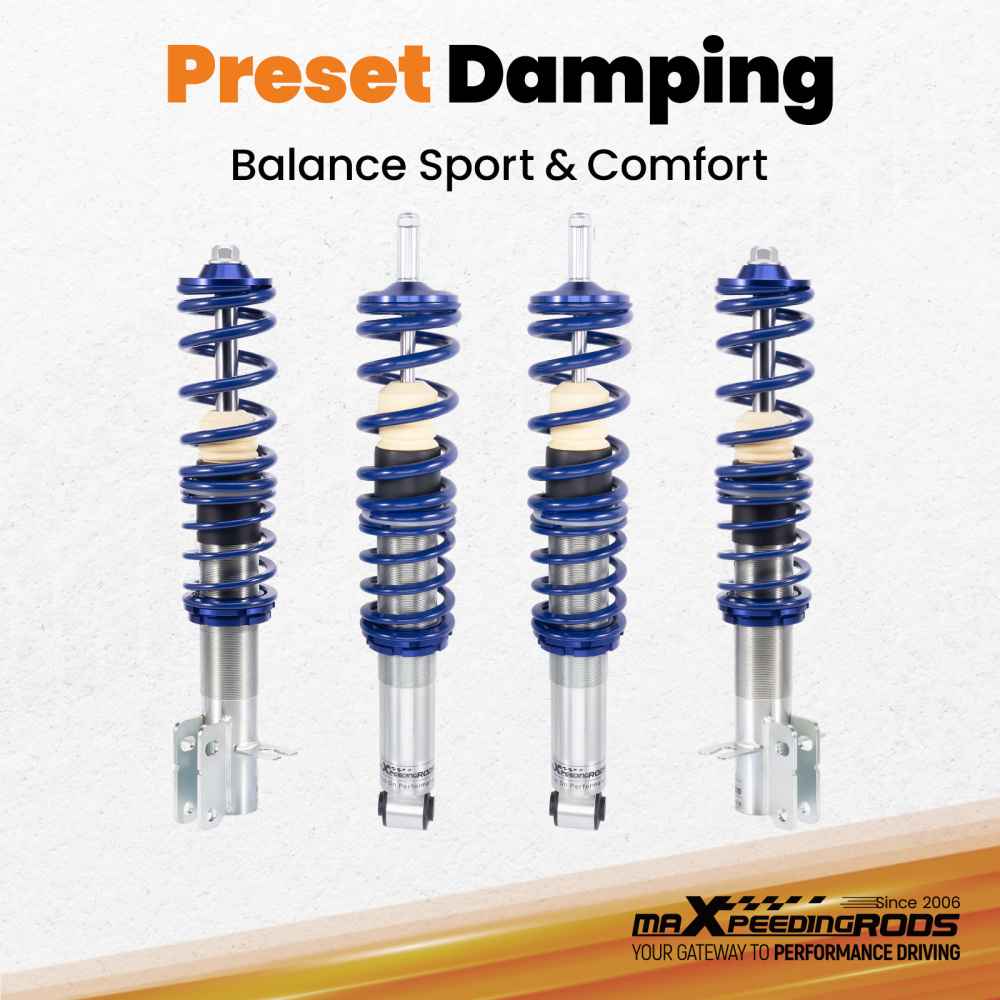

Damping adjustable: Not available
Camber adjustable: Not available

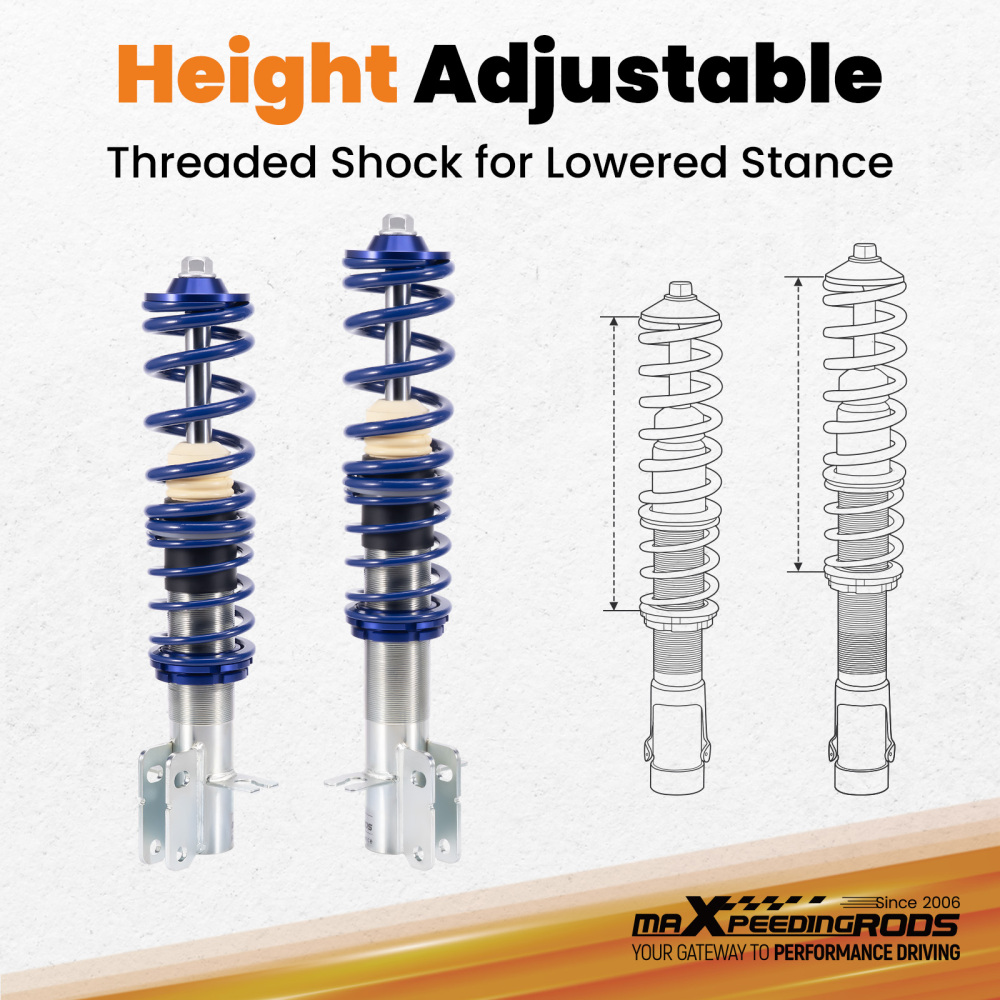

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

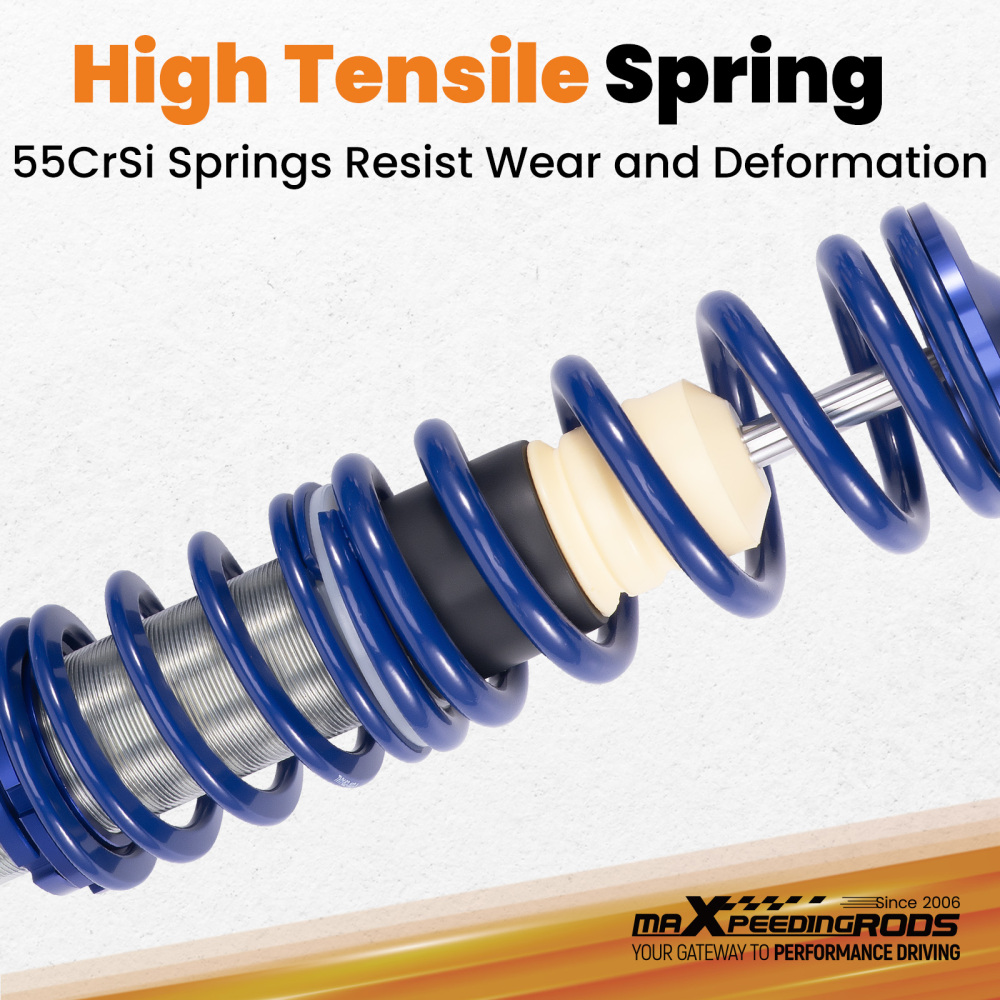

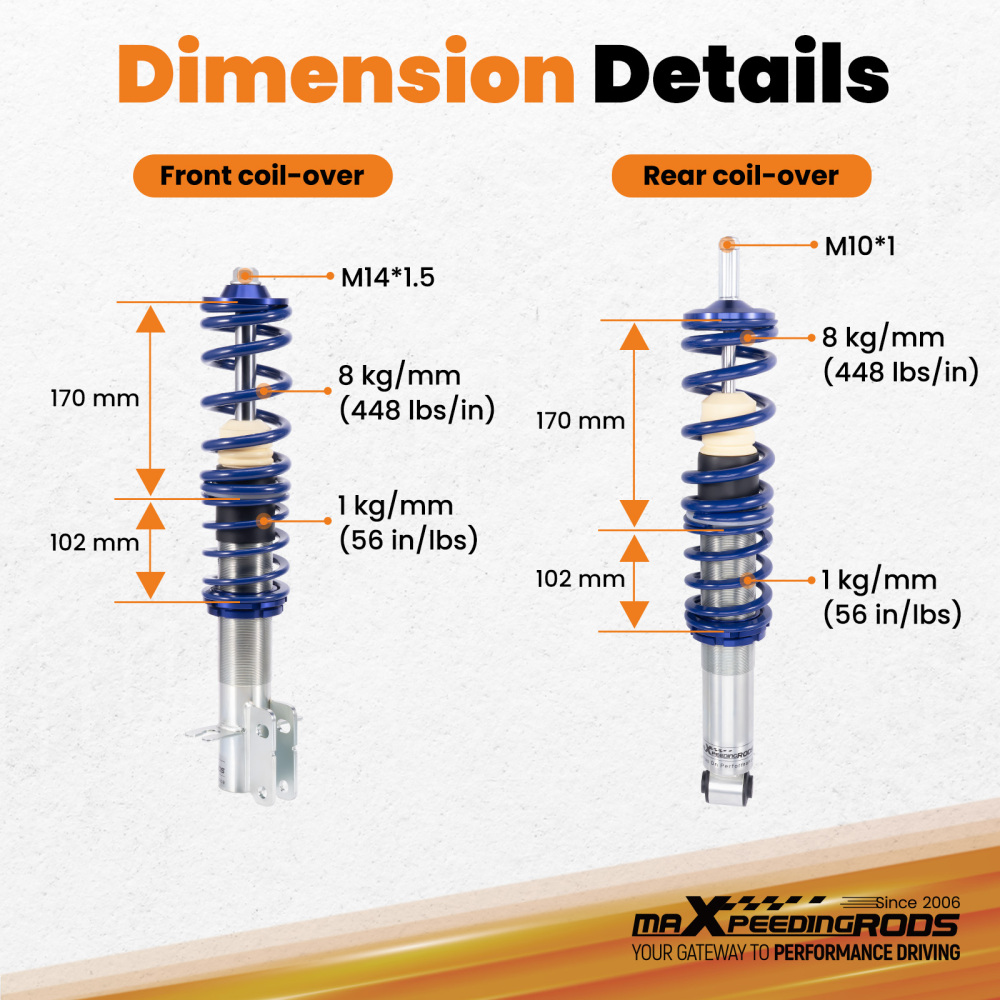

Spring rate Front: 1 kg/mm (56 lbs/in)
Spring rate Rear: 1 kg/mm (56 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring length Front: 102 mm
Spring length Rear: 102 mm
Spring Preload advised: 7-10 mm

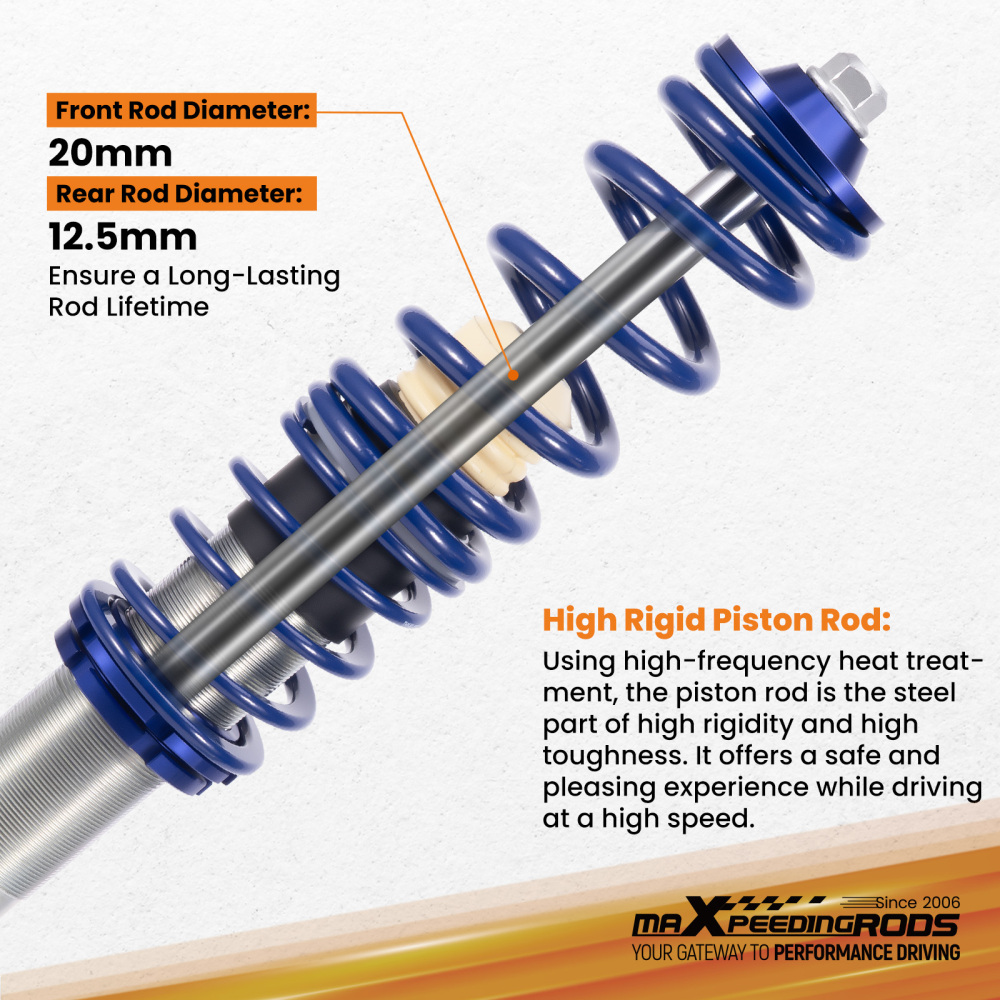

Damping rod diameter Front: Φ 20 mm
Damping rod diameter Rear: Φ 12.5 mm
Damping thread Front: M52×1.5 mm
Damping thread Rear: M52×1.5 mm

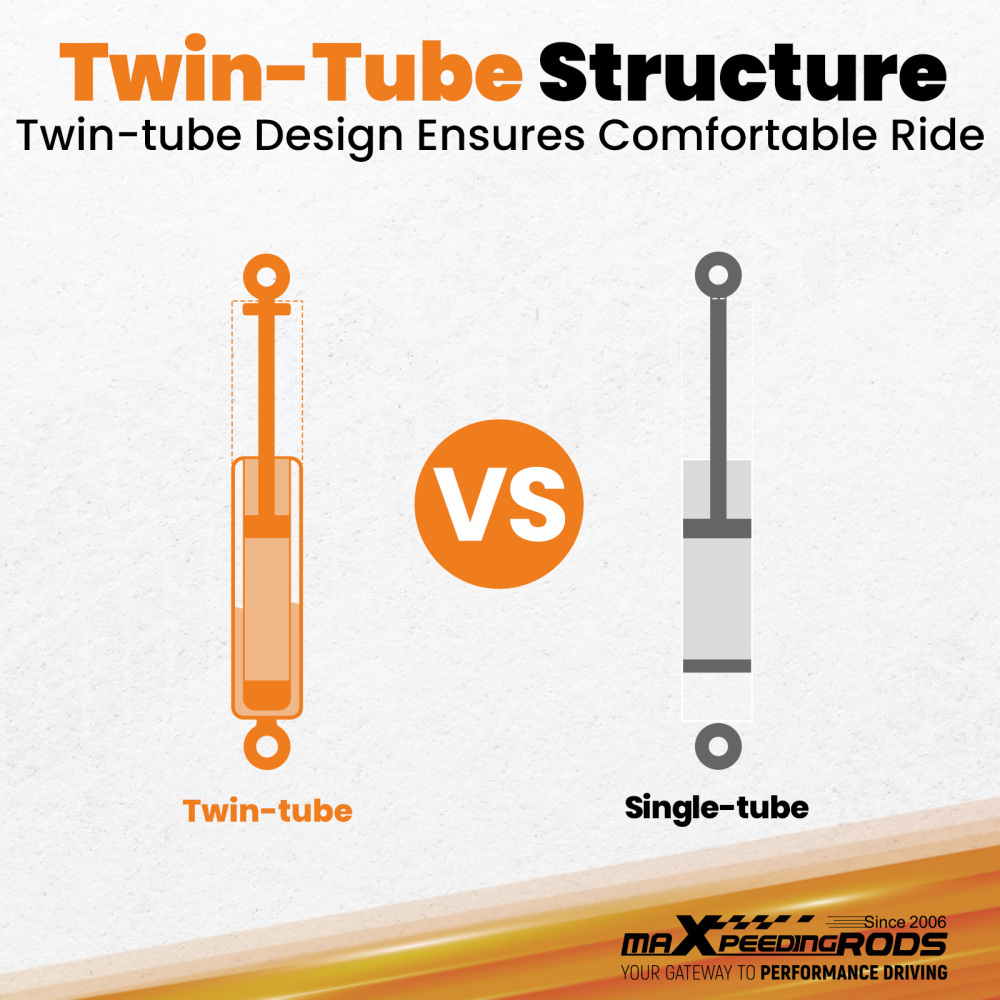

Twin -tube Diameter Front: 52 mm
Twin -tube Diameter Rear: 52 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M10×1 mm
Front Collapsed Length: 385 mm / 15.16"
Front Extended Length: 485 mm / 19.09"
Rear Collapsed Length: 415 mm / 16.34"
Rear Extended Length: 515 mm / 20.28"
Color: Silver body with blue spring

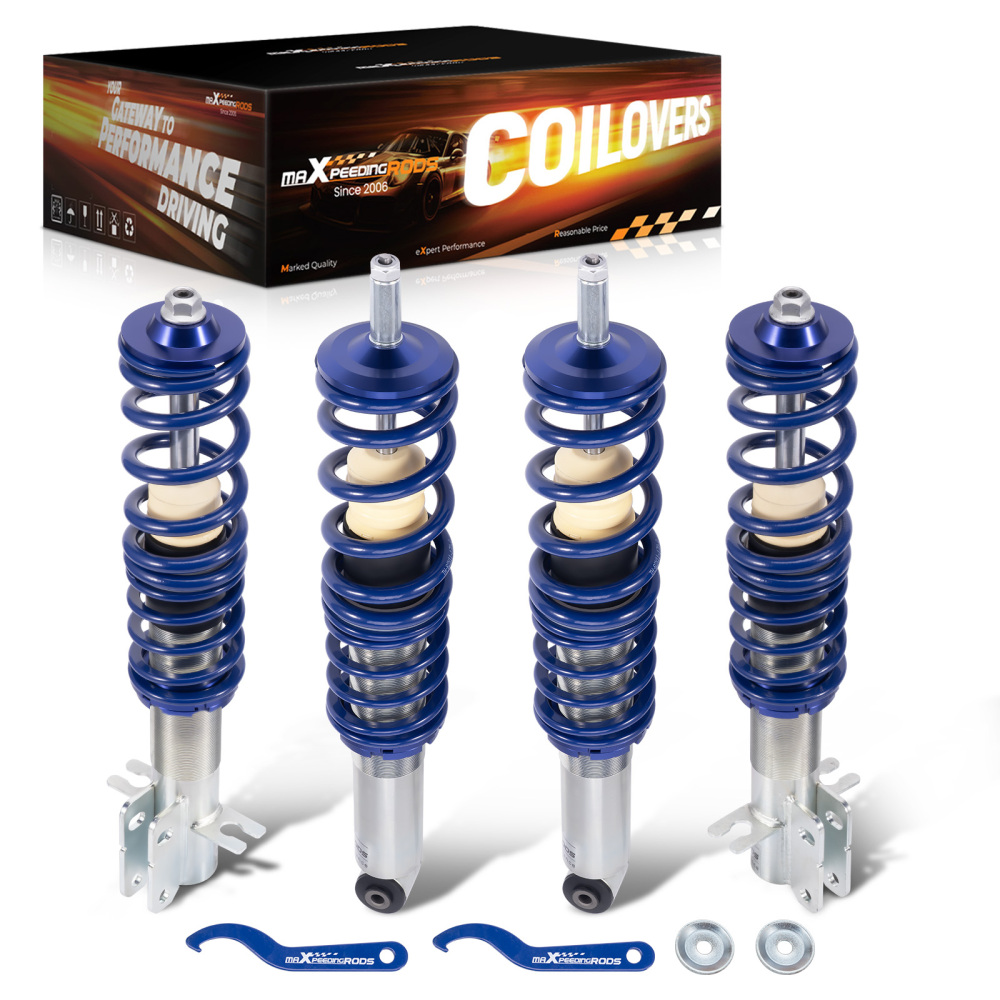

Package included

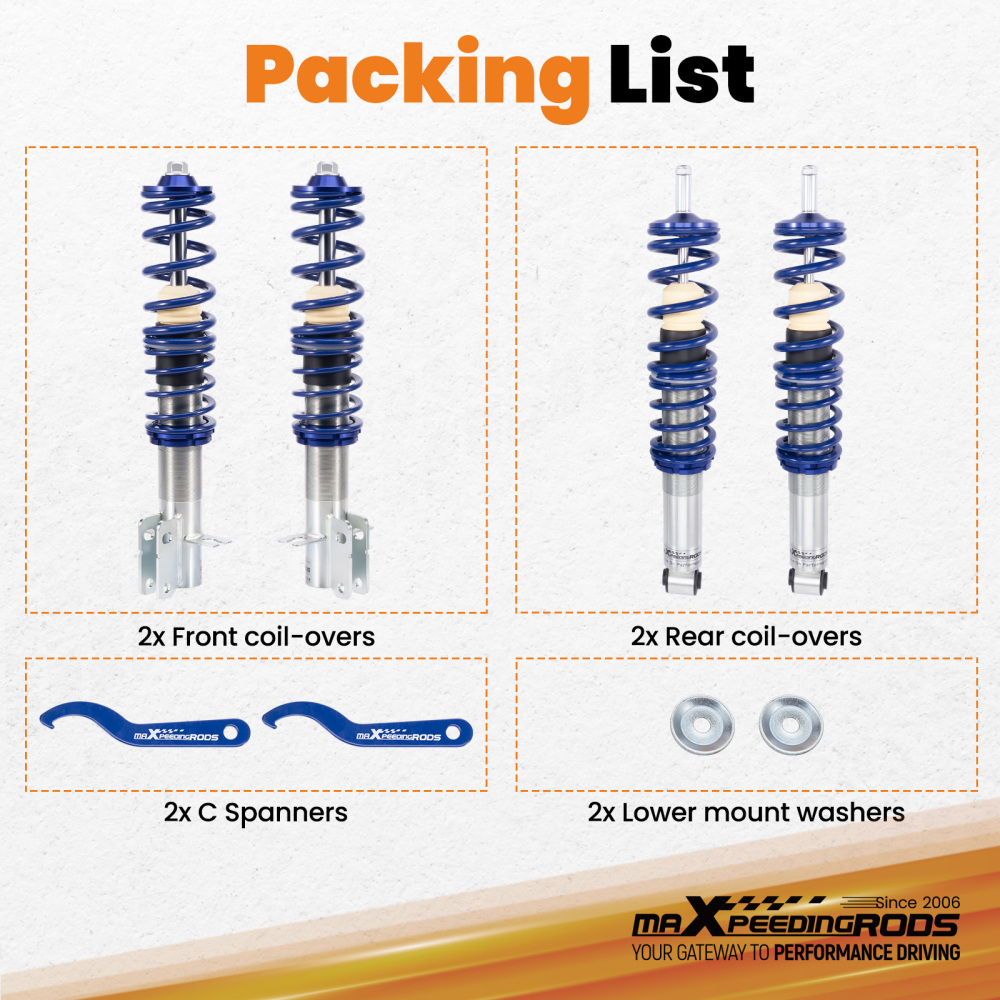

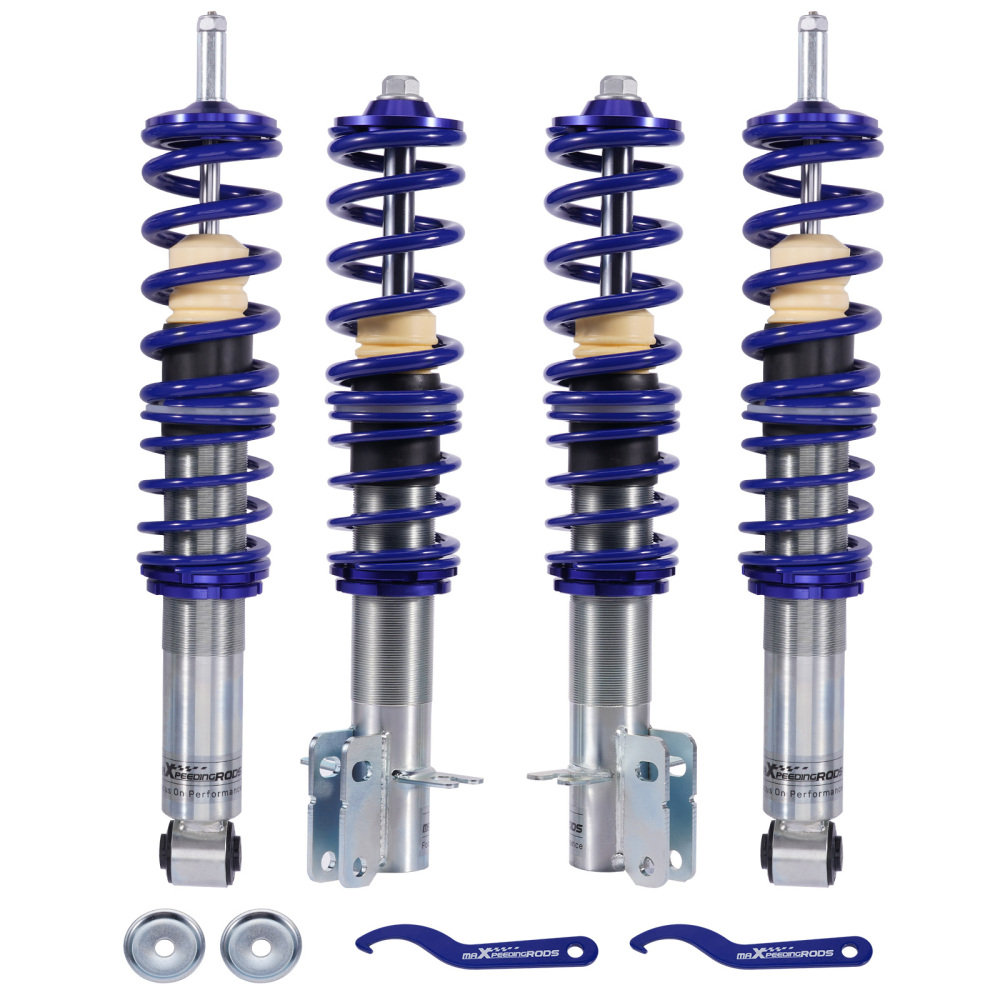

Package included：

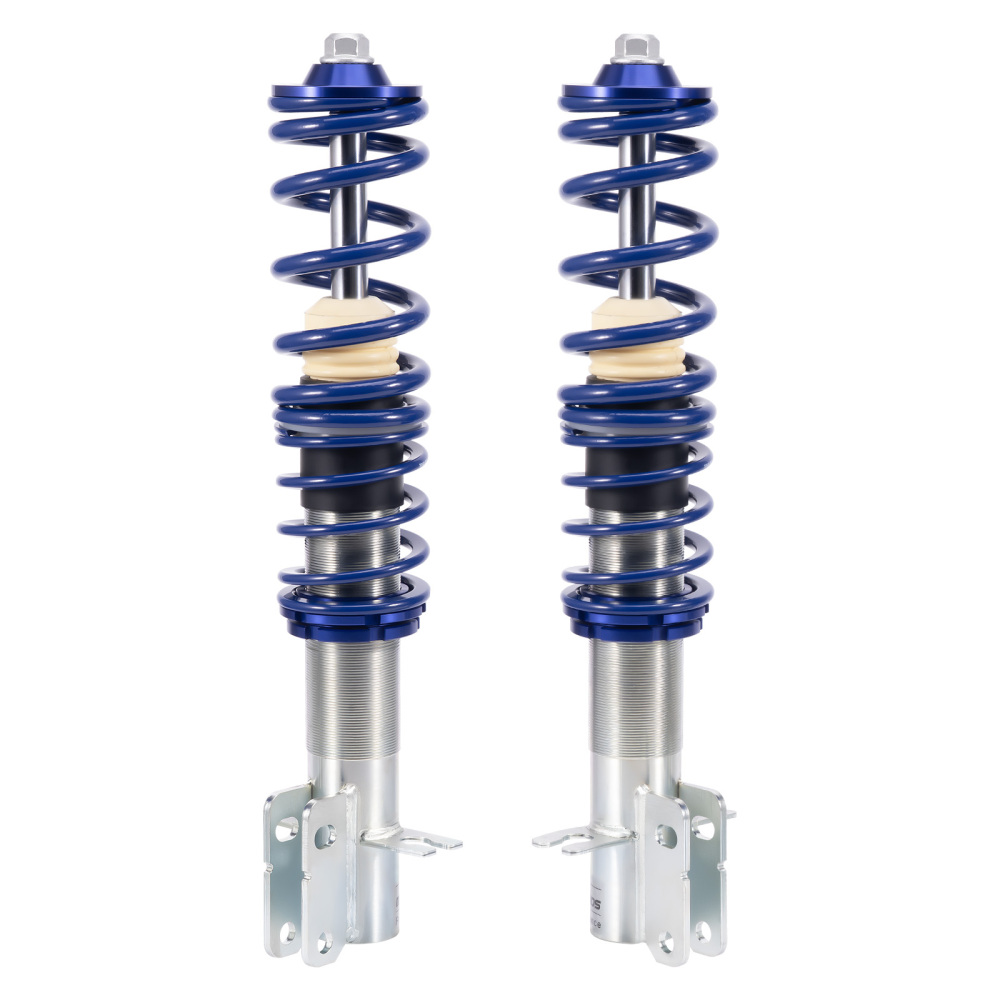

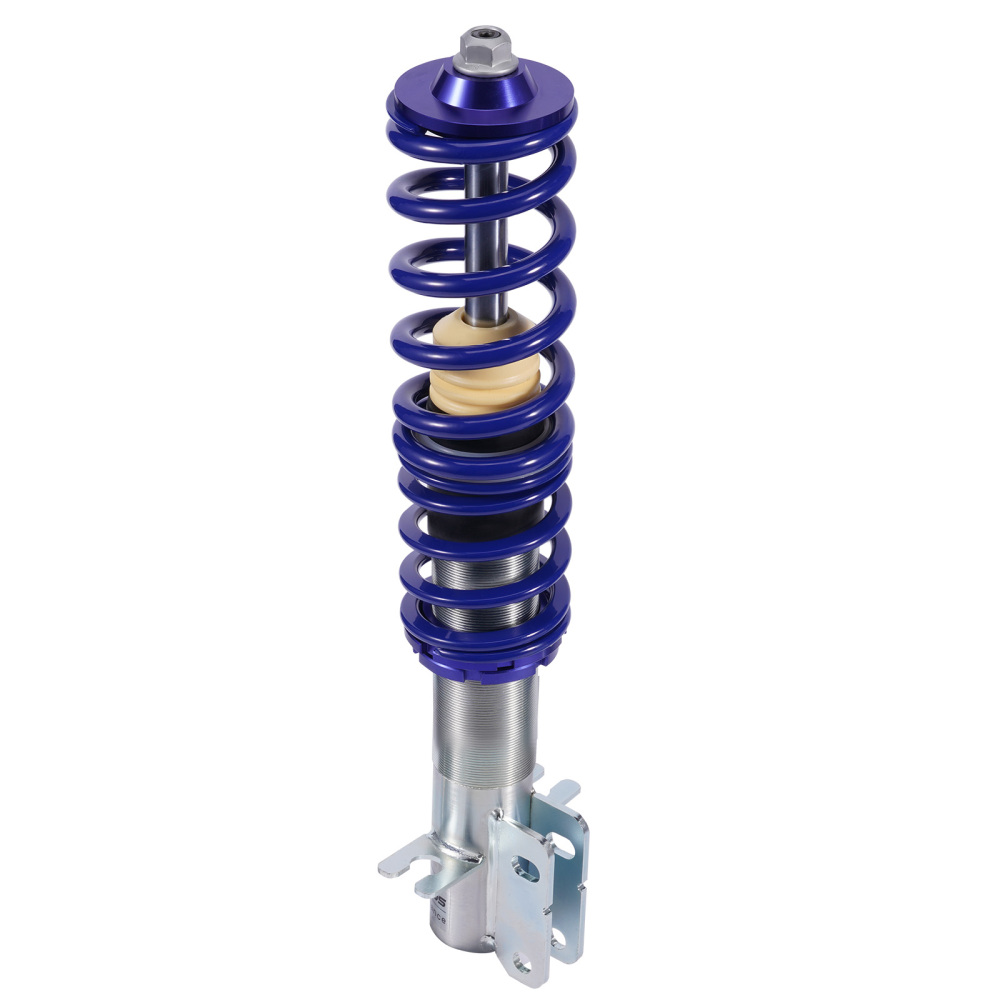

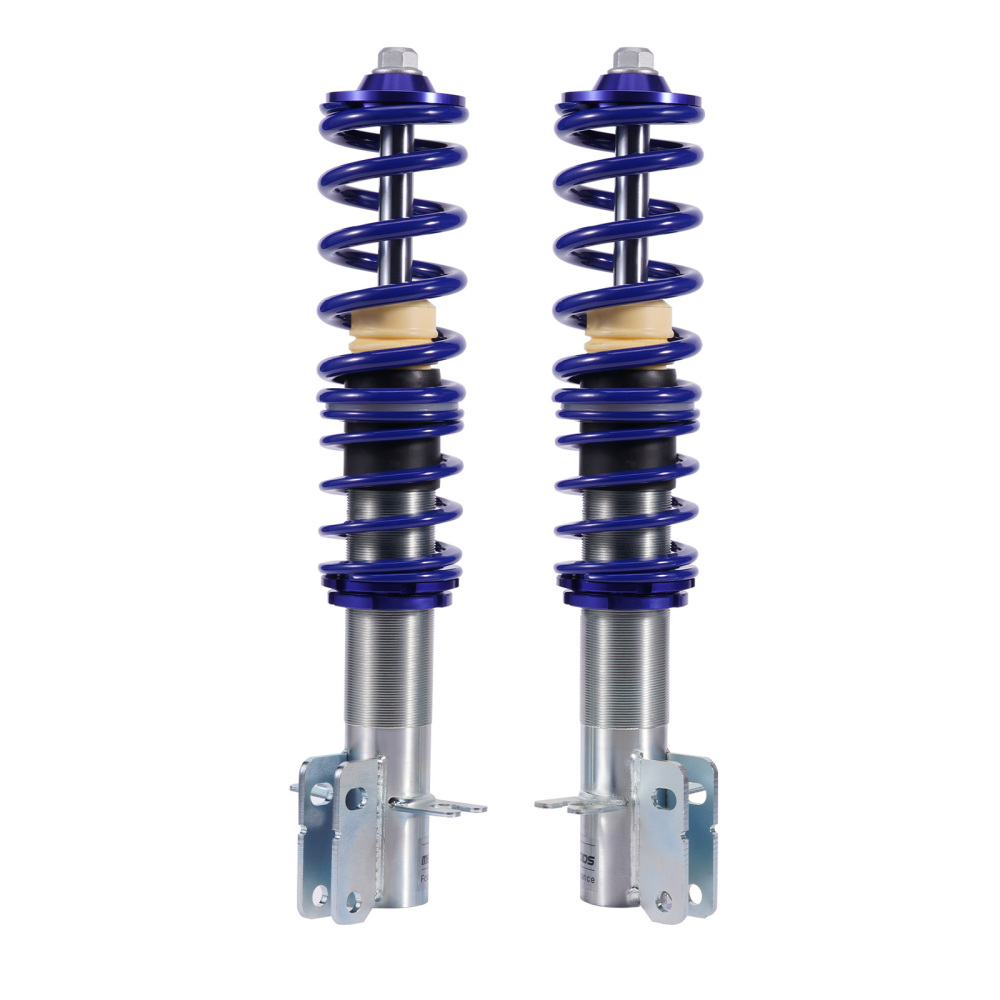

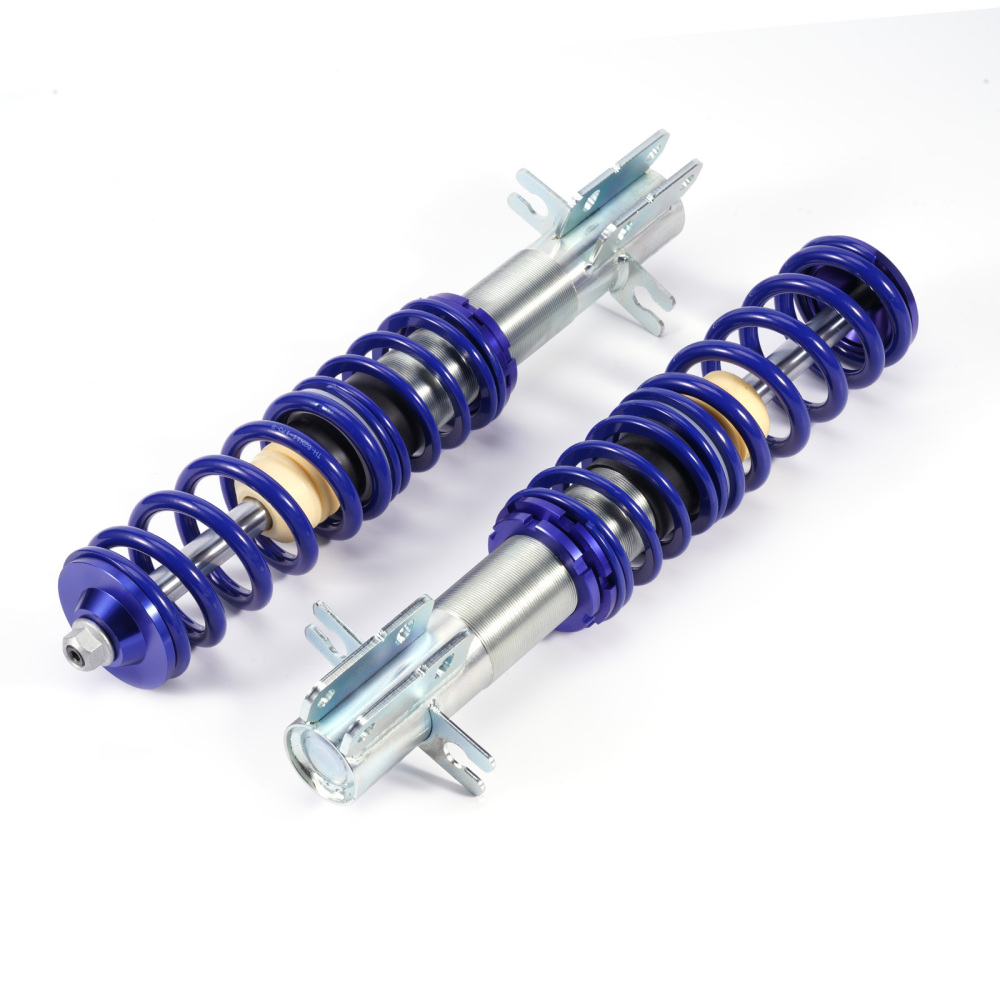

2x Front coil-overs

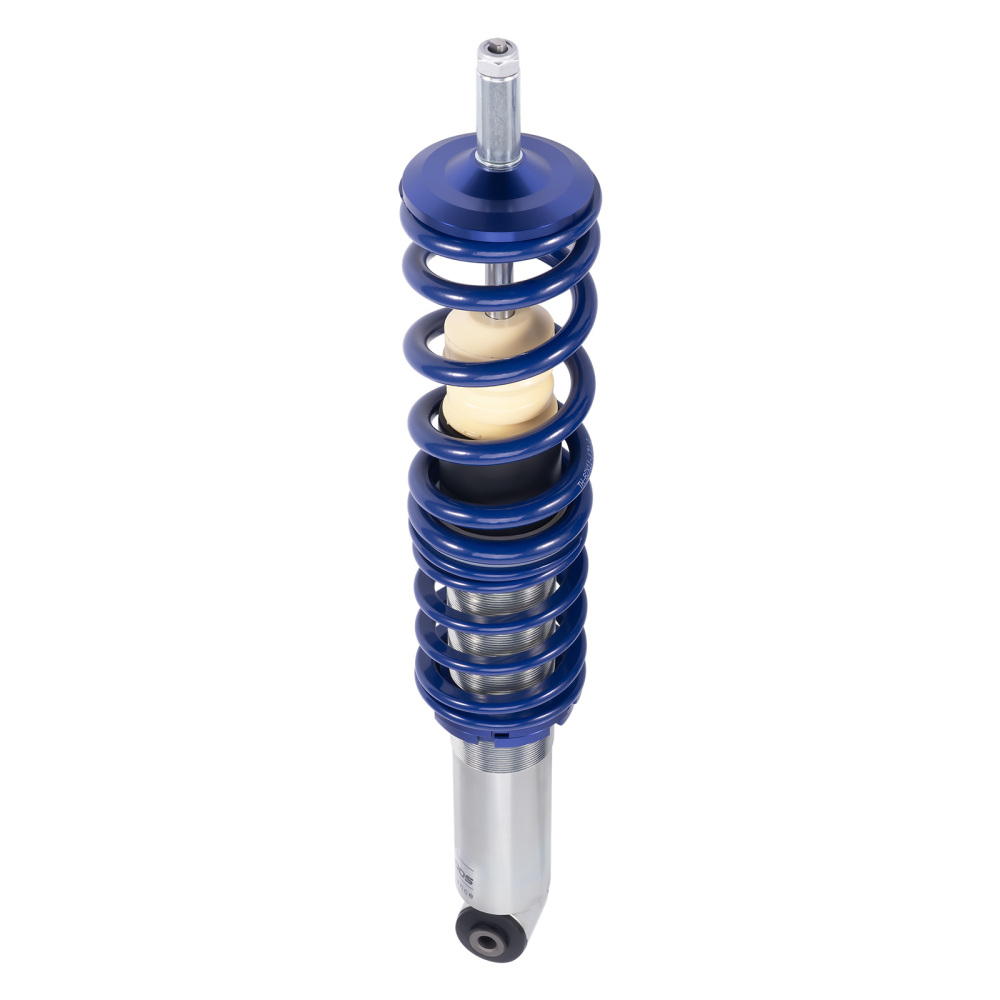

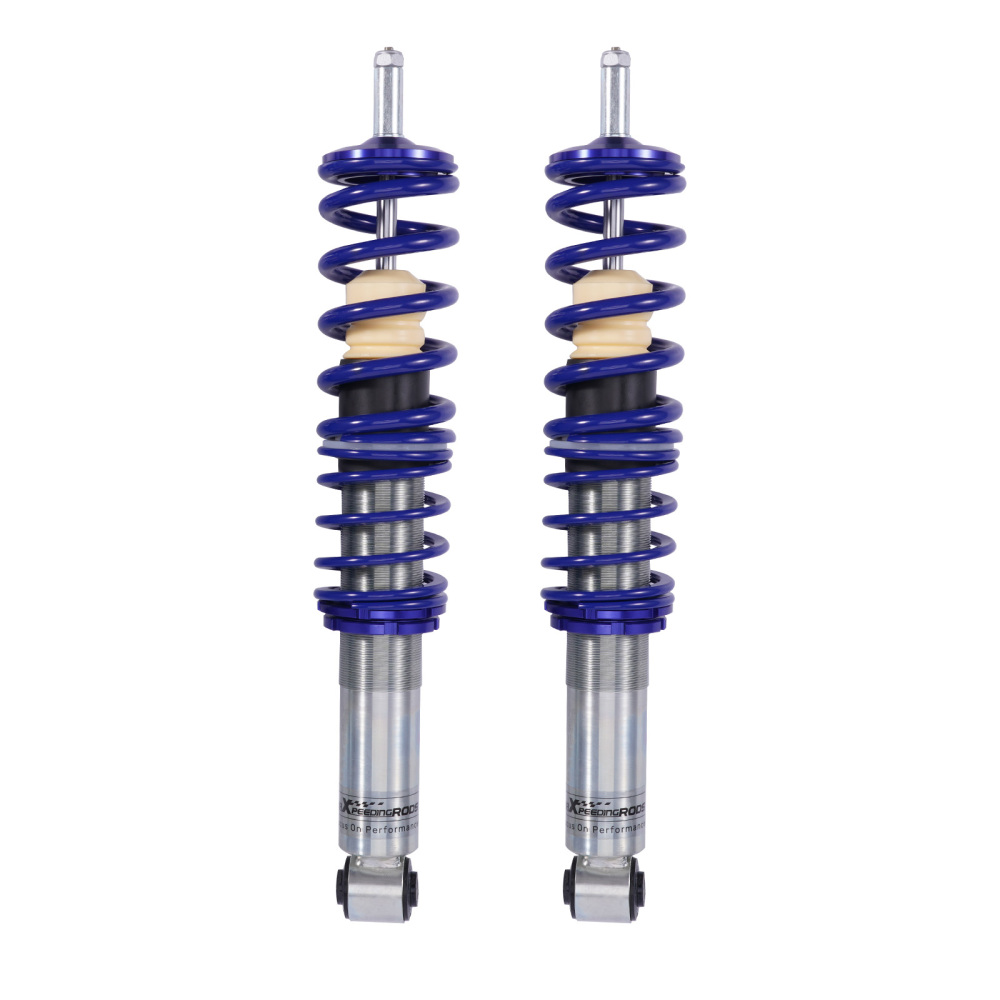

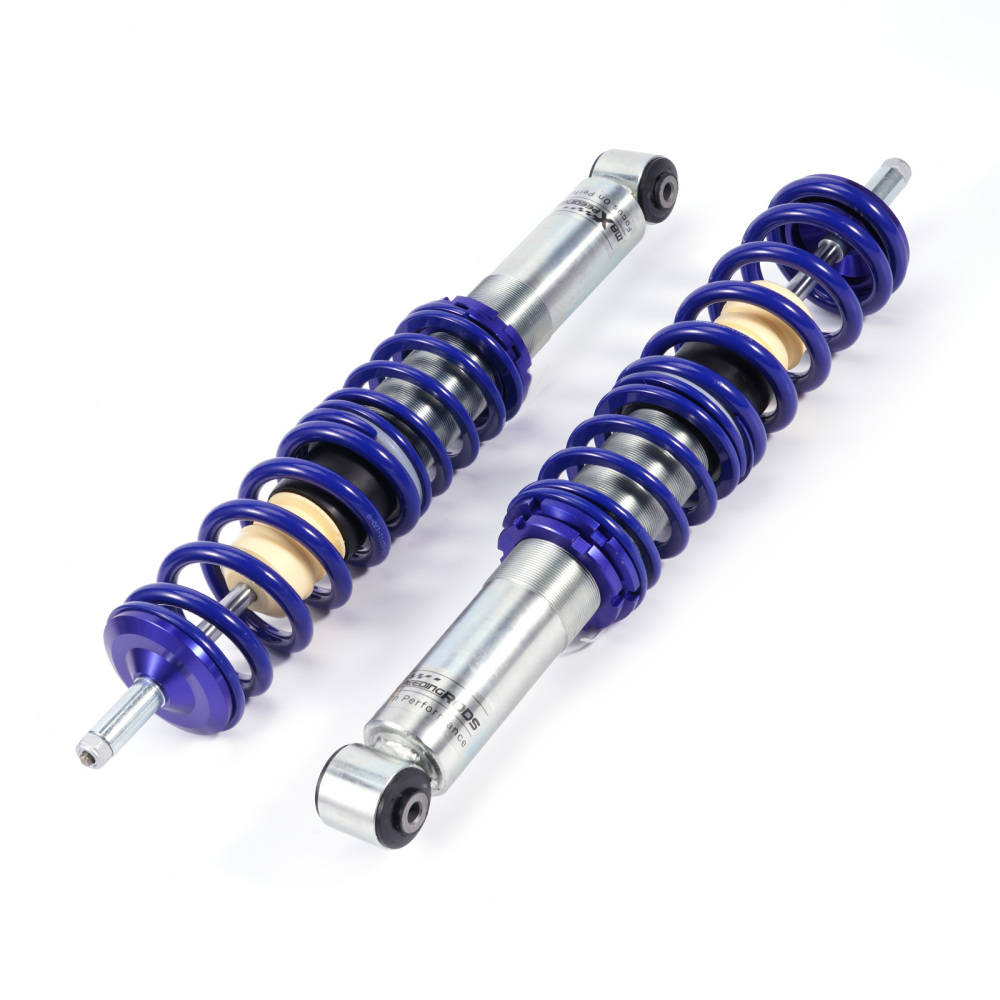

2x Rear coil-overs
2x C spanners
2x Lower mount washers

Dimension

Package size : 62*50*20 cm
Weight: 20450 g

Caratteristica

1. 0-25mm(depends on vehicle models) lower height adjustable

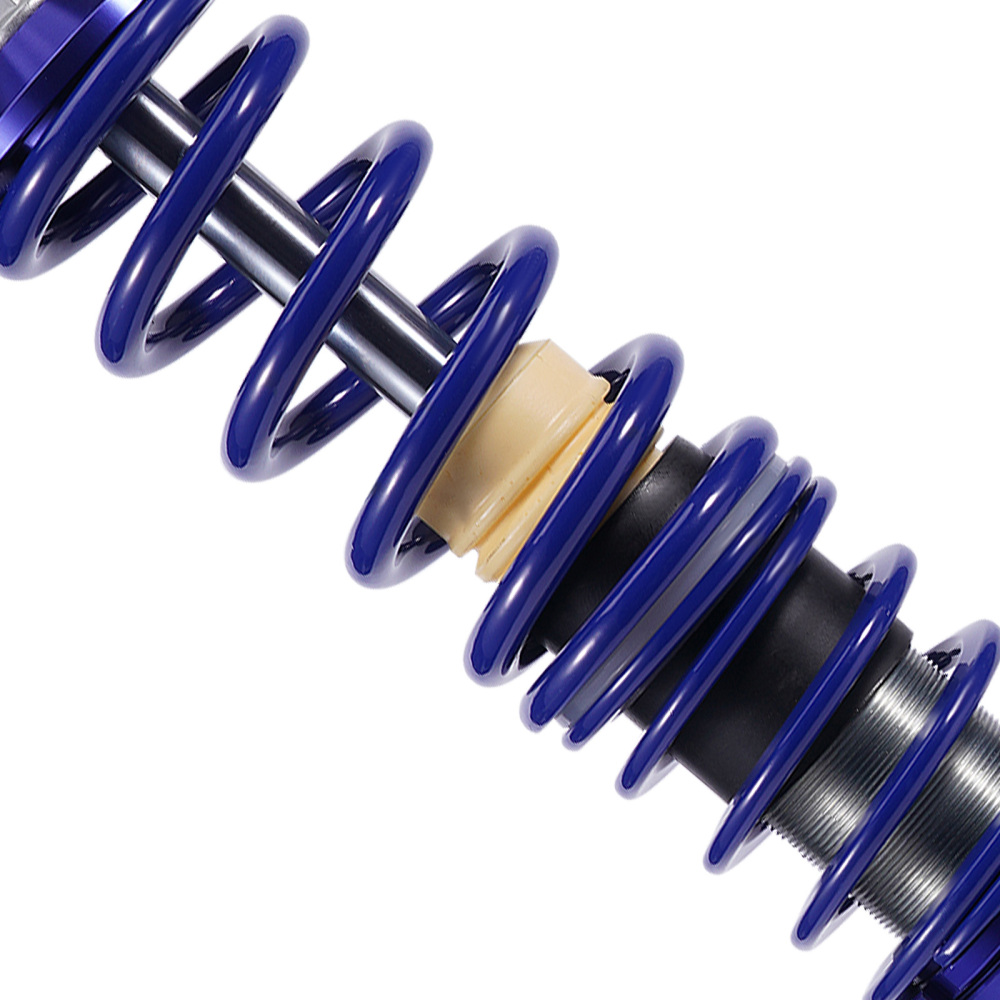

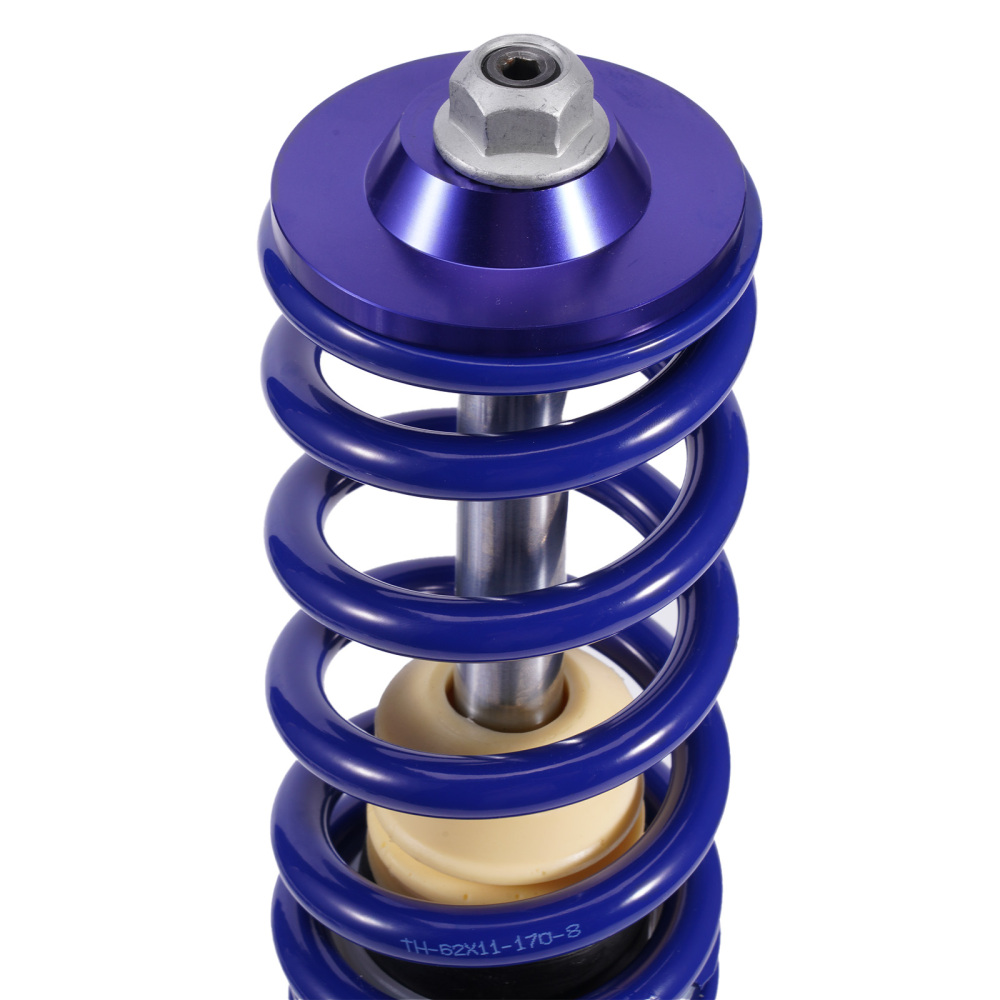

2. Dust boot, solid rubber bump stops

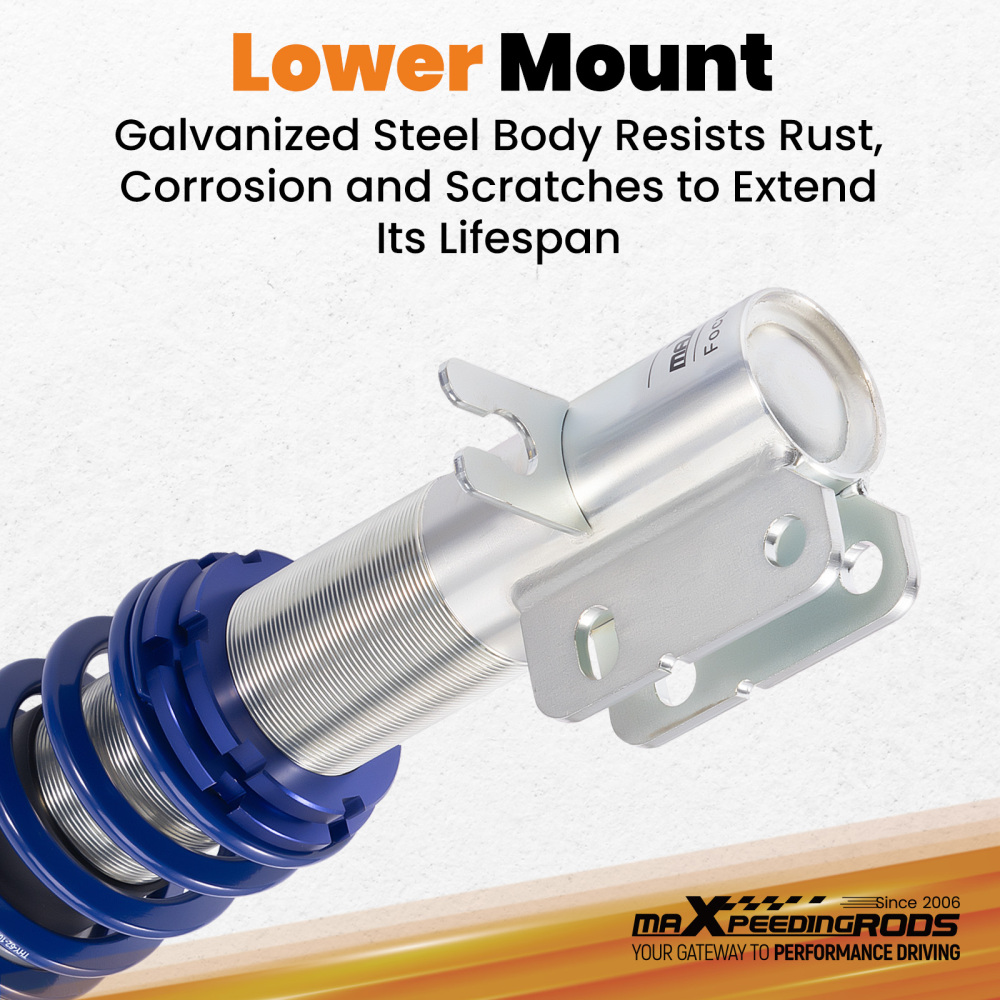

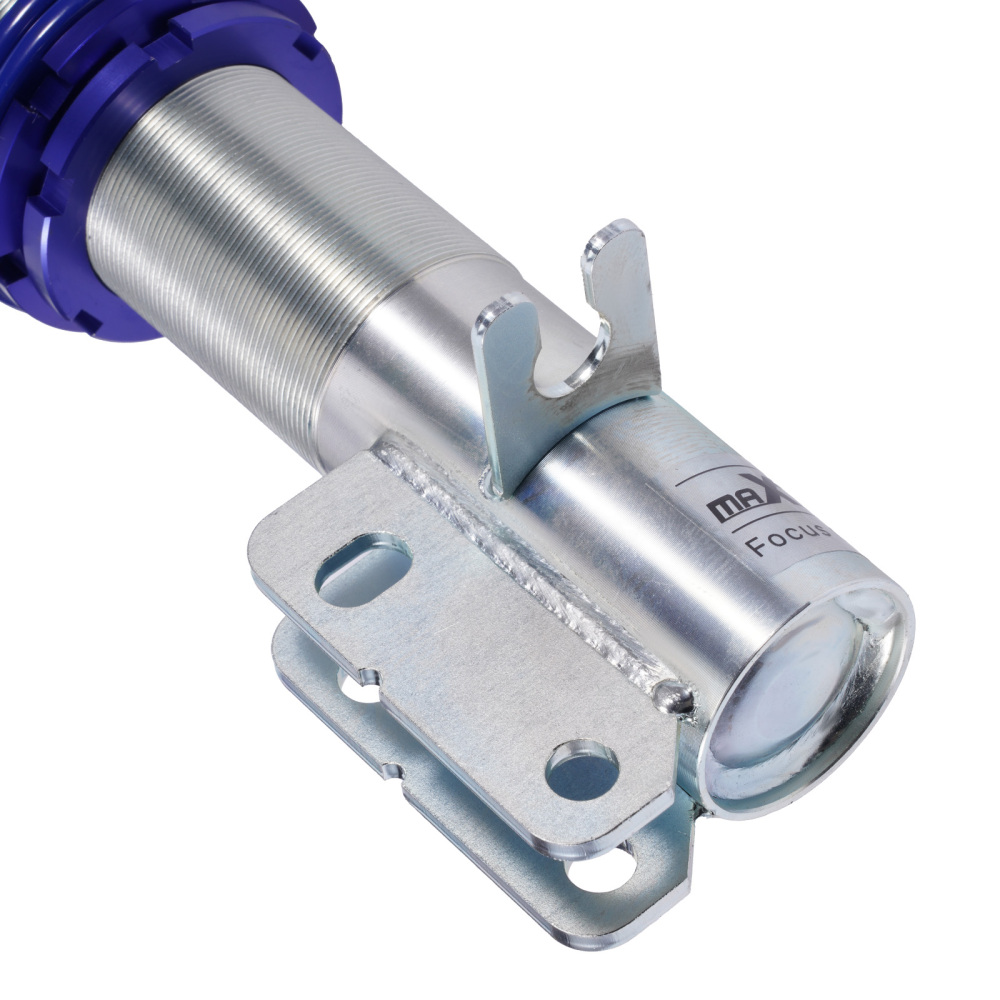

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Nota

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
