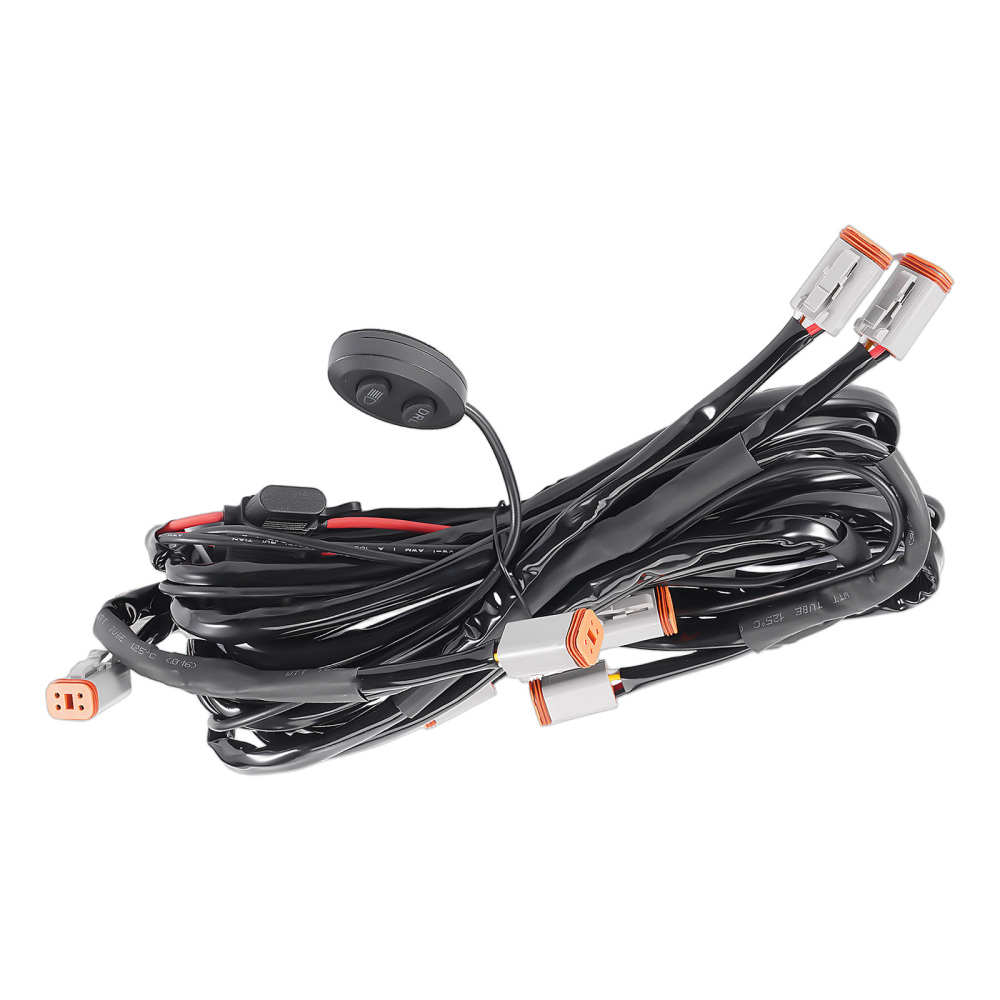

Kit Cablaggio Touch Switch For 8 Luci LED maXpeedingrods DRL 360W 14AWG 3.6M

Applications

For maXpeedingrods Crosshair Series LED Auxiliary Driving Lights with DRL (3.5inch / 5inch). It supports the following Applicazione scenarios:

1. Four pairs of 5-inch Crosshair series DRL off-road lights are spliced ​​on the roof.

With a 1-to-8 configuration, this harness can manage up to Eight lights concurrently

Specifications

Operating Voltage: 12-24V
Maximum Current: 30A+30A
Dual Relay：40A
Maximum Power: 360W+360W/12V，720w+720W/24V
Plug Type: 4-PIN DT Plug
Plugs Quantity: 8

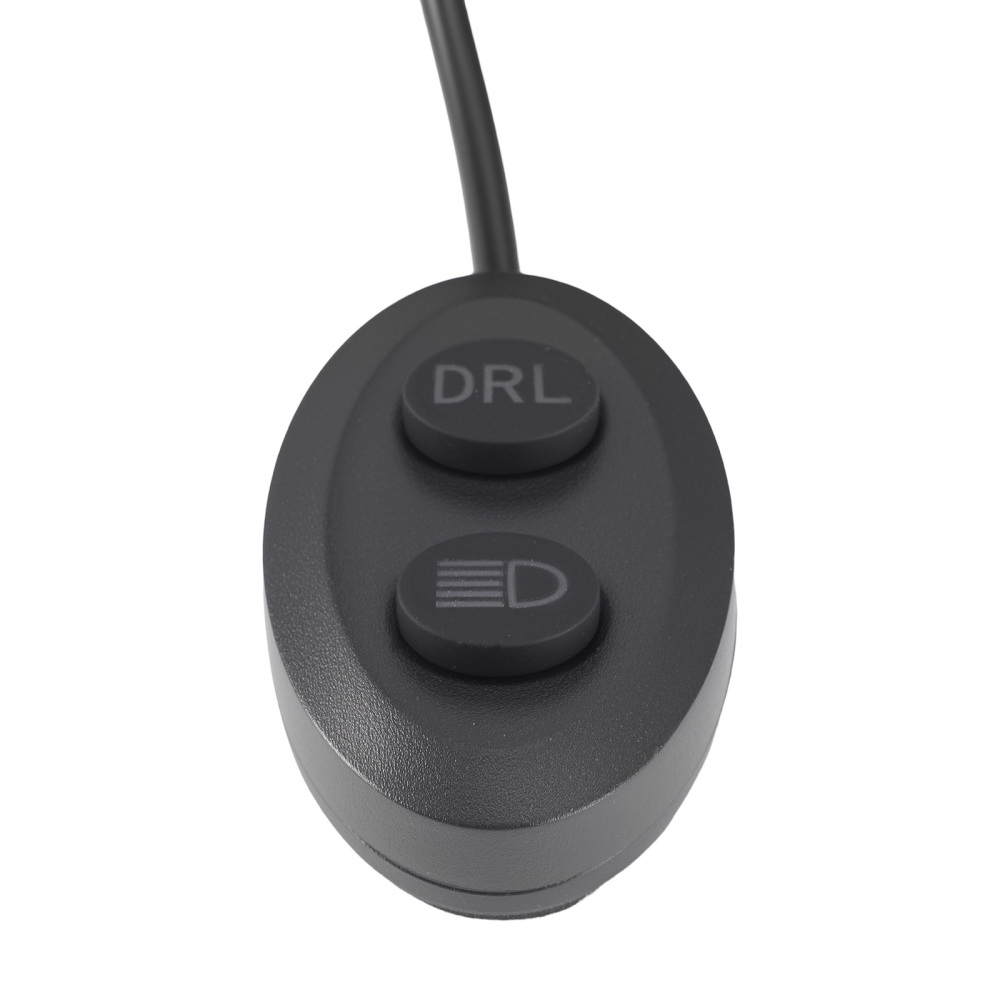

Switch Type: Touch
Material: High Quality PVC + Copper Wire
Wire Gauge: 14AWG
Wire Harness Length: Around 3.6M
Power Supply Way: ACC

Caratteristica
* The professionally assembled wiring harness switch can simultaneous control 8 maXpeedingrods Crosshair series 5inch off-road lights with DRL , more convenient to use.
* Easy to install: Simply plug the matching off-road light DT plug into  the DT plug of the wiring harness，no need to DIY.
* The wiring harness kit made of high quality copper and PVC, equip with relays and high current fuses, which are more safe 、reliable and durable.
* Made of 14AWG Wiring Harness ,The 3.6m long wire is flexible for mounting anywhere you want.

Package Included
1* Wiring Harness Kit

Nota
* Please finish the installation by professionals or install the wiring harness under the guidance of professionals.
* Pay attention to the working voltage range during installation and ensure that the current passing through does not exceed the rated current.
* Does not include an instruction manual.
