VZ21 TURBO TURBINA for SNOWMOBILES QUADS, RHINO, MOTORCYCLES, ATVS VE110069 NEW

Fitment:

For Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm  100HP，
Compatibile per Suzuki ALTO Works with YA1 F6AT Engine，
Compatibile per Suzuki  ALTO Works with 21R707-0011-G1 Engine

OEM & Part Number:

VZ21
VE110069
13900-62D51, 1390062D51
1390062D50, 13900-62D50

Specificazione:

Turbo Model: RHB31
Engine: YA1, F6AT, compatibile per Isuzu 4TNA, 21R707-0011-G1 Engine
Cooled Type: water and oil cooled
Bearing Type: Journal Bearing
fit for: 500 cc to about 1000cc
Internal-wastegate: 15psi
Horse Power: 23-100HP
Compressor wheel
major diameter(outlet exducer): 37.1mm
Compressor Inducer : 24.2 mm
Trim(comp): 42.5
Turbine wheel
major diameter(inlet inducer): 35mm
Turbine Exducer Diameter: 26.7mm
Trim(exhaust): 58.2
Comp A/R: 0.7

Caratteristica:

* Product Material:

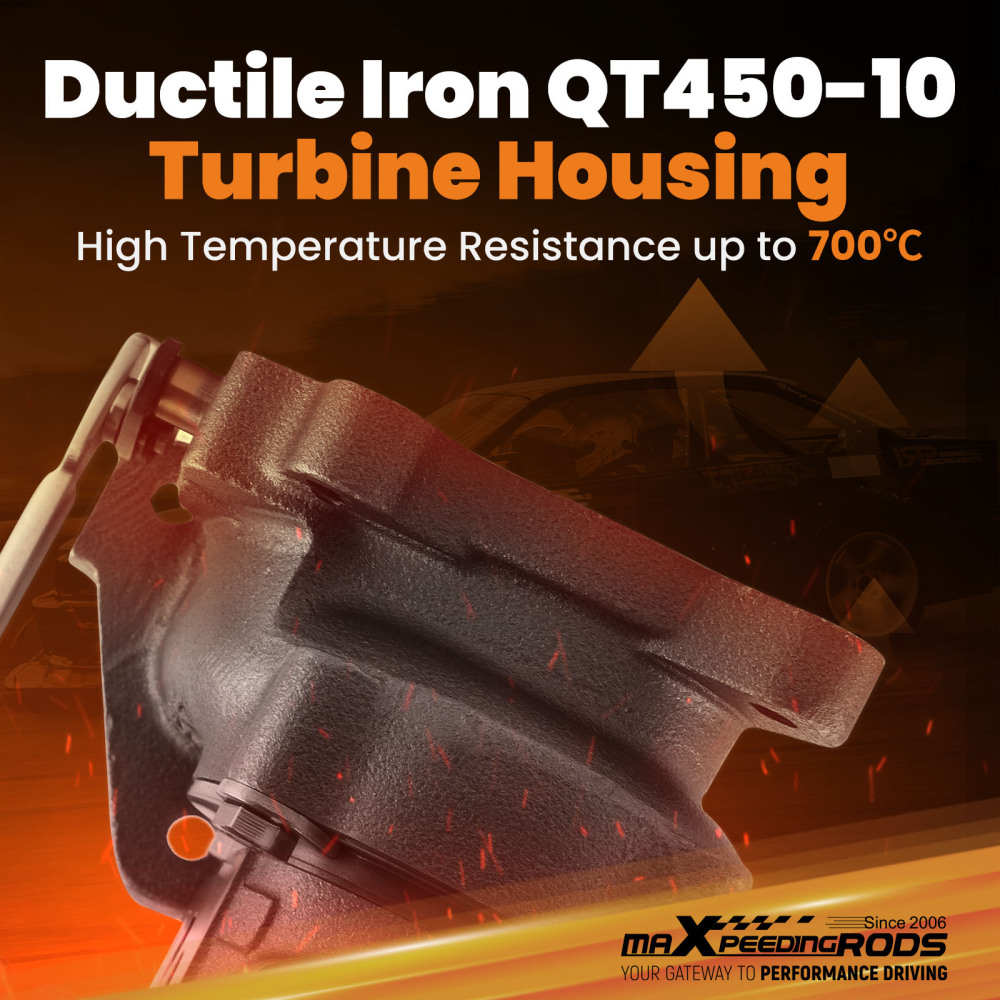

1. Turbine housing: Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

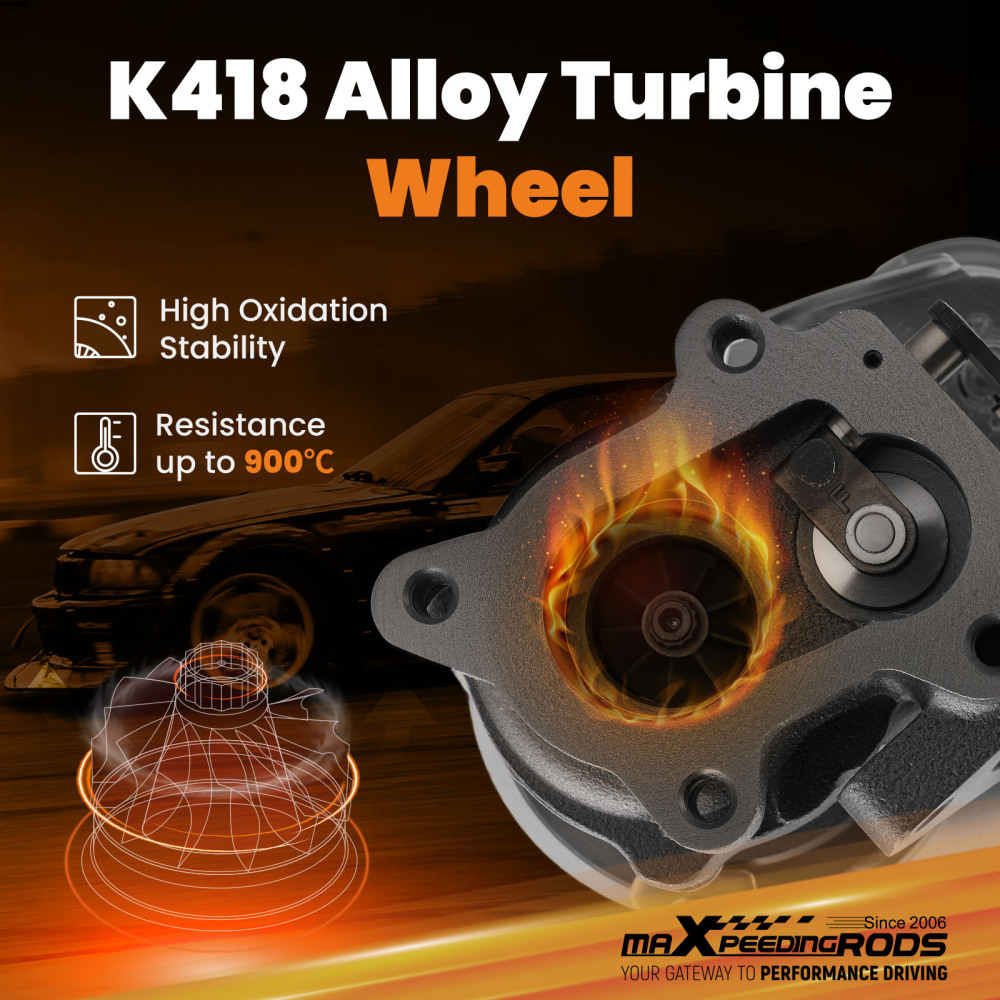

2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

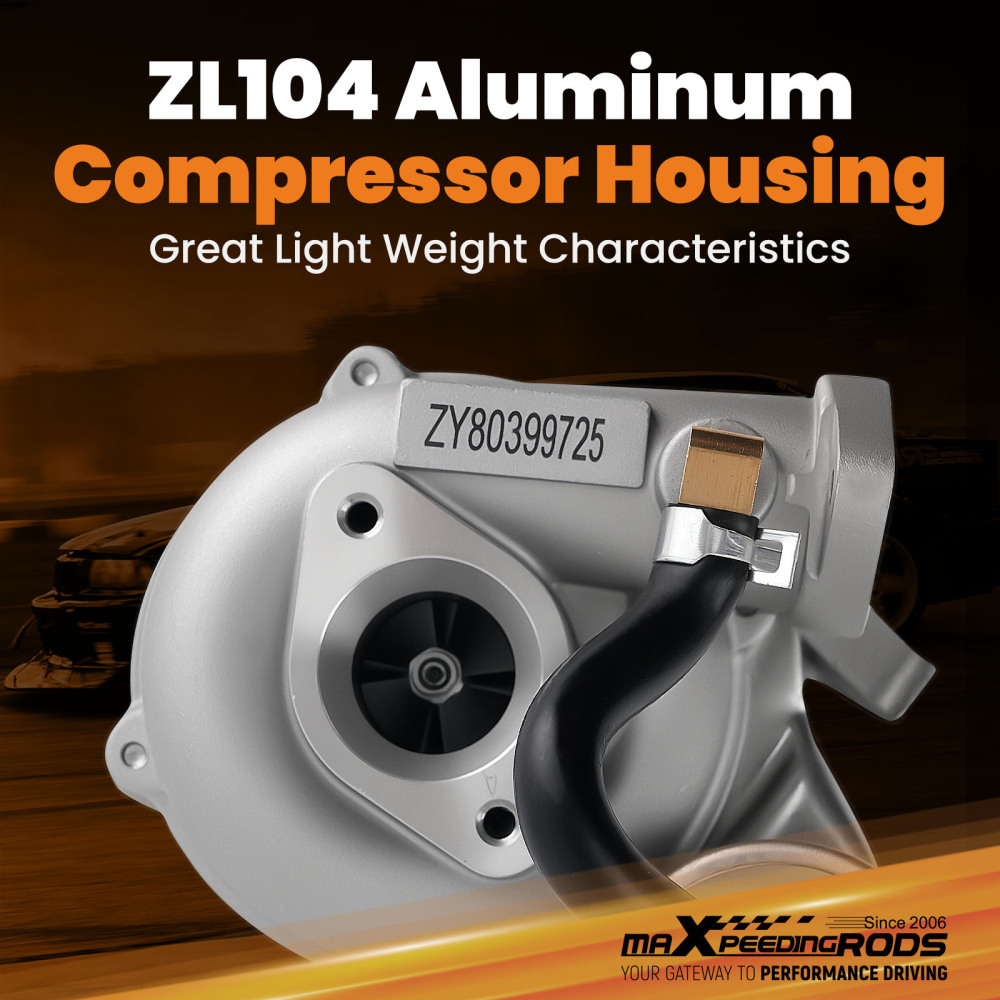

3. Compressor housing: ZL104 aluminum with lightweight

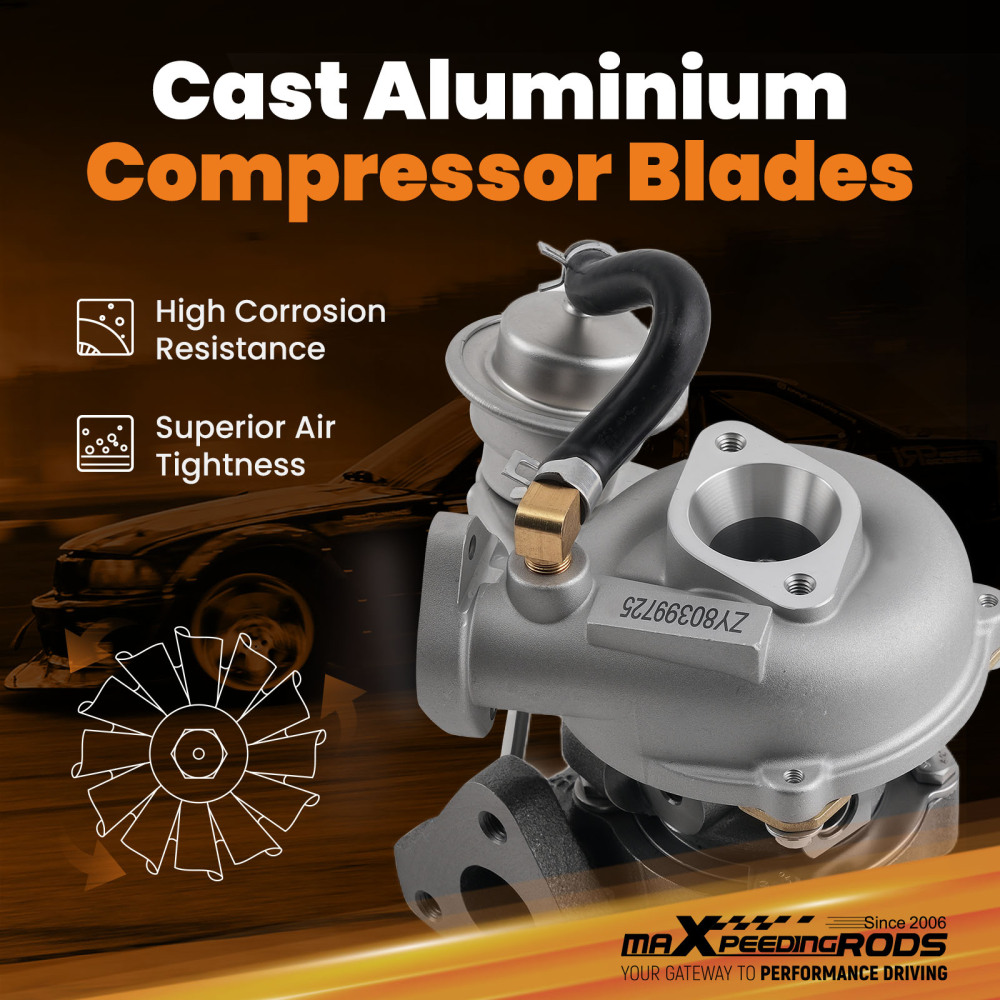

4. Compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance

* Product Features:

1. OEM-quality and size with little modification
2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High Rotor
5. High-Speed Oil Seal Ring

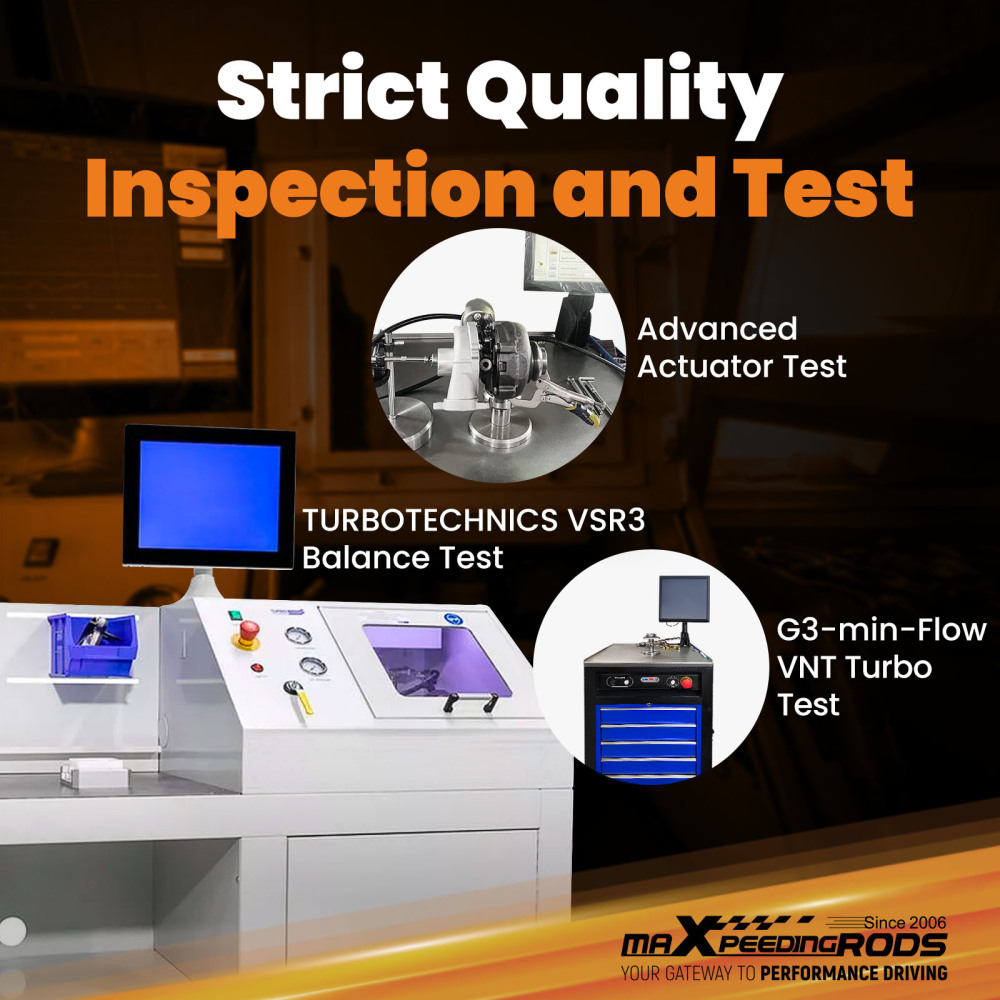

6. Strict Quality Inspection
7. Precision Clearance
8. High-speed Accessories

* All necessary gaskets included for ease of installation

Nota:

* Warranty: one year
* Please confirm your old turbo part number matches up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* It is for repairing or rebuilding the complete turbo
* For any needs please contact us
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
