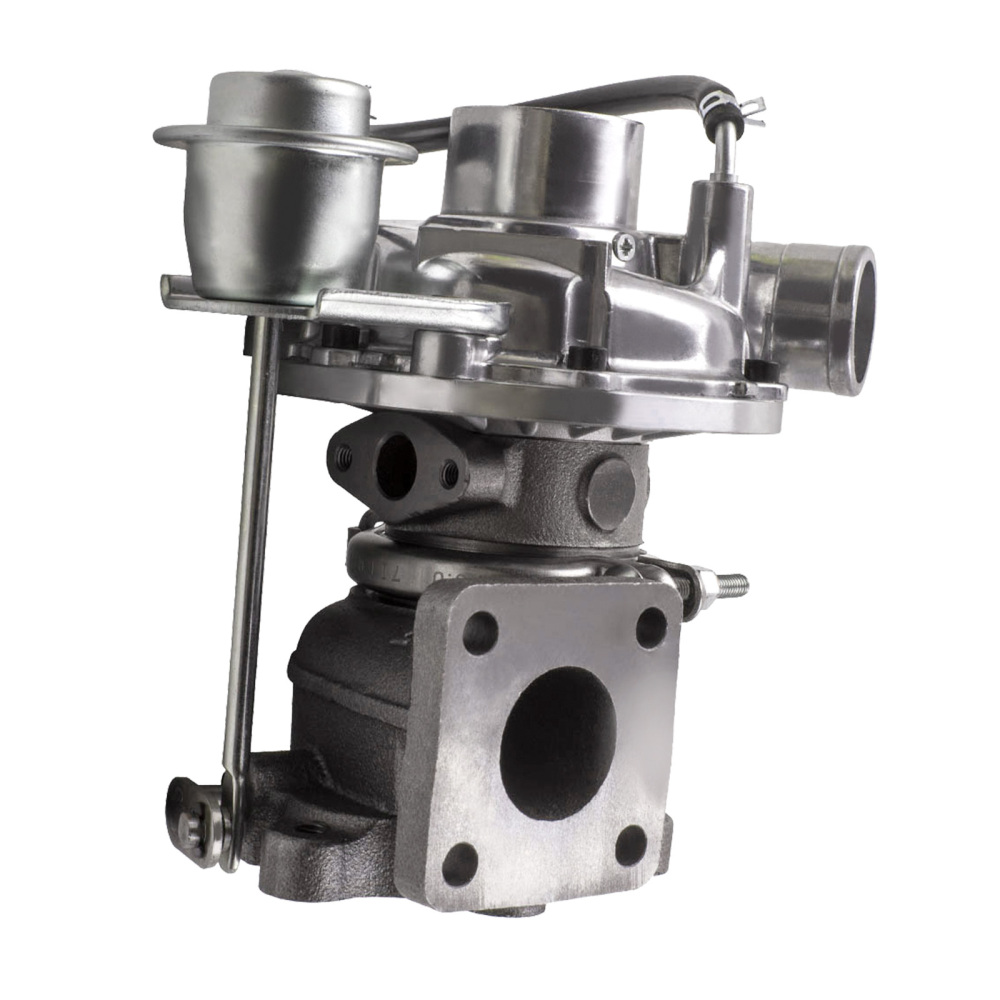

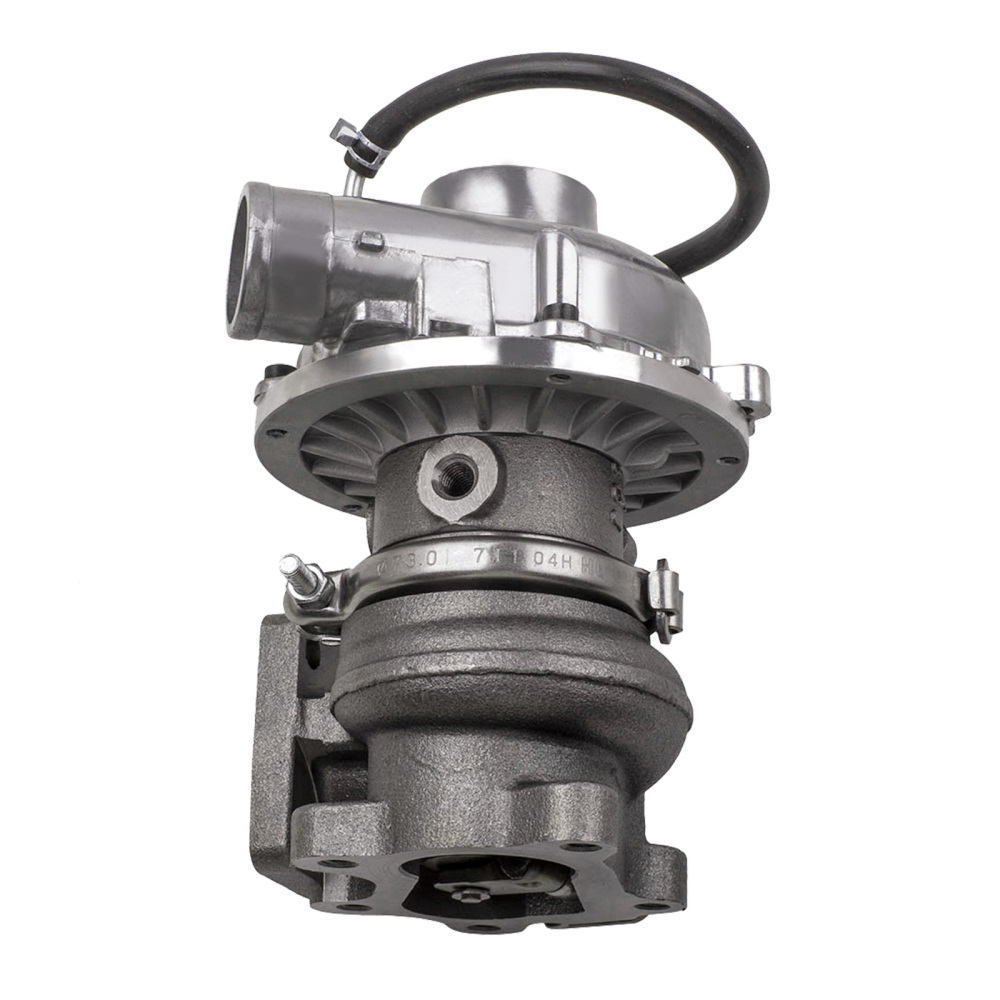

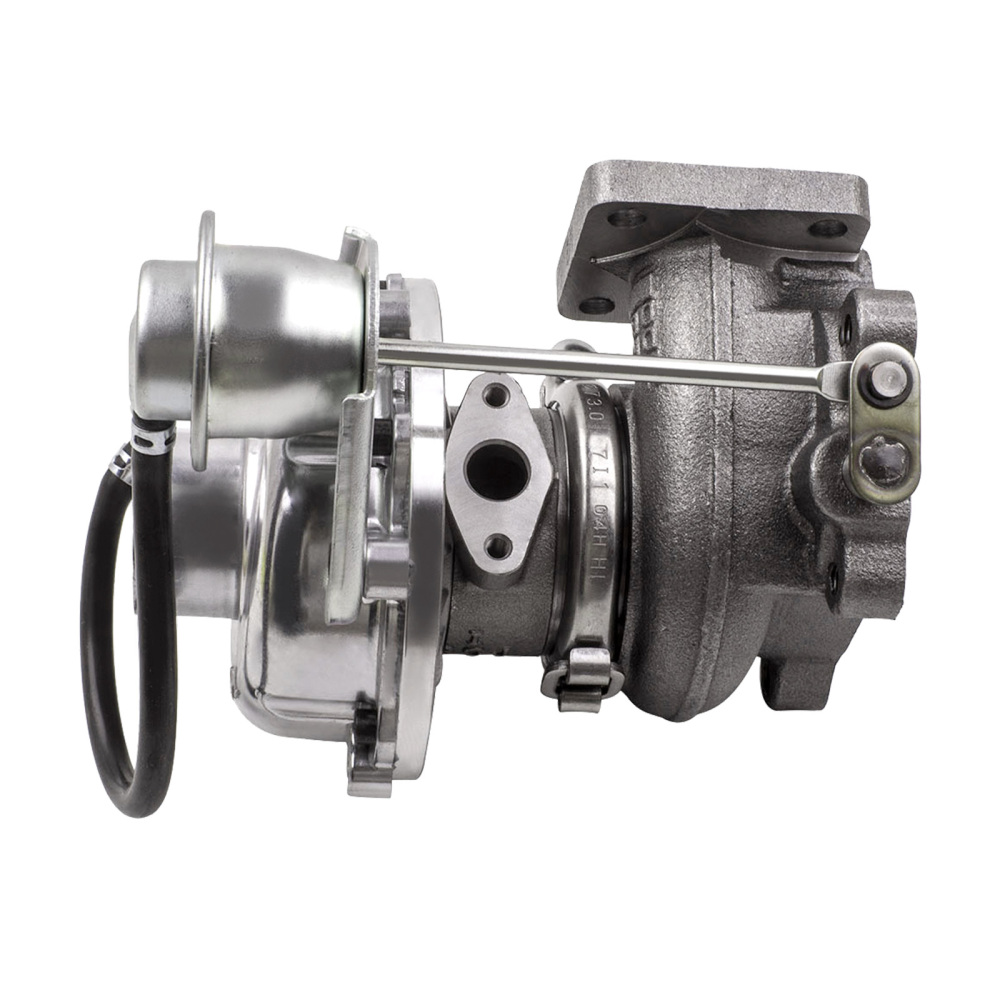

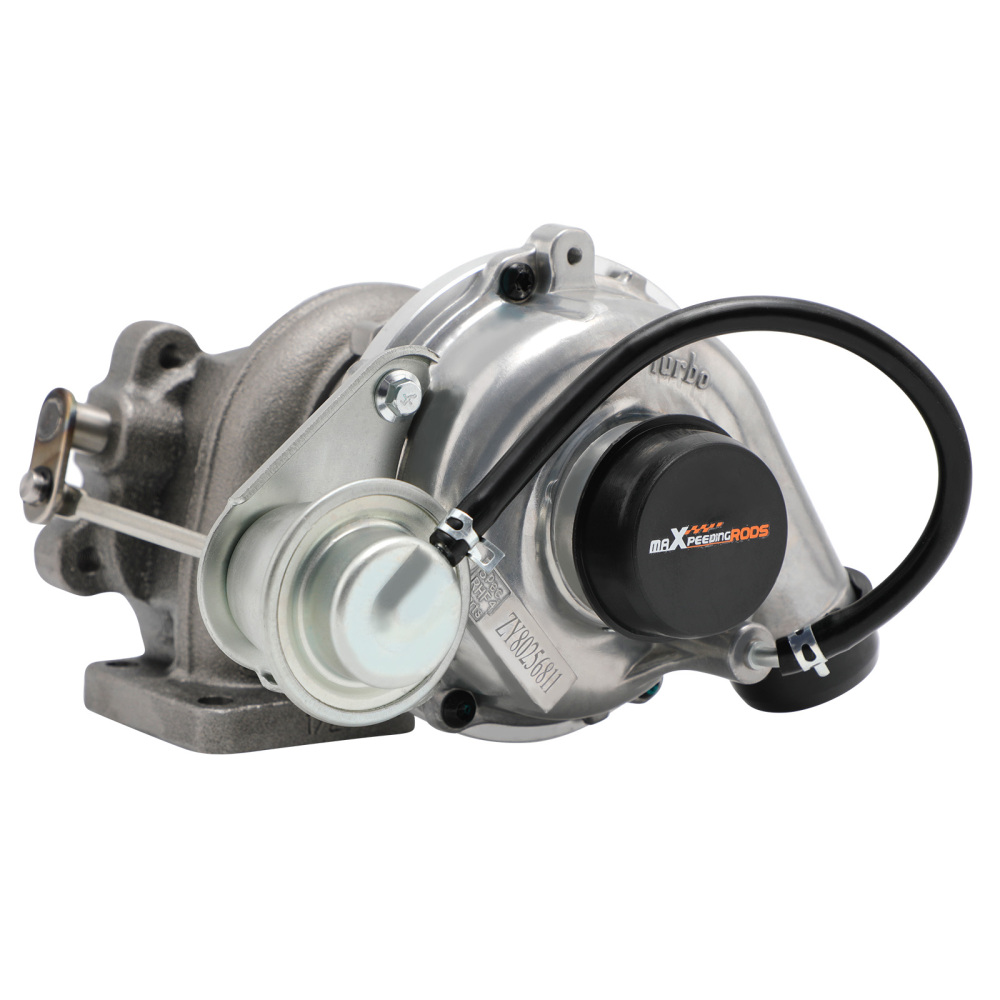

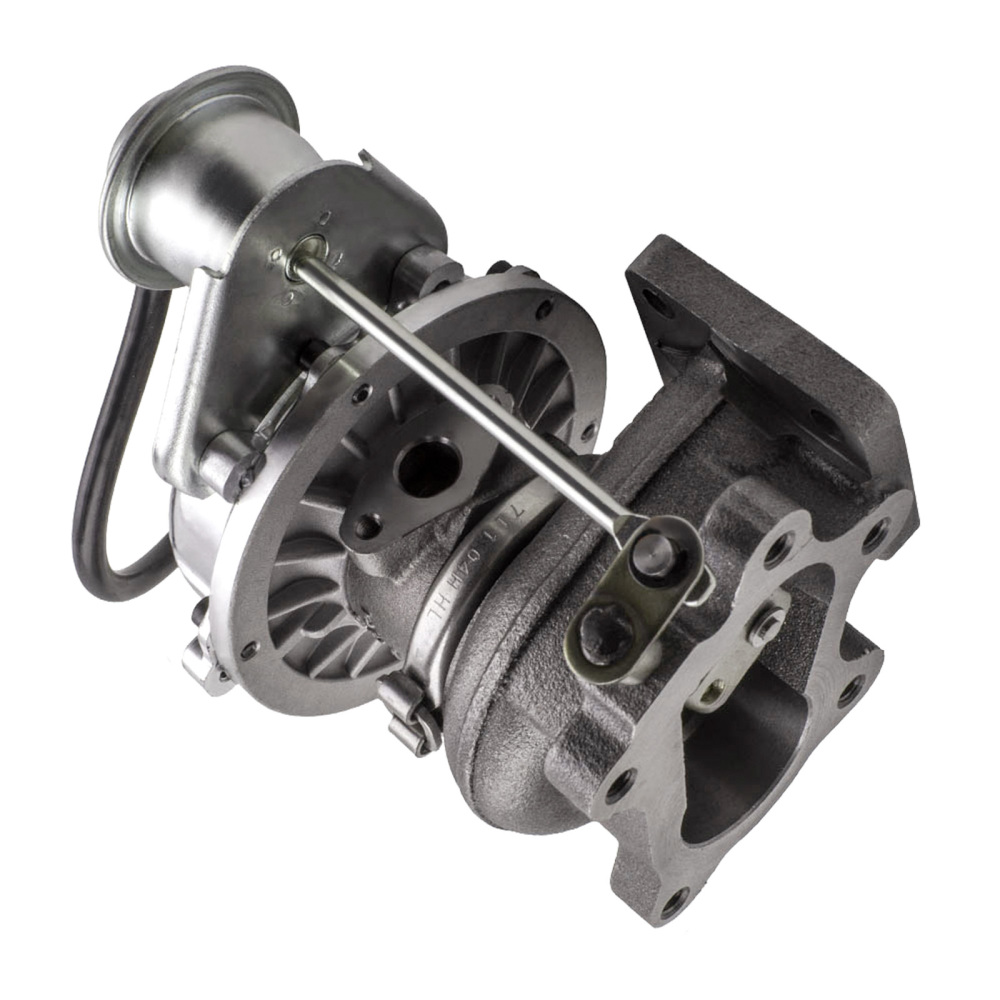

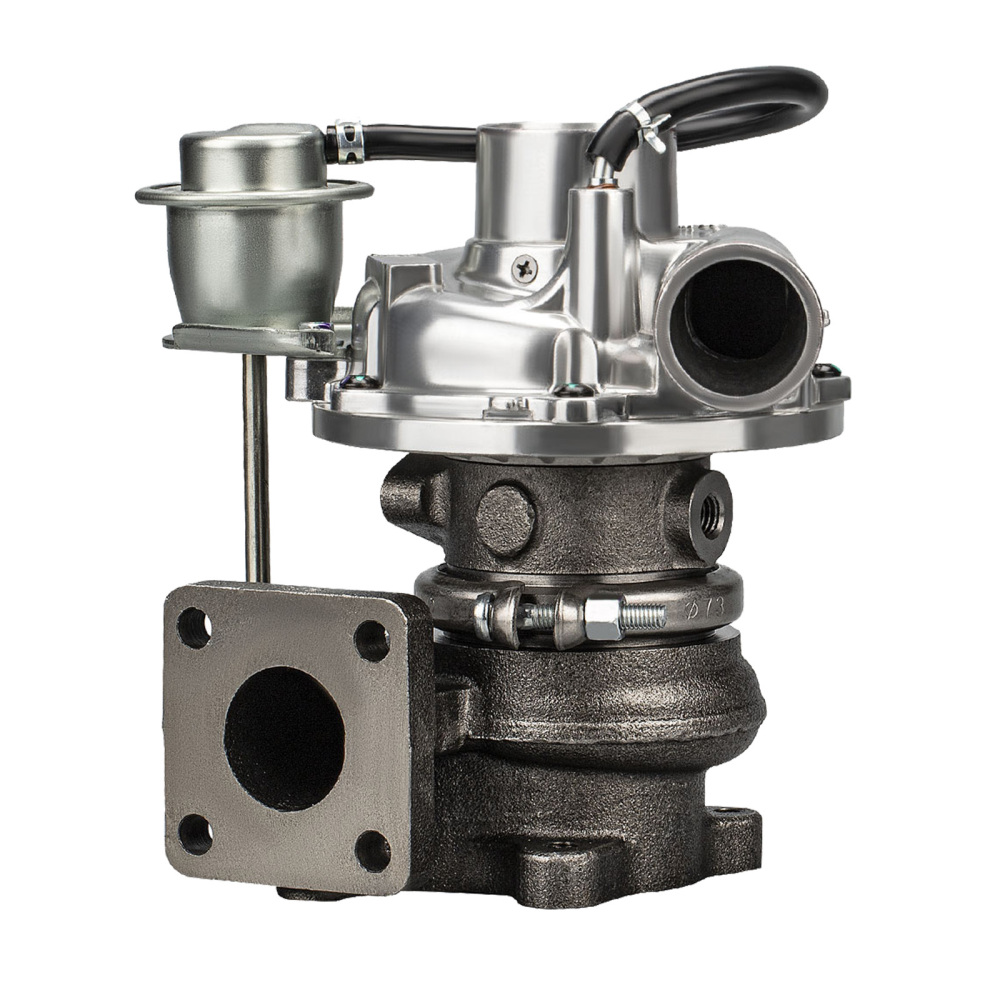

2389349 0104-890-012 Turbo per Shibaura Industriemotor 32 HP AS12 Oil Cooling

Important Notice

In Order to make sure you get the right item, please confirm your OEM NUMBERS match up with one of the Numbers in our description.

Applicazione for

for New Hollander;  Compatibile per CAT 247 Series Skid;
for Terex Loaders, for ASV
for Tractor TC55DA, for SHIBAURA Tractor ST445 etc

OE Numbers:

13575-6180, 135756180, SBA 135756180, SBA-135756180
238-9349, 2389349,
0104-890-012, 0104 890 012, 104890012,
4T-506, 4T 506, 4T-S06, 4T SOG, 4T 50G, 4T-50G, 4T50G, 4TSOG
2390230, 2825179, 3082308,3170981,  3240237, 4429826,
F41CAD-S0081B, F41CAD-S0081G, F41CADS0081B, F41CADS0081G,

Part Numbers:

VA420081, VA 420081, VA-420081,
VB420081, VB 420081, VB-420081,
VC420081, VC 420081, VC-420081,
VD420081, VD 420081, VD-420081,
VE420081, VE 420081,
VG420081, VG-420081,

*HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
 1 . The OEM code information from your original turbo nameplate
 2 . The Engine code & KW , HP , Year for your car
 3 . The Photos of  your complete turbo
 4 . Please Nota that the registration number cannot identify your turbocharger

Specificazione:

Turbo Model: RHF4-46001P8.5NHBRL323CAZ
Shibaura Engine: N844L, N844LT
Motore diesel industriale: modelli 404C-22T e 404D-22
Engine: Models 3024C, C2.2T
Machine Engine: 3024C, C2.2
Industrial Engine: 3024, 3024C, C2.2
Multi Terrain Loader: 247B, 257B
Multi Terrain Loader: 247B2, 257B2
Displacement: 2.2L, 2200 compatibile per ccm, 4 Cylinders
Fuel:  Diesel
Cooling Type: Oil Cooling
Bearing Type: Floating Bearing
Exhaust Outlet () Flange: 5-Bolt
Compressor Wheel Diameter: 46.1/30.5 mm
Compressor Trim: 43.8
Turbine Wheel Diameter: 45.8/35.55 mm
Turbine Trim: 60.2
Horsepower Rating: up to  45HP
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight: 4300g
Package Size: 26*24*23cm

Caratteristica:

*Product Material
1. Turbine housing: Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance

*Product
1. OEM-quality and size with little modification
2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High Rotor
5. High-Speed Oil Seal Ring
6. Strict Quality Inspection
7. Precision Clearance
8. High-speed Accessories

*All necessary gaskets included for ease of installation

1. 100% balancing Test by TURBOTECHNICS  VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.

3.  Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Nota:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
