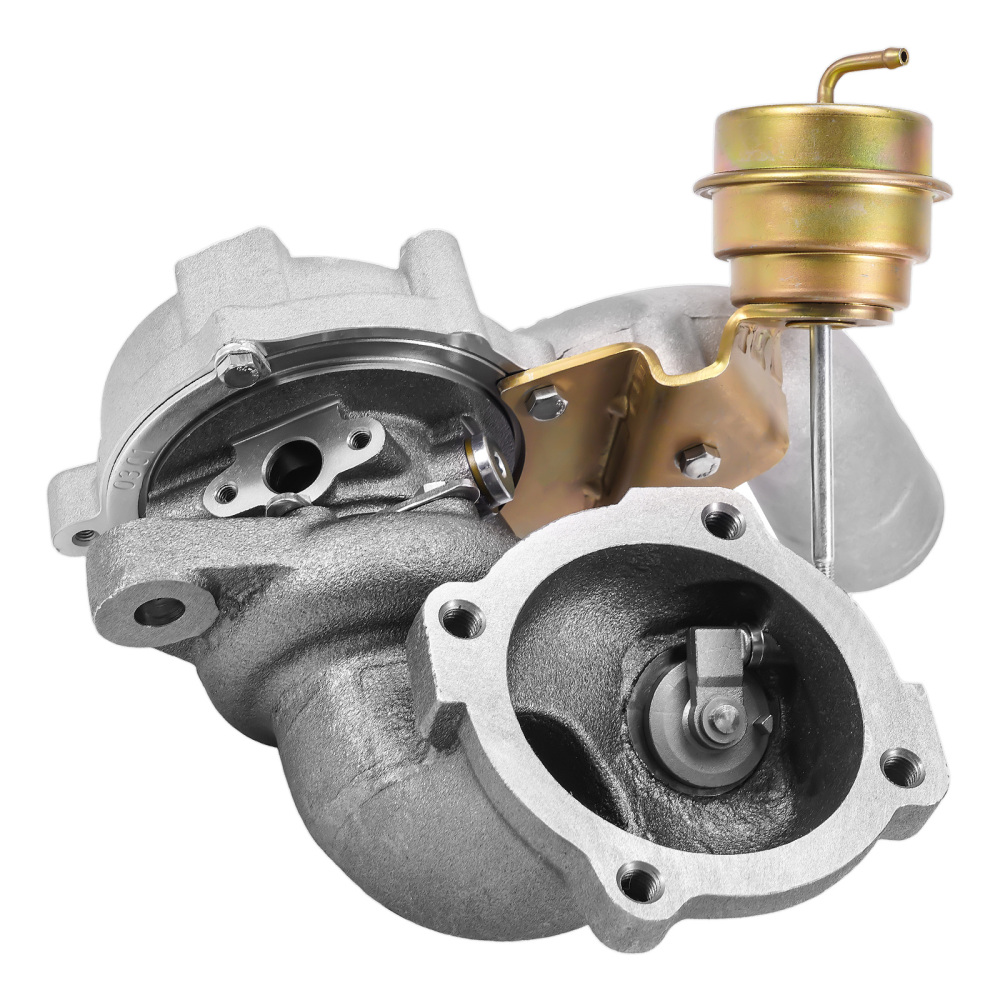

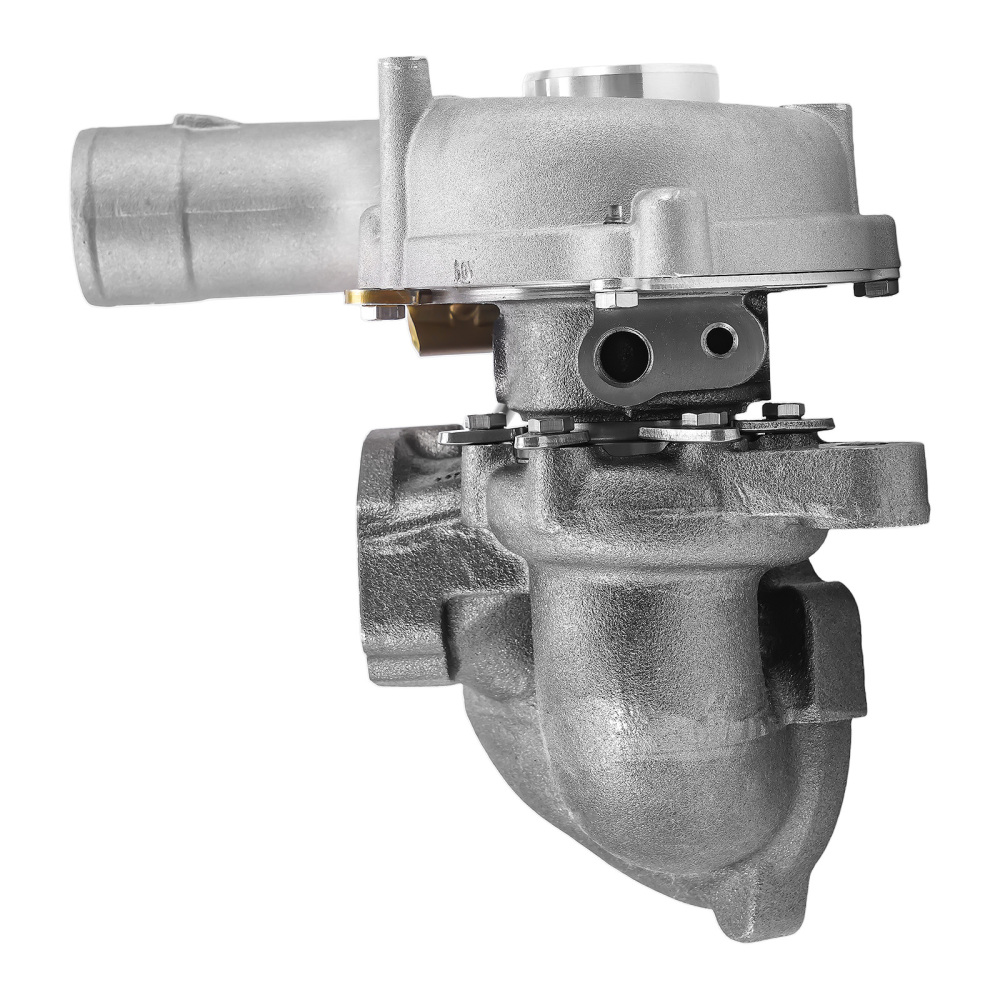

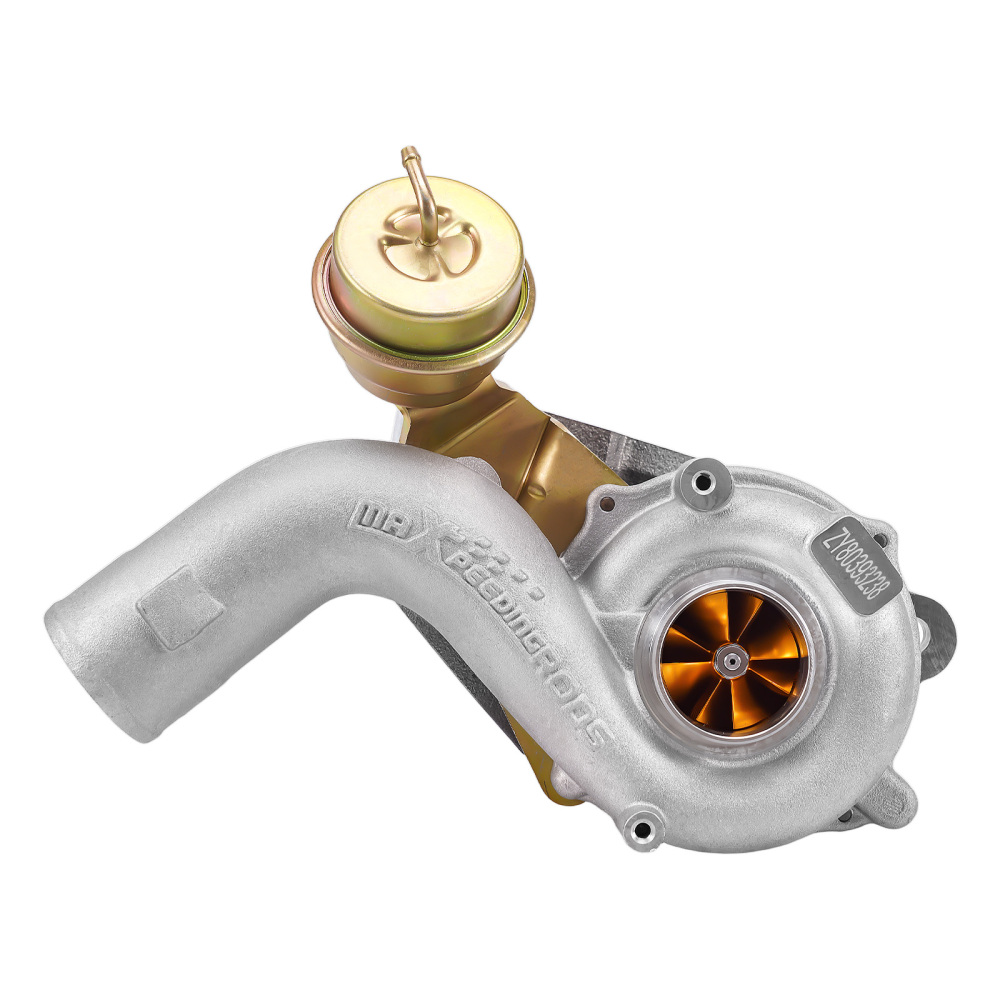

K04 KO4 Turbocharger compatibile per Golf GTI Jetta GLI MK4 1.8T Turbo Billet Wheel Upgrade

Application

K04 model:
Compatibile per Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009
Compatibile per Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009
Compatibile per Volkswagen BEETLE, compatibile per Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009

Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04 compressor inlet is bigger than K03 model）:
1. Compatibile per Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003
2. Compatibile per Audi A3 with AUQ, ARZ, APP engine 132 KW, 180 PS 1996-2003
3. Compatibile per Audi TT with AUQ engine 132 KW, 180 PS 1998-2006
4. Compatibile per Seat Leon with AJQ; APP; ARY; AUQ engine 132 KW, 180 PS 1998-2006
5. Compatibile per Skoda Octavia AUQ engine 132 KW, 180 PS 2001–2005
6. Compatibile per Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine 2000-2009
7. Compatibile per Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05

*IMPORTANT NOTICE:
1.This is an upgraded K04 turbo for K03-053 & K03 -052.Do not for K04-022.
2.K04 -001 turbo is different from K03-052 ＆ K03-053
（1）some modification are needed，compressor intake size is bigger than K03-052 or K03-053
K03-052 ＆K03-053 compressor intake size is 45mm
K04-001 compressor intake size is 48.7mm
（2）Silicone hose may need for K04-001 compressor intake connection.
3.Make sure your OE number is correct for K04-001,K03-052 and K03-053

OE/Part number

K04-001 part number/OE number:
53049500001,5304-950-0001, 5304 950 0001,
53049887501,5304-988-7501, 5304 988 7501,
06A-145-705HP, 06A145705HP,

*IMPORTANT NOTICE:
This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)
K03-052 Part/OE number:
53039700052,5303 970 0052,5303-970-0052,
53039880052,5303 988 0052,5303-988-0052,
53039880094,5303 988 0094,5303-988-0094,
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX,8299299564, 8299299564,

K03-053 Part/OE number:
53039880053,5303 970 0053,5303-970-0053,
53039880058,5303 988 0058,5303-988-0058,
06A145681H,06A145702P,06A145704S,
06A145713B,06A145713L,06A145713M,

Specification

Turbo Model: K04-001
Engine Model: 1.8L-5V
Engine Code: AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: 162KW/220PS
Turbo Type: Individual
Universal Fitment: No
Finish:Matte
Compress Inlet Size(Air intake): 19.17 inch (48.7mm)
Compressor Outlet Size: 20.47 inch (52mm)
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:30 x 27 x 24cm
Package Weight: 6900g

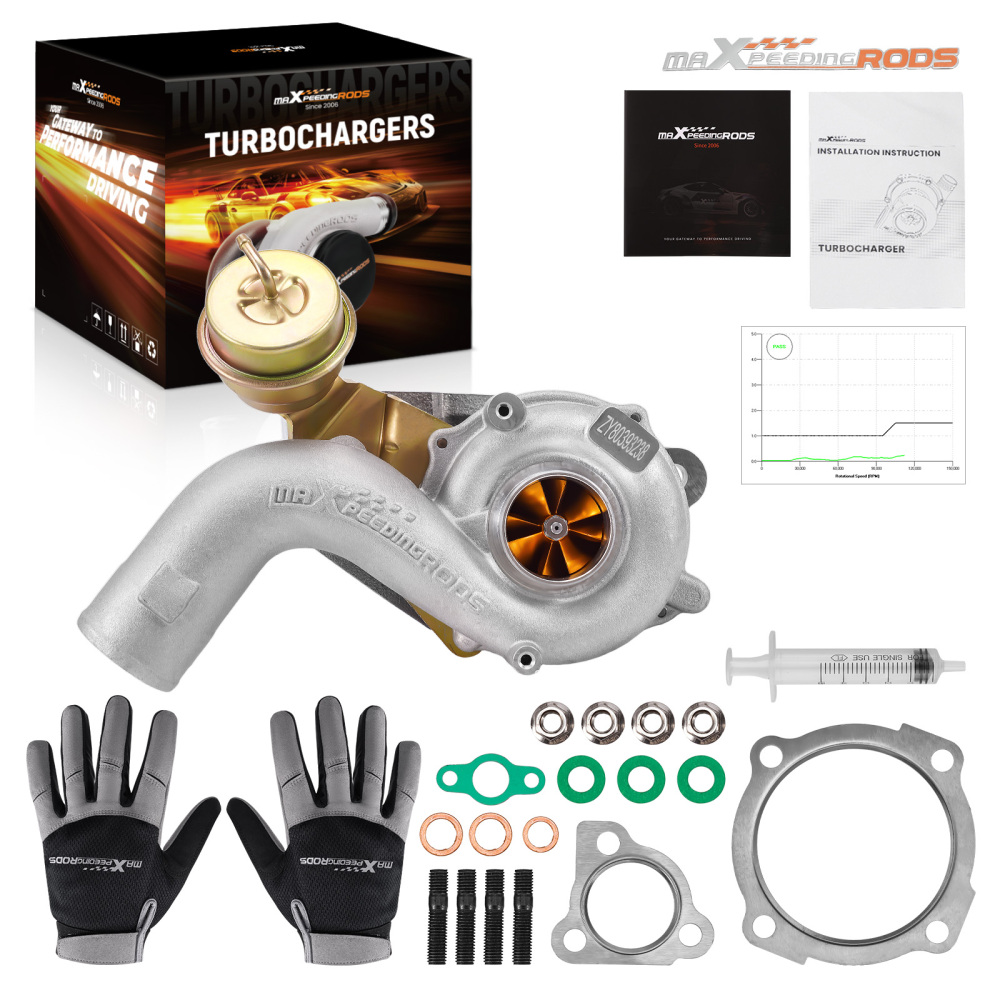

Package included

1xTurbocharger
2xFlange gasket
2xOil port gaskets
1xManual
1xBrochure
1xSticker

Feature

*Product Material

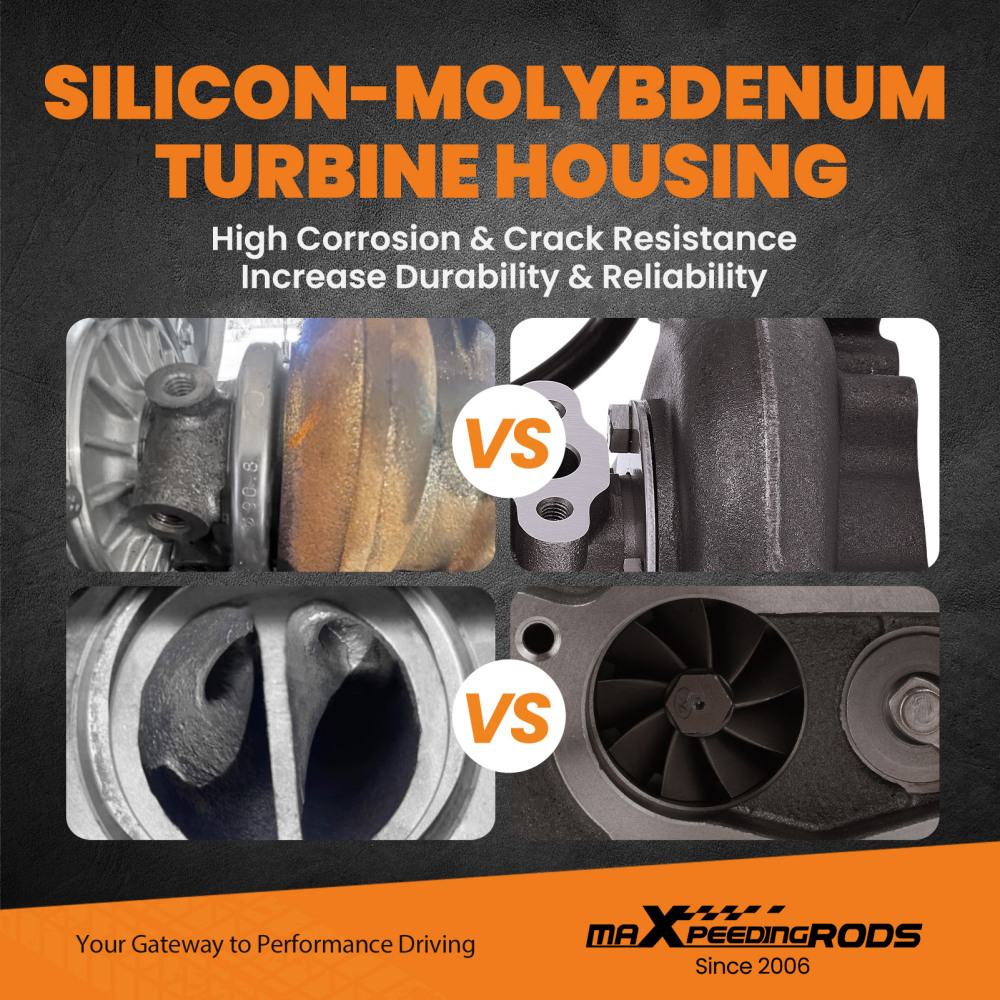

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃

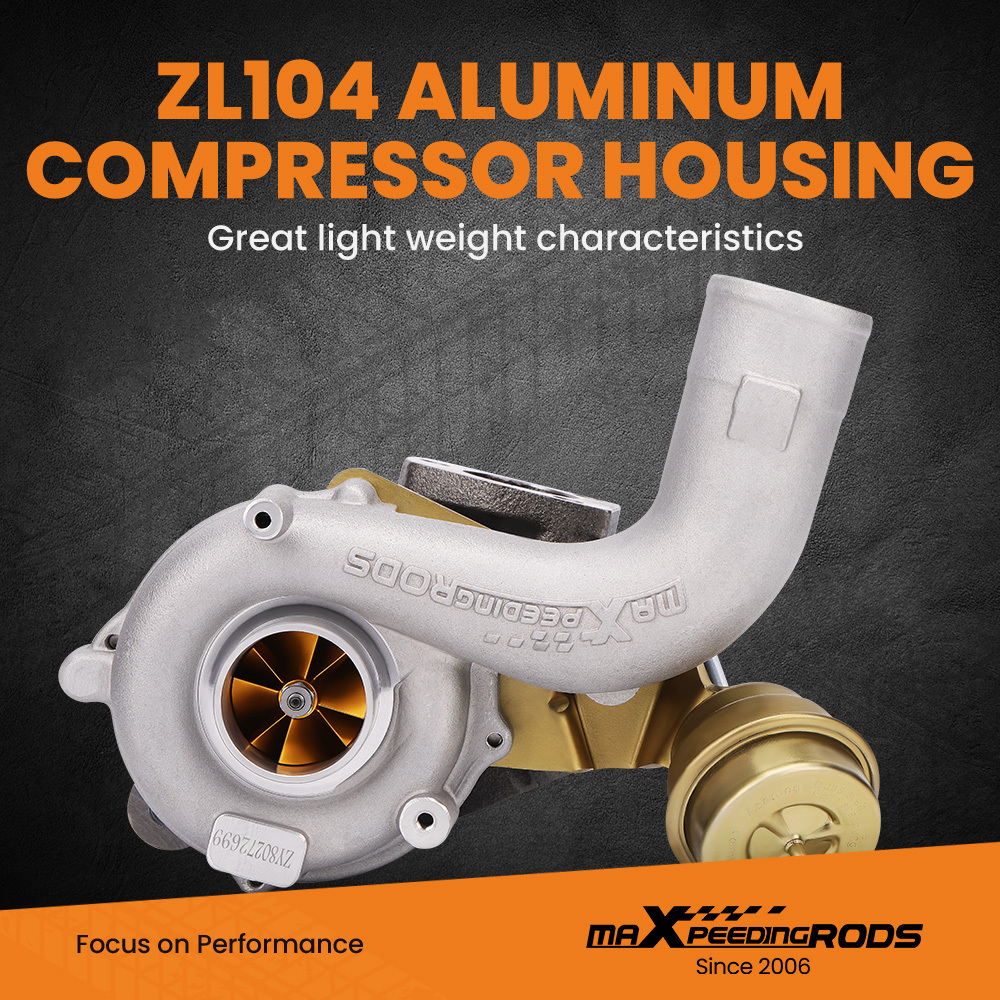

3. Compressor housing：ZL104 aluminum with lightweight

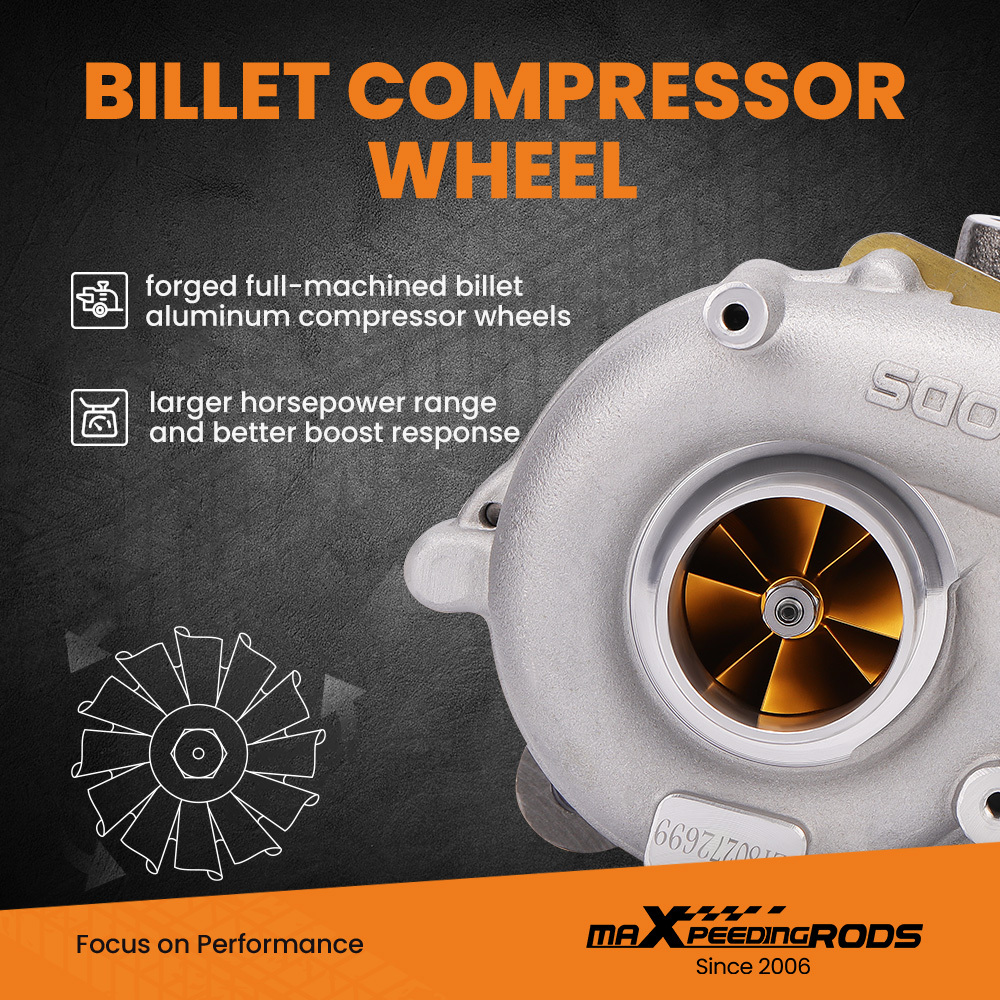

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product Performance

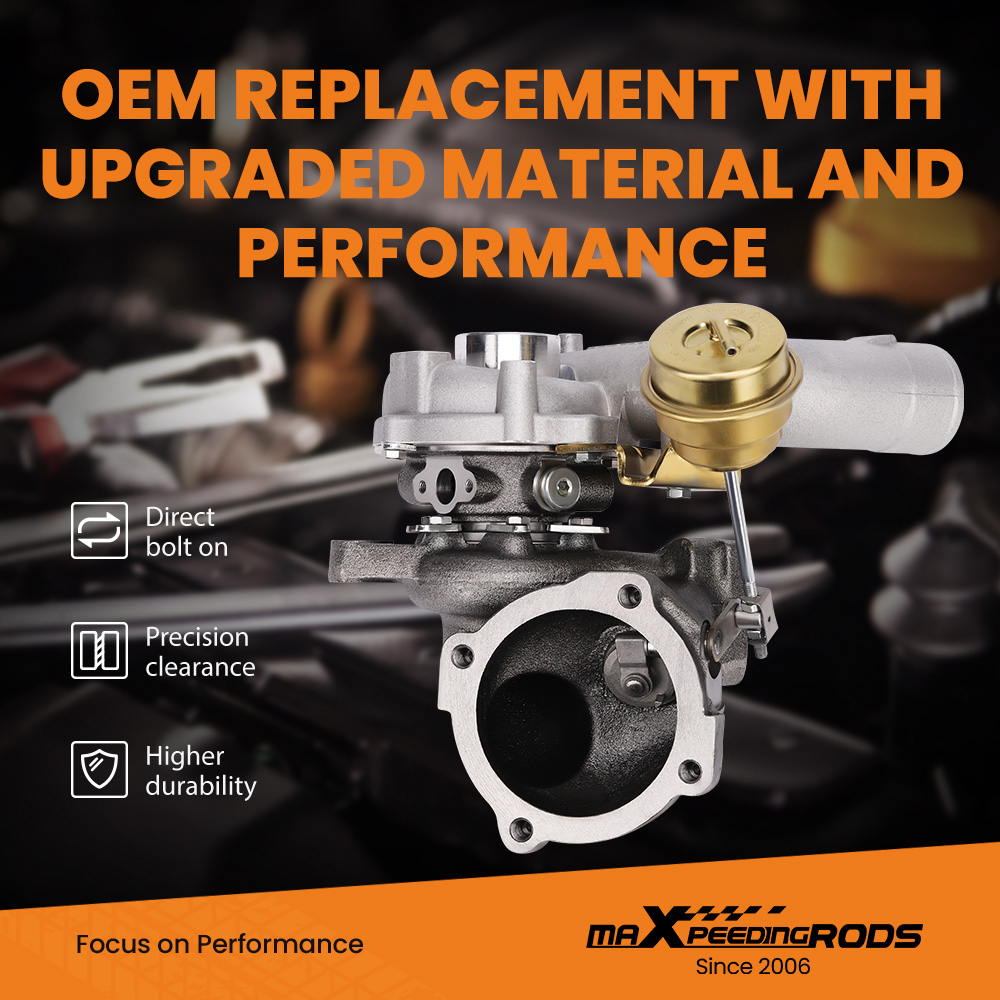

1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability

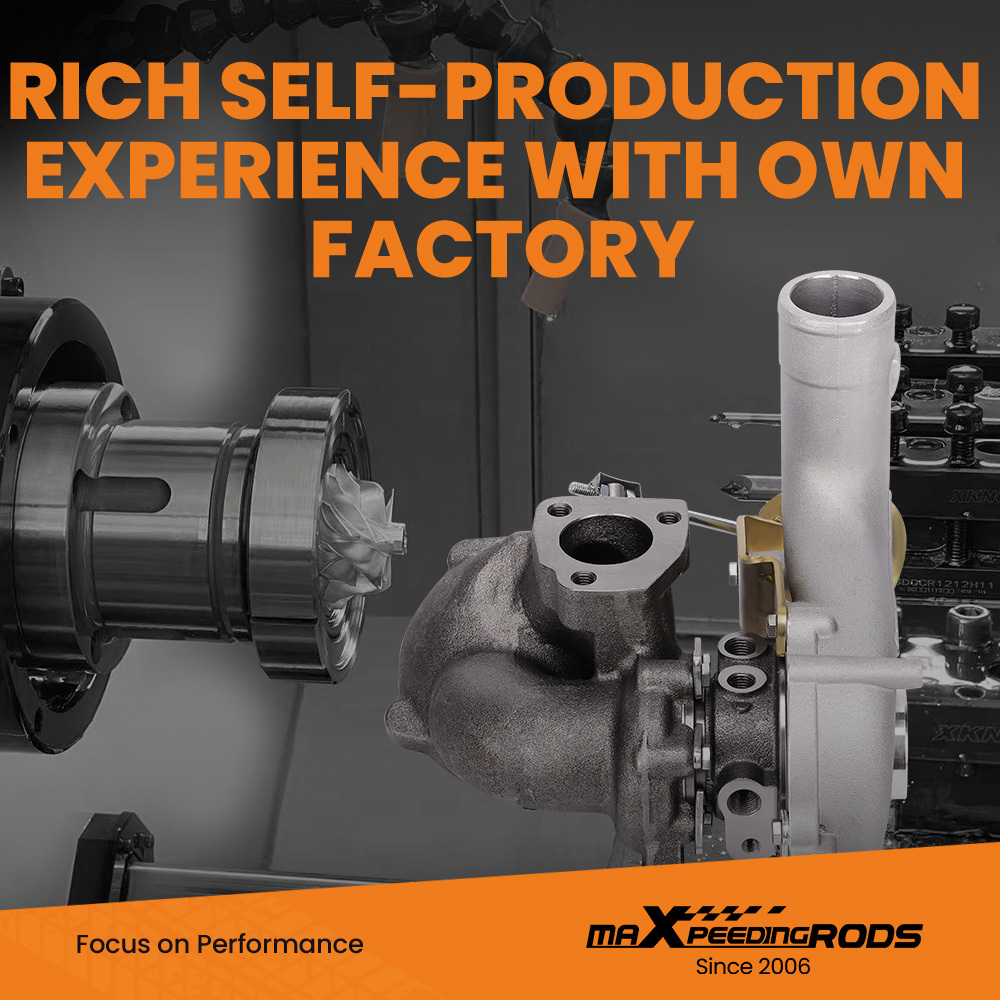

3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

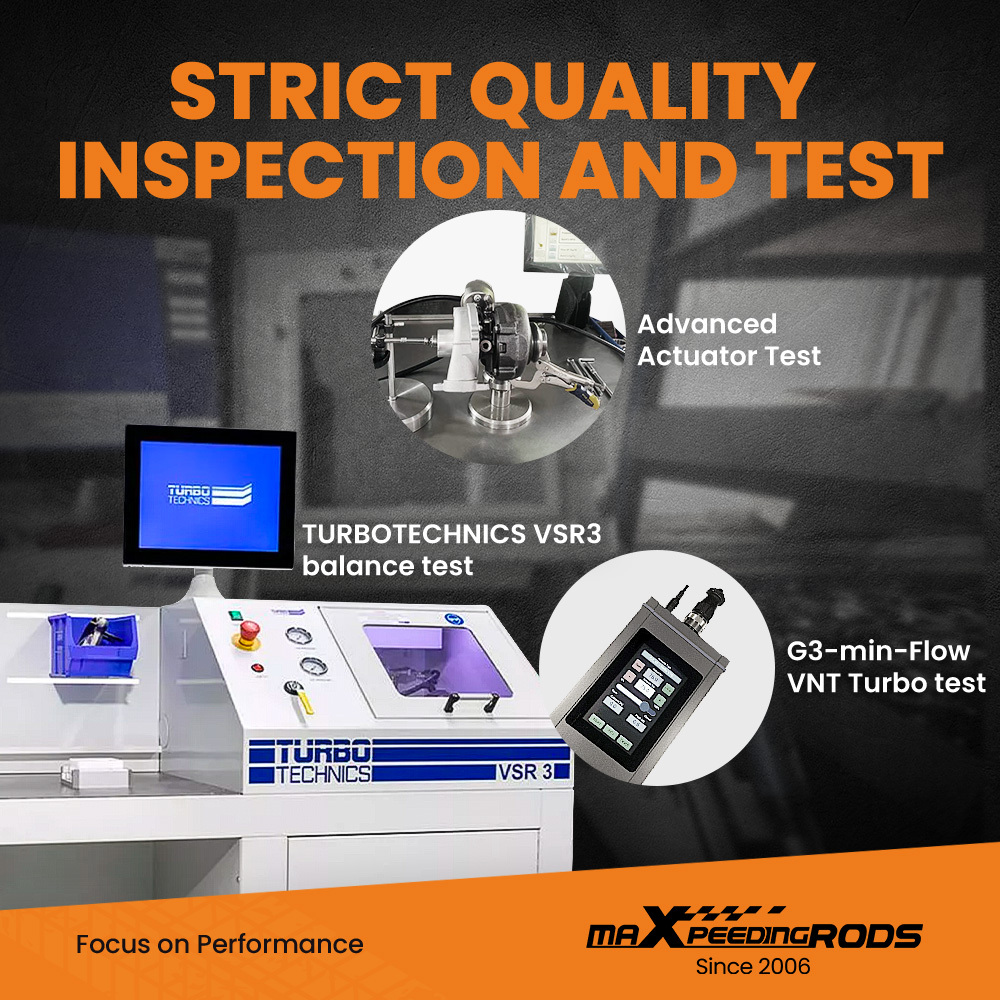

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

description

K04 Billet Wheel Turbocharger compatibile per Audi Compatibile per VW Compatibile per Seat Compatibile per Skoda  1.8L







Application

Compatibile per Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009
Compatibile per Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009
Compatibile per Volkswagen BEETLE upgraded Engine 4EB/4EA/4EC 1996-2009
Compatibile per Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009

Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04 compressor inlet is bigger than K03 model):
Compatibile per Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003
Compatibile per Audi A3 with AUQ, ARZ, APP  engine 132 KW, 180 PS 1996-2003
Compatibile per Audi TT with AUQ  engine 132 KW, 180 PS 1998-2006
Compatibile per Seat Leon with AJQ; APP; ARY; AUQ engine  132 KW, 180 PS 1998-2006
Compatibile per Skoda Octavia  AUQ engine 132 KW, 180 PS 2001–2005
Compatibile per Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine 2000-2009
Compatibile per Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05



*IMPORTANT NOTICE:
1. This is an upgraded K04 turbo for K03-053 & K03 -052.
2. K04 -001 turbo is different from K03-052 ＆ K03-053
1) some modification are needed，compressor intake size is bigger than K03-052 or K03-053
       K03-052 ＆K03-053 compressor intake size is 45mm
       K04-001 compressor intake size is 48.7mm
2) Silicone hose may need for K04-001 compressor intake connection.
3. Make sure your OE number is correct for K04-001,K03-051 and K03-053



Turbo Part Number & OEM Number

K04-001 part number/OE number:
53049500001,5304-950-0001, 5304 950 0001,
53049887501,5304-988-7501, 5304 988 7501,
06A-145-705HP, 06A145705HP

*IMPORTANT NOTICE:
This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)
K03-052 Part/OE number:
53039700052,5303 970 0052,5303-970-0052,
53039880052,5303 988 0052,5303-988-0052,
53039880094,5303 988 0094,5303-988-0094
06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX,8299299564, 8299299564,

K03-053 Part/OE number:
53039880053, 5303 970 0053, 5303-970-0053,
53039880058, 5303 988 0058, 5303-988-0058,
06A145681H, 06A145702P, 06A145704S,
06A145713B, 06A145713L, 06A145713M



Specification

Turbo Model: K04-001
Engine Model: 1.8L-5V
Engine Code:  AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type:  Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: 162KW/220PS
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:30 x 27 x 24cm
Package Weight: 6900g



Features

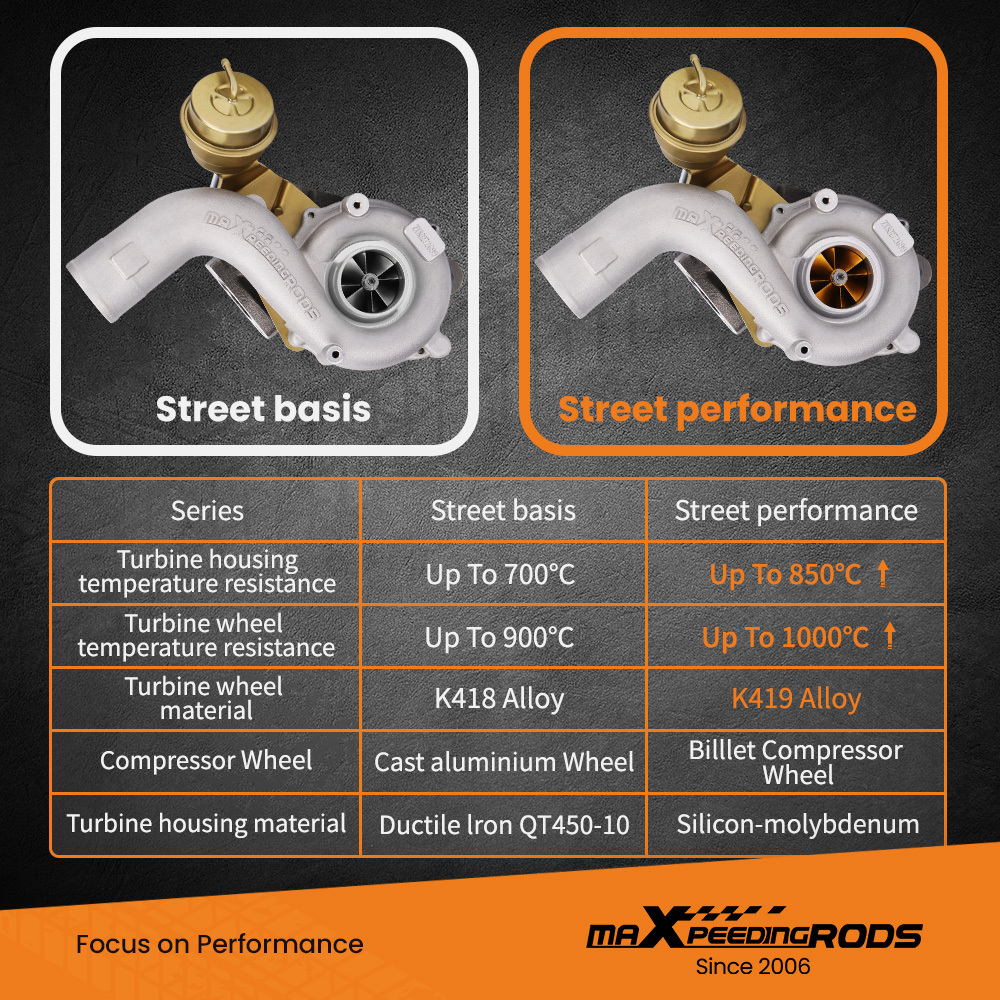

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

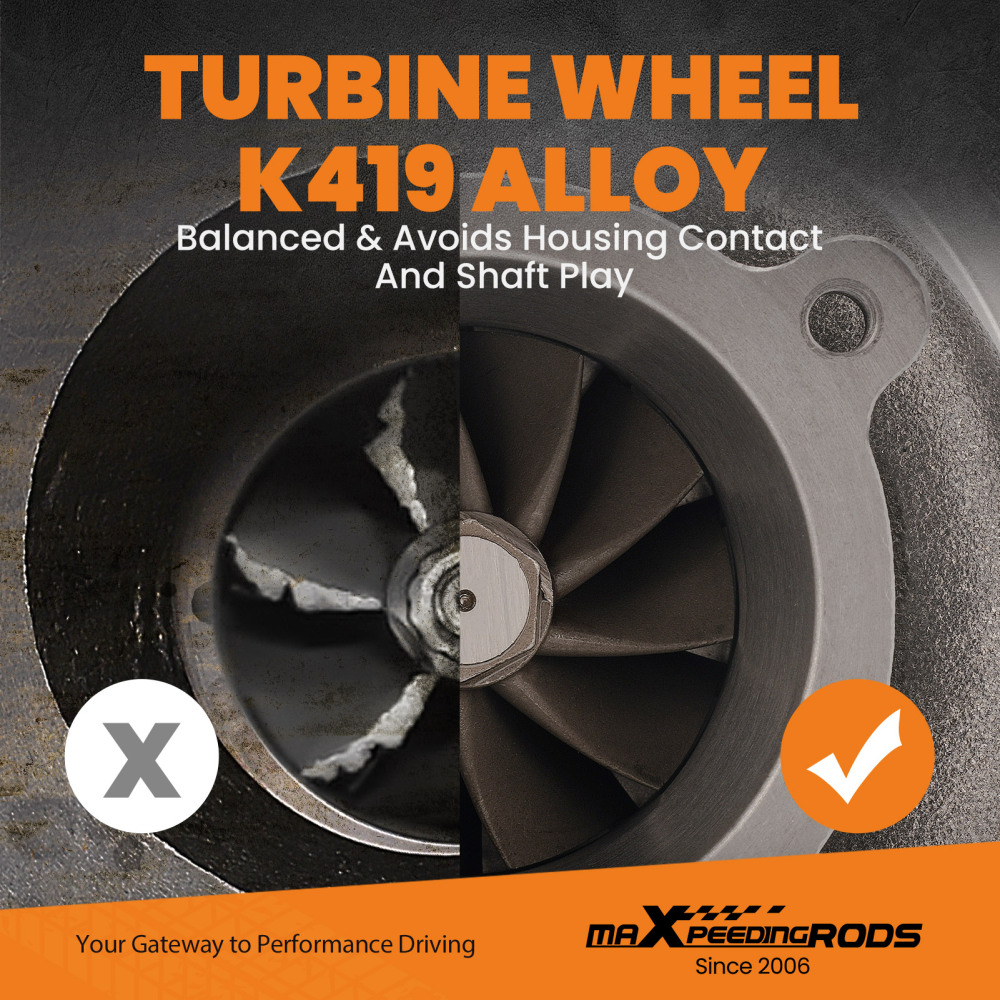

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

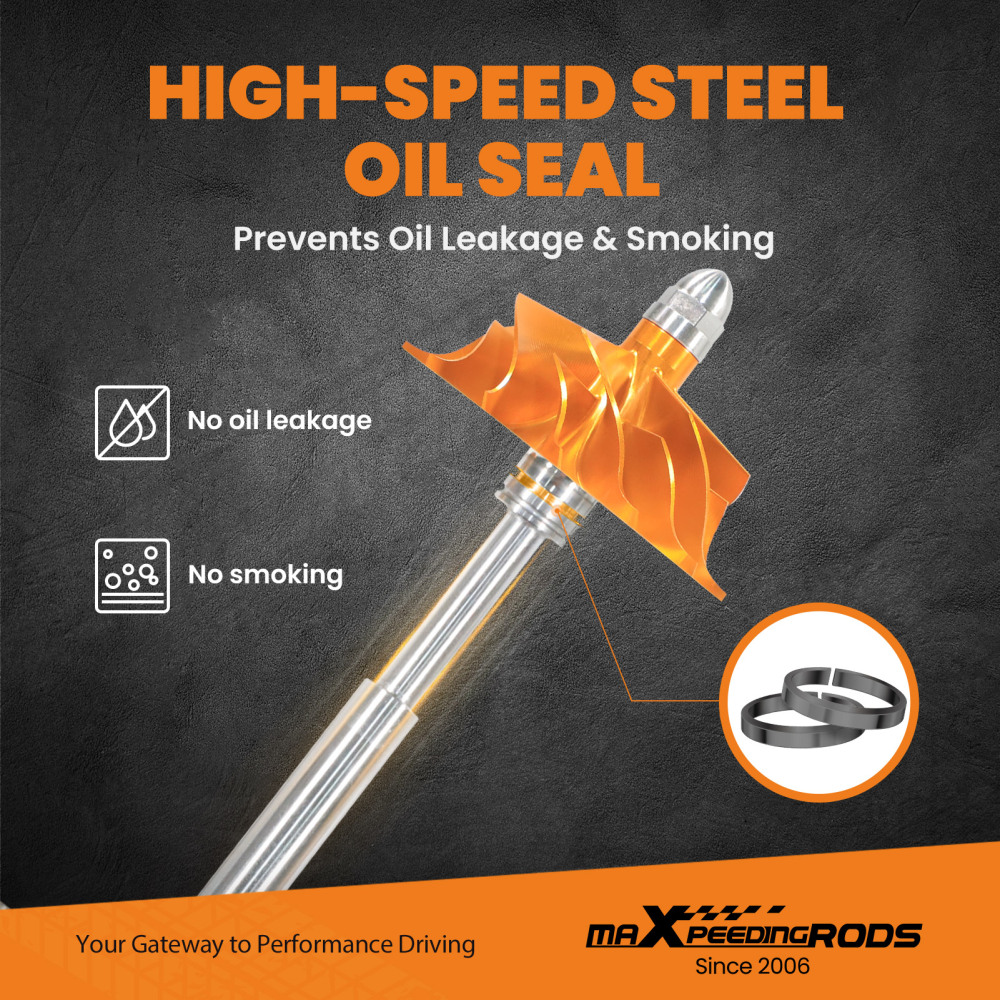

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.



Notice

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
