452204 Turbo Turbina Turbocompressore compatibile per SAAB 9.3 2.0L B205E/B235E 1998 - 2003

Application

2000-2003 compatibile per Saab 9-3 I 2.0L T Engine B205E 150 PS /110 kW
1998-2009 compatibile per Saab 9-5 2.0L T Engine B205E 150 PS /110 kW
1998–2001 compatibile per Saab 9-5 2.3L T Engine B235E 170 PS /125 kW

Note:
Don't compatibile per SAAB 9-3/ 9-5 2.0L with B204 (L/E/R),L850, B207R,B205R,B253R engine.
Don't fit fot compatibile per SAAB 9-5 3.0L with B308E, B308 V6 Engine
Don't fit fot compatibile per SAAB 9-5 2.3L Sedan/Aero/Viggen with B253R engine

OE/Part number

452204-0001,452204-0003,452204-0004,452204-0005,452204-0007,
452204-5001S.452204-5003S.452204-5004S.452204-5005S,.452204-5007S,
452204-1,452204-3,452204-4,452204-5,452204-7,
4522040001, 4522040003, 4522040004, 4522040005,4522040007,
4522041, 4522043, 4522044 ,4522045, 4522047
5955703,9172123,55560913,9198631,4611349,9180290

Don't fit for 49189-01800, 49189-01820,49189-01830, 9172180,55559825, 49177-06501, 708899-0001,452194-0001

Specification

Turbo Model: GT1752S （not for TD04 , GT1549 , GT20, GT2052 model）
Engine: B235E, B205E
Compressor Wheel Diameter: 38.37/52mm
Turbine Wheel Diameter: 38.1/43.3 mm
coolant ports Diameter: 14mm
Cooling Type：Water Cooling
Bearing Type: Floating Bearing
Hosepower: 150PS/ 170PS
Turbo Type: Individual
Universal Fitment: no
Finish: Matte
Condition: 100% Brand New & Factory Balance
Accessories: You will get exactly as shown in the picture above
Package Size:31*28*24cm
Package Weight: 5920g

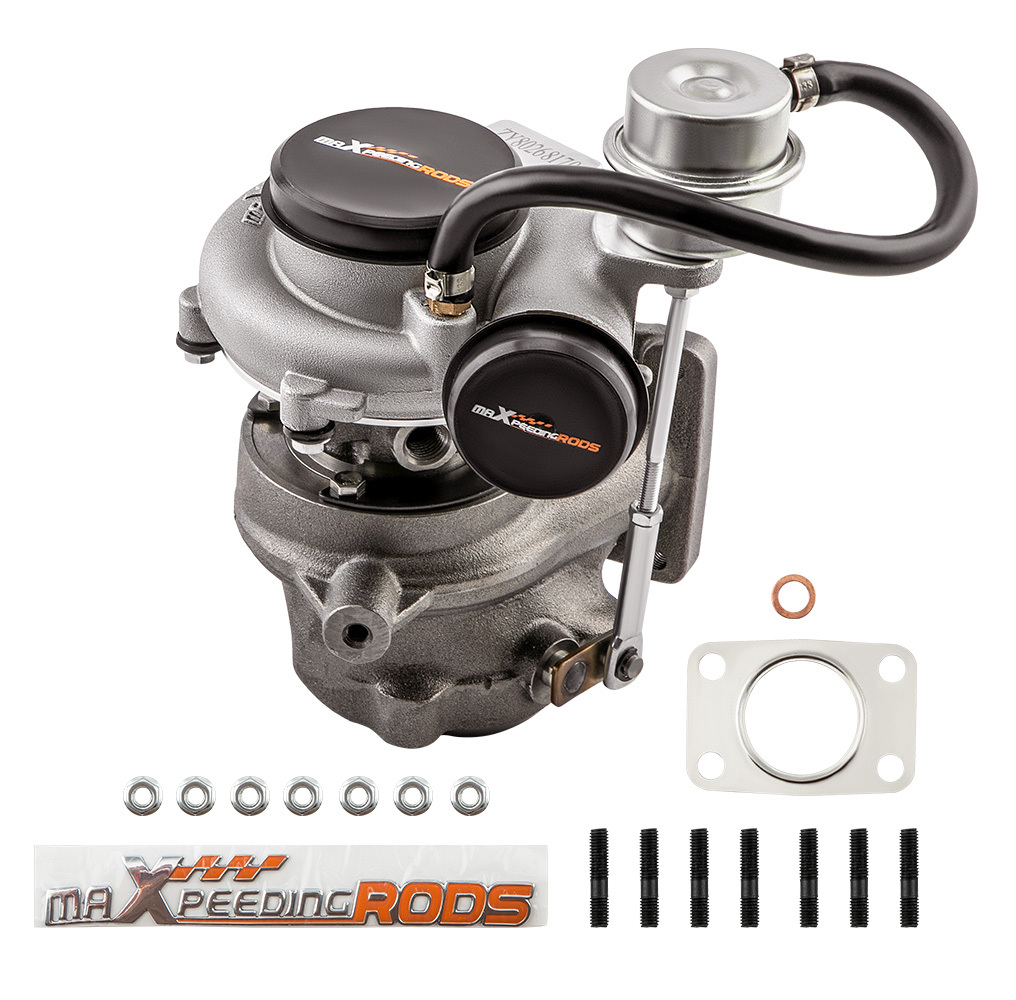

Package included

1x Turbocharger
1x Flange Gasket
7x Bolts&nuts
1x washers
1x Manual
1x Brochure
1x Sticker

Feature

* Product Material

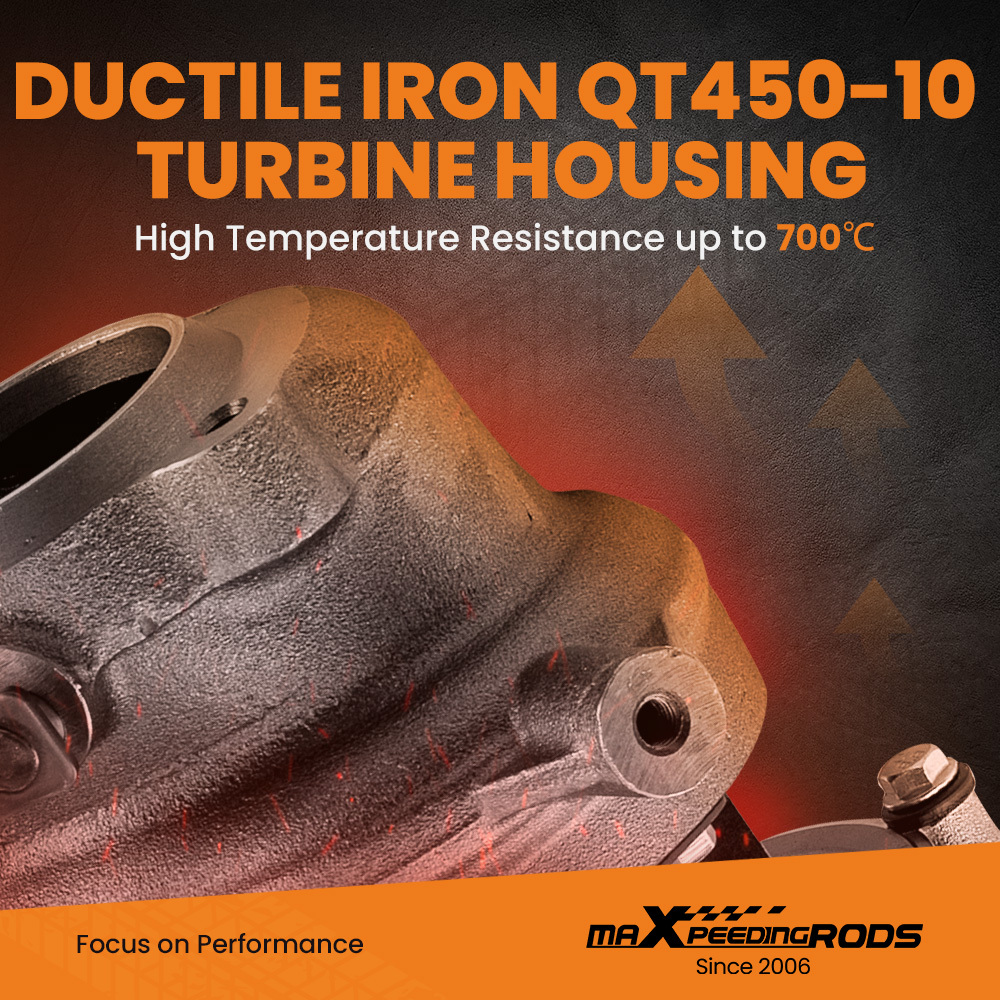

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

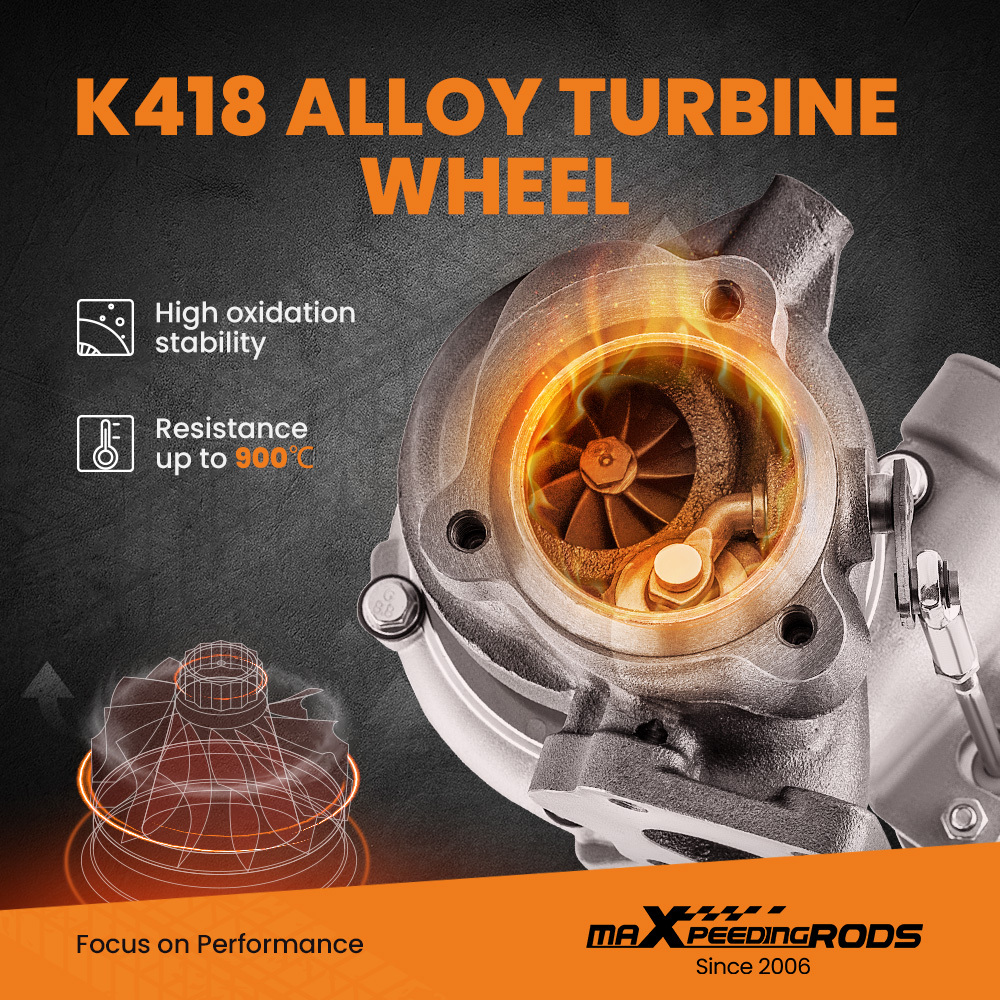

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

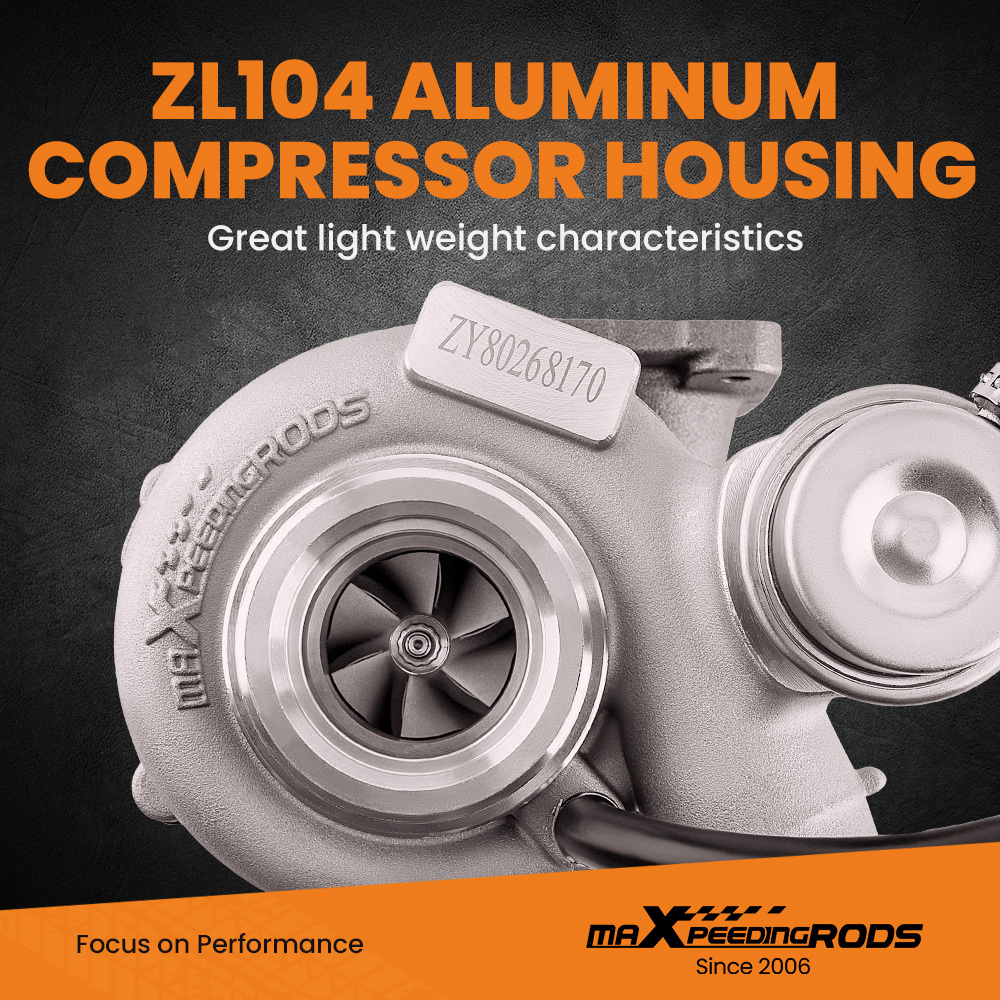

3. Compressor housing：ZL104 aluminum with lightweight

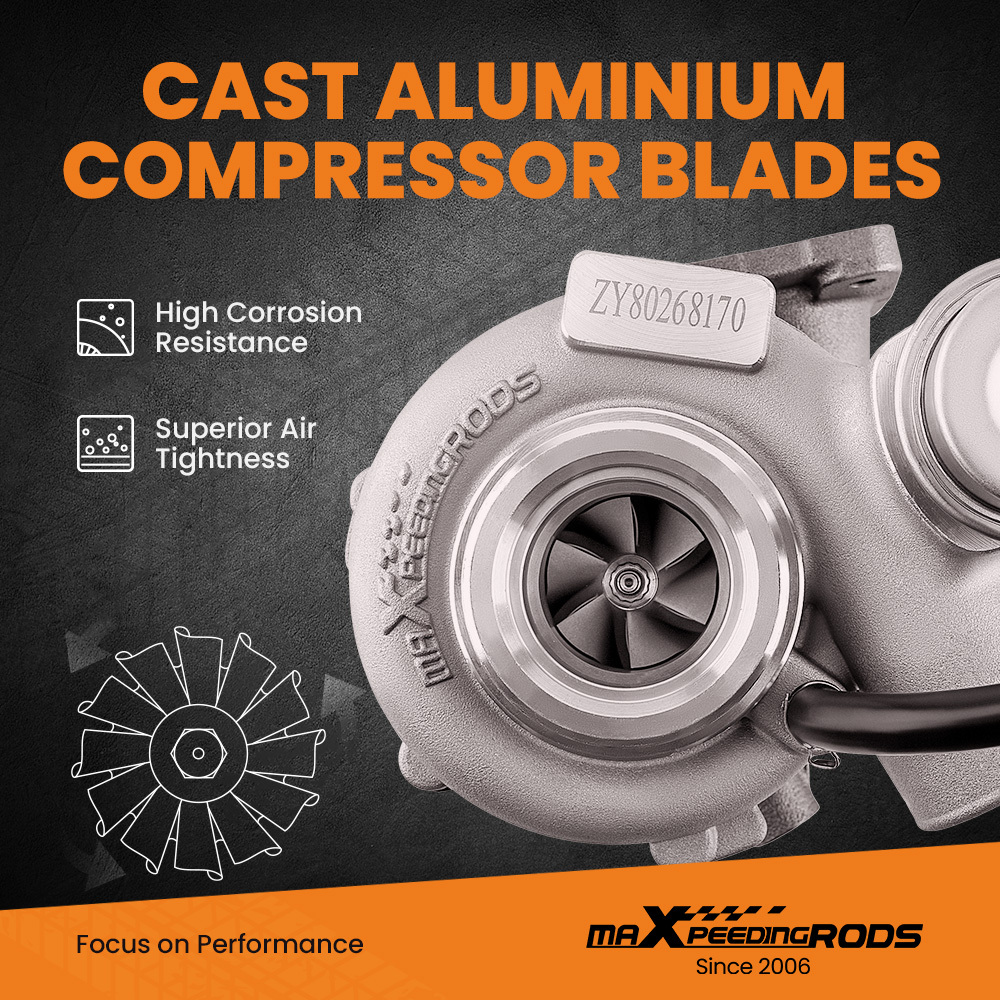

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

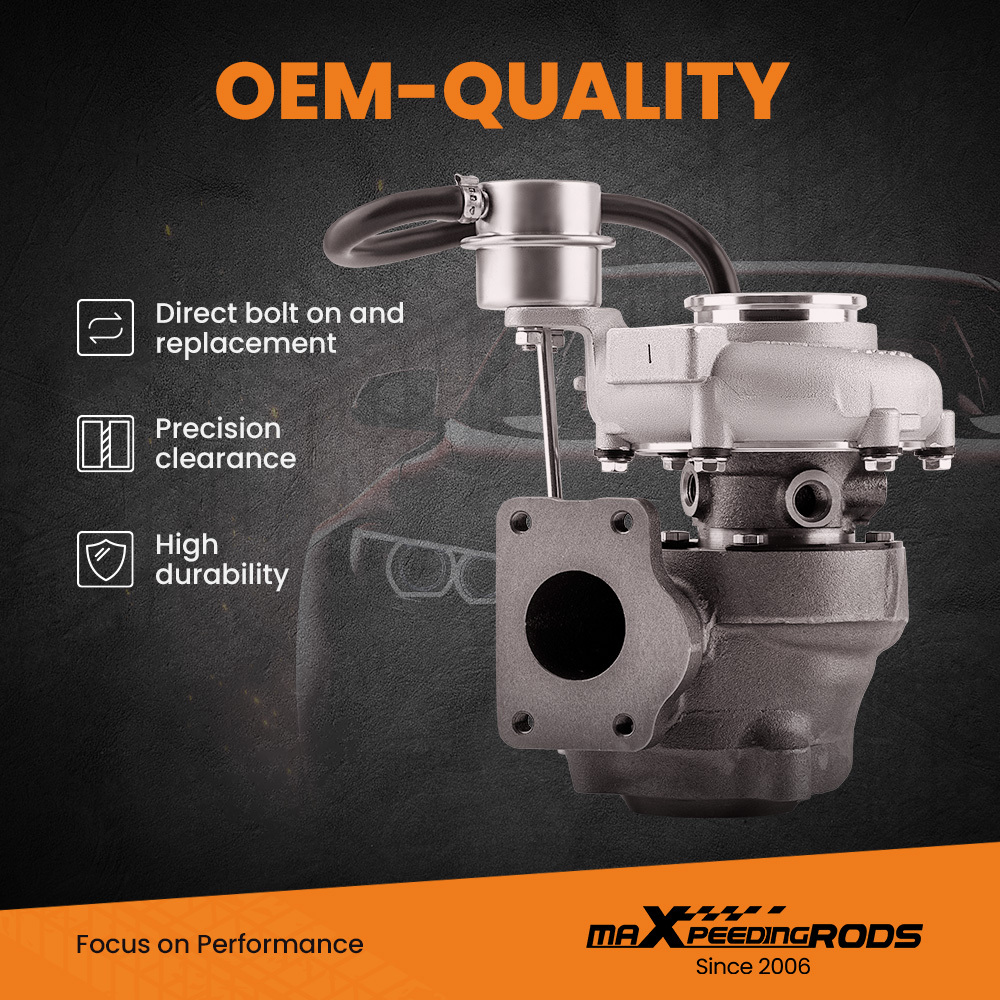

1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

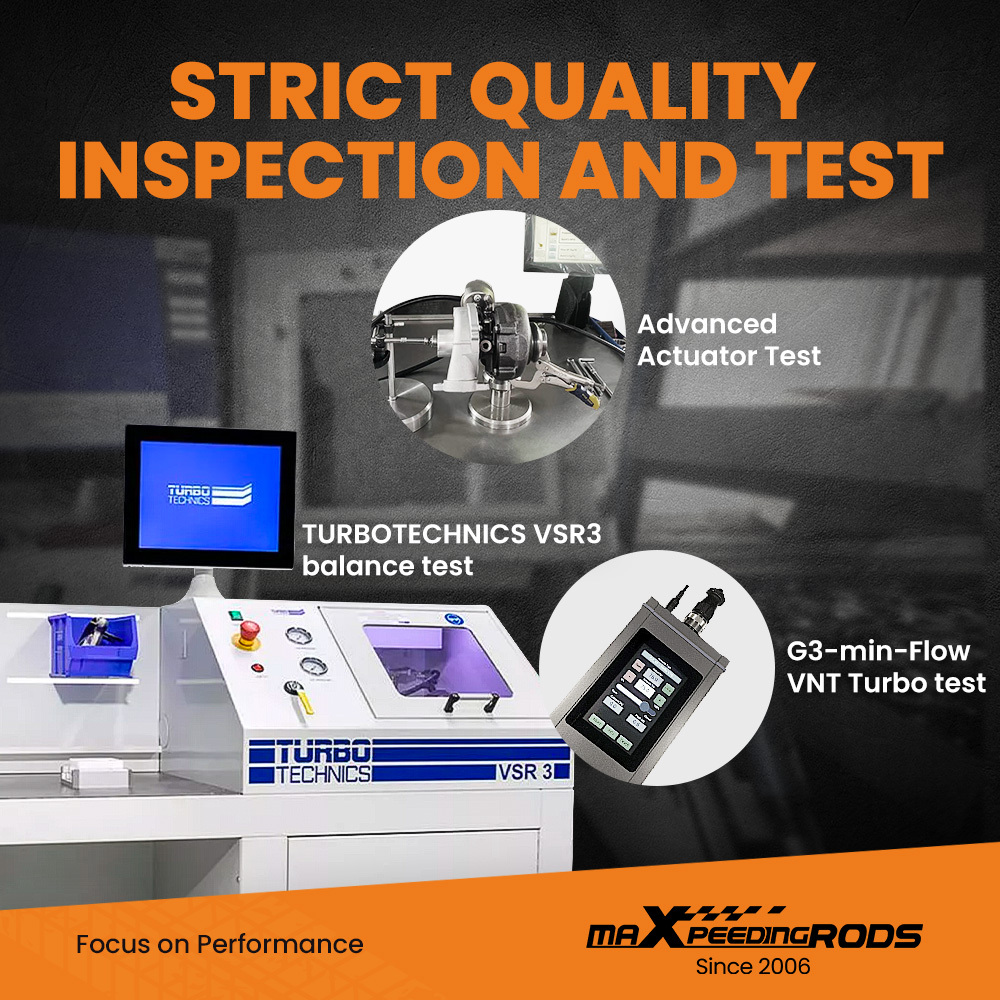

1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
